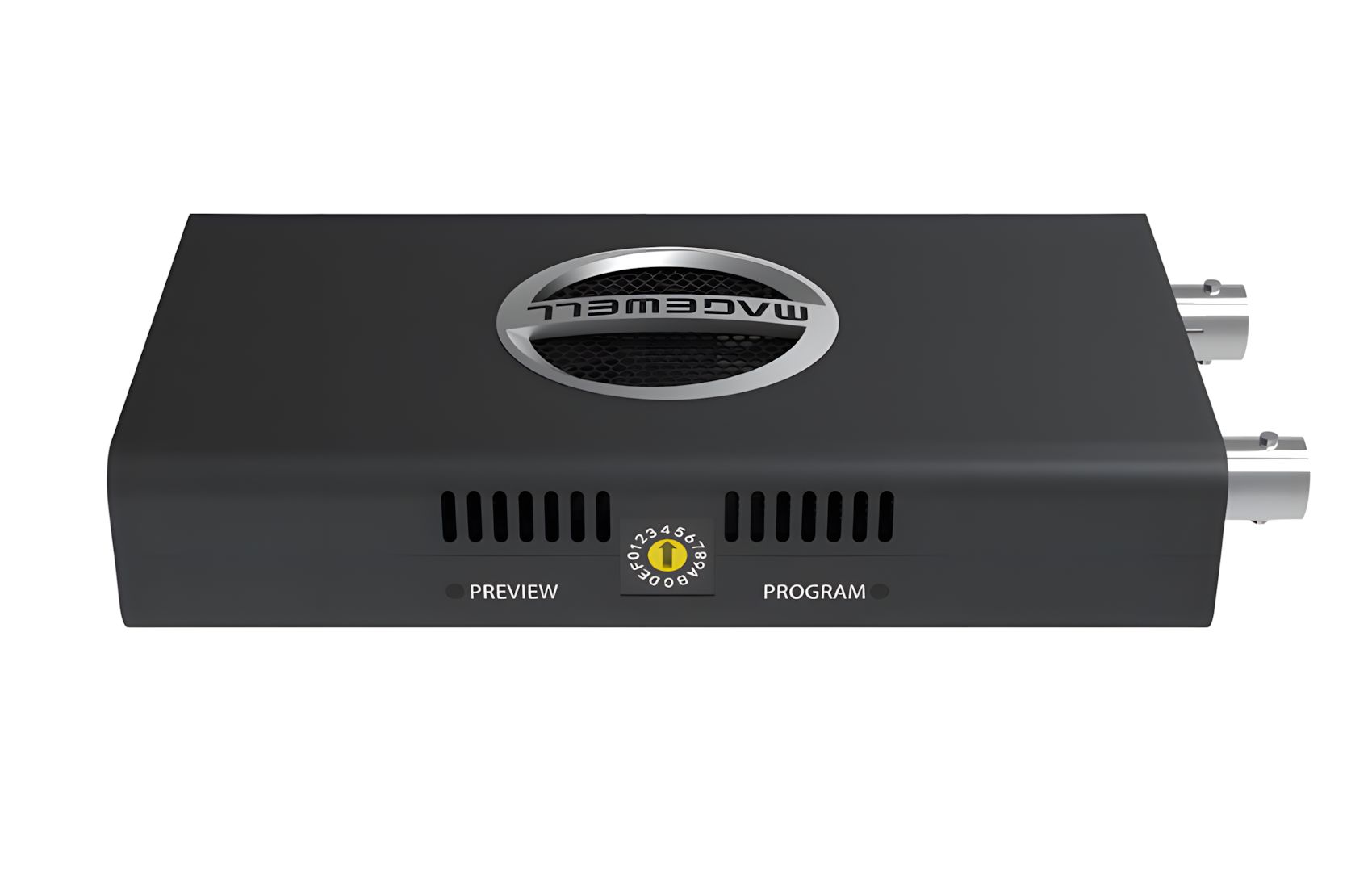

#name: "Pro SDI Plus"
#slug: "Pro SDI Plus"
#summary: """
<ul>\r\n
\t<li>\r\n
\t\tVideo Converter - Encoder</li>\r\n
\t<li>\r\n
\t\t3G-SDI input with embedded audio</li>\r\n
\t<li>\r\n
\t\tNDI stream output</li>\r\n
\t<li>\r\n
\t\t3G-SDI Loop output</li>\r\n
\t<li>\r\n
\t\tMini DIN-8 PTZ & Tally</li>\r\n
\t<li>\r\n
\t\tEthernet 10/100/1000Mbps PoE</li>\r\n
\t<li>\r\n
\t\tUp to 2048x2160 50/60fps output</li>\r\n
\t<li>\r\n
\t\tHigh Quality</li>\r\n
</ul>\r\n
"""
#description: """
<div>\r\n
\t<h2>\r\n
\t\tSupported Web Browser</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tMicrosoft Internet Explorer 11</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tMicrosoft Edge</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tMozilla Firefox version 61 and above</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tGoogle Chrome version 49 and above</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tApple Safari 11.1 and above</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tOpera 55.0.2994.44 and above</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tSupported Software</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tOBS</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tXSplit</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tvMix</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVidBlasterX</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tWirecast</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tstreamstar SW</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tmimoLive</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tAny other NewTek NDI-enabled encoding or streaming software</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n

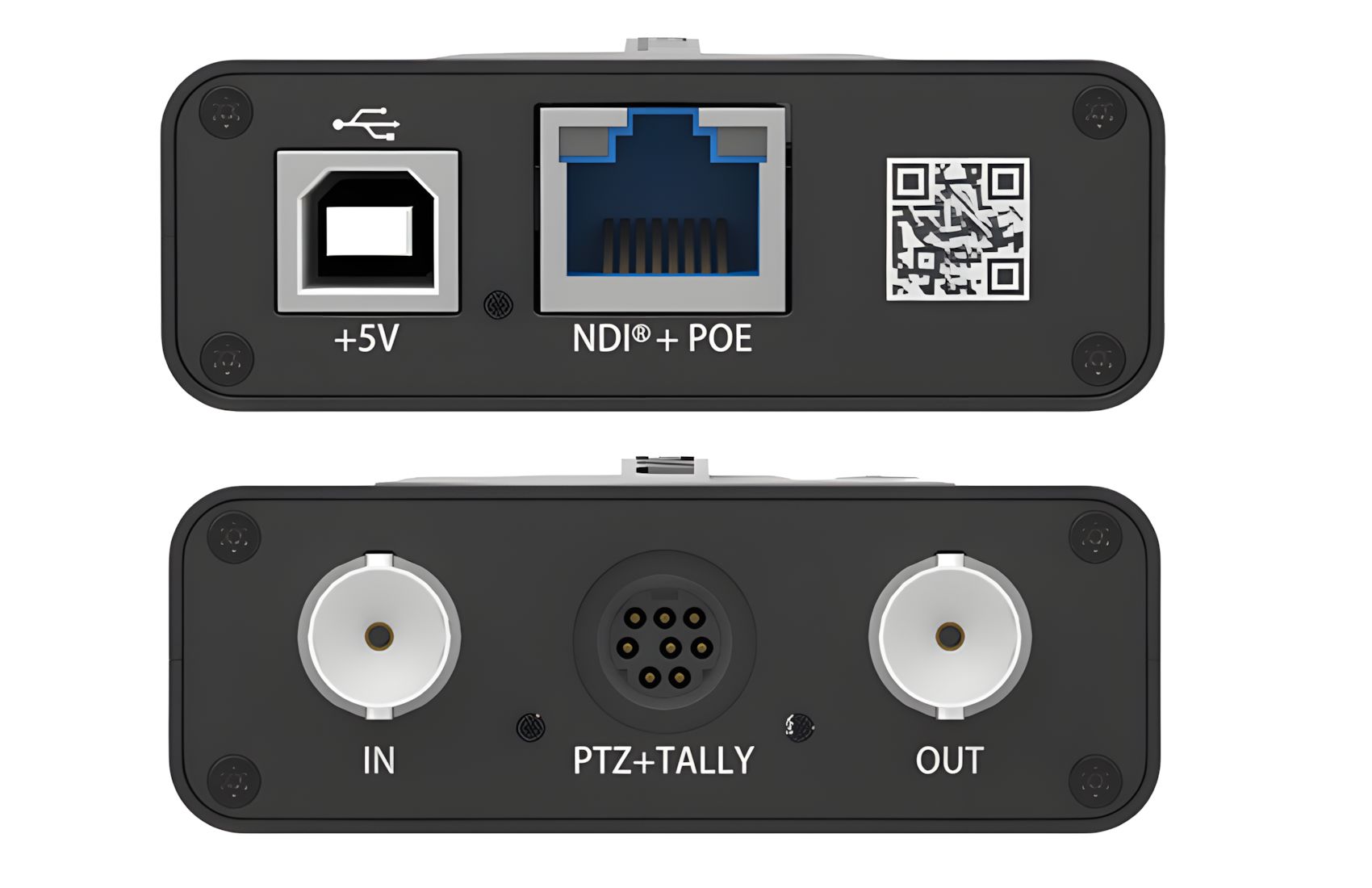

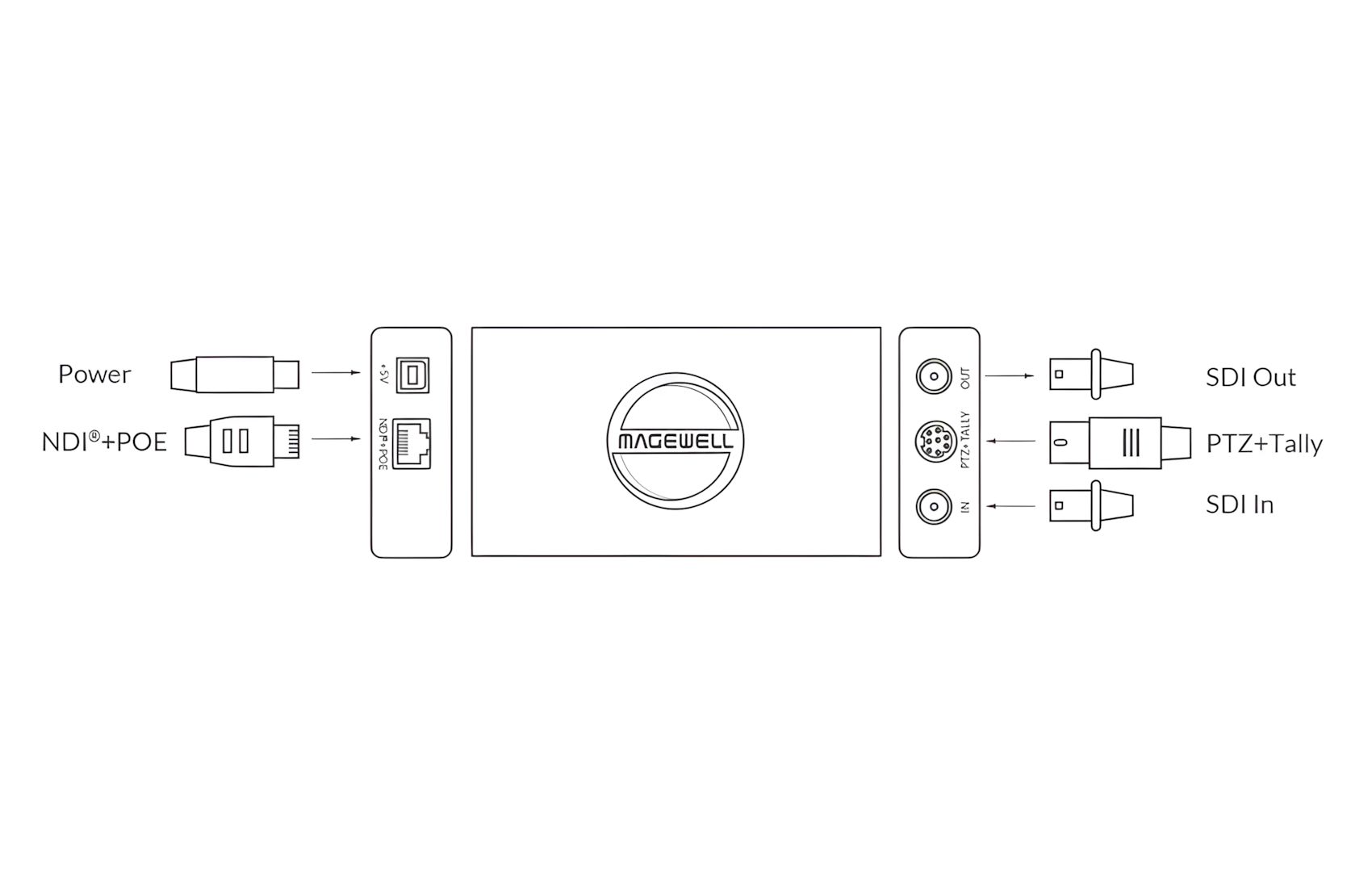

\t\tInput Interfaces</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tBNC\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSD/HD/3G SDI</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tLoop-through Interface</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tBNC\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSD/HD/3G SDI</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tStorage Interface</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSD Card (functions to be developed)</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tPTZ + TALLY Control</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tMini-DIN–8 jack</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tScrew Mounting Hole</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\t¼–20 mounting hole</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tNetwork Interfaces</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\t10/100/1000Mbps Ethernet</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tIEEE 802.3af PoE</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tUSB Interface</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tUSB2.0 Type B</li>\r\n
\t\t\t<li>\r\n
\t\t\t\t5V/2.1A power supply</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tUSB RNDIS/ECM</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tInput feature</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for up to 2048x1080 60fps input resolution</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tSDI Specific Features</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tIntegrated cable equalizer extending the cable length as follows:\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tup to 330m for SD-SDI signals</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tup to 300m for HD-SDI signals</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tup to 200m for 3G-SDI signals</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for 10/12-bit color depth</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for extraction of SMPTE 352 payload identifier</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for up to 16 (mono) audio channels</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for extraction of audio formation information & channel status data</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tLimited support of 3Gb-DS: only the first stream can be captured</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tLimited support for capture of the first link of dual link interfaces:\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tYCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tYCbCr 4:4:4 10-bit: captured as 4:2:2</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tRGB 4:4:4: R/B sub-sampled</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tNDI® Output Format</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for 4:2:2 8-bit output</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for up to 2048x1080 60fps output resolution</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for NDI 4.1</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tVideo Processing Features</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for capture resolutions up to 2048x1080</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo brightness, contrast, saturation, hue adjustment</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo de-interlacing\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tTop field only</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tBottom field only</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo aspect ratio conversion\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tAuto or manual selection of output aspect ratio</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo color format conversion\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tAuto or manual selection of input color format & quantization range</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tAuto or manual selection of output color format, quantization range & saturation range</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSupport for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSupport for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSupport for Limited or Full quantization range</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tSupport for Limited, Full & ‘Extended gamut’ saturation range</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo frame rate conversion</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tVideo mirror flip</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tNDI® Source Name</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for setting board-index, from 0 to F, through the on-board rotary switch</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tFirmware Upgrade</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tSupport for manual update using Web UI</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tLED Indicator</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tStatus LEDs indicate the working state of the device:\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tPower supply: on/off</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tTally: preview/program</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tInput signal: locked/unlocked</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tLoopthrough signal: loopthrough connected and signal detected/undetected</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tForm Factor</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\t117.5mm (L) x 66.7mm (W) x 23.4mm (H)</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tAccessories</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tUSB 2.0 A to B Cable</li>\r\n
\t\t\t<li>\r\n
\t\t\t\t5V/2.1A power adaptor</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tMini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tTally lights</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tL-bracket</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tLED matrix panel (optional)</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tPower Consumption</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\t5V max current: ~1.5A</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tMax power consumption: ~6W</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
<div>\r\n
\t<h2>\r\n
\t\t<br />\r\n
\t\tWorking Environment</h2>\r\n
\t<div>\r\n
\t\t<ul>\r\n
\t\t\t<li>\r\n
\t\t\t\tOperating temperature: 0 to 45 deg C</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tStorage temperature: –20 to 70 deg C</li>\r\n
\t\t\t<li>\r\n
\t\t\t\tRelative Humidity: 5% to 90% non-condensing</li>\r\n
\t\t</ul>\r\n
\t</div>\r\n
</div>\r\n
"""
#status: App\Enum\ProductStatus {#1864
+name: "New"
+value: "new"
}
#warehouseStock: App\Entity\Product\WarehouseStock {#1878
#warehouse: App\Enum\Warehouse {#1880
+name: "Eshop"
+value: "eshop"
}
#quantity: 0
#reserved: 0
#targetStock: null
#immutable: false
}
#keywords: array:3 [
0 => "Pro"
1 => "SDI"
2 => "Plus"
]
#generalComments: null
#published: true
#featured: false
#sku: "Pro SDI Plus"
#mfrCode: "64040"
#blkCode: "406-0009"
#eanCode: null
#supplierCode: "64040"
#type: Proxies\__CG__\App\Entity\Product\ProductType {#1923
-id: 22
-migrationId: ? ?int
-softoneId: ? ?int
-name: ? string
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1926
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#volumetricWeight: null
#views: 5
#sales: 0
#createdAt: DateTimeImmutable @1392496740 {#1856
date: 2014-02-15 22:39:00.0 Europe/Athens (+02:00)
}
#mainImage: Proxies\__CG__\App\Entity\Common\Files\ProductImage {#1941
#id: 44715
#path: ? string
#name: ? string
#mimeType: ? string
#size: ? int
#uploadedAt: ? ?DateTimeImmutable
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1942
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#locale: null
#supplierUrl: "http://www.magewell.com/tech-specs/pro-convert-sdi-plus"
#inTheBoxText: """
<ul>\r\n
\t<li>\r\n
\t\tConverter</li>\r\n
\t<li>\r\n
\t\tPower adapter</li>\r\n
</ul>\r\n
"""
#priceGross: App\Entity\Common\Price {#1883
-amount: 57516
-currency: "EUR"
}
#onlineDiscountPercentage: 4
#priceWithDiscount: App\Entity\Common\Price {#1885
-amount: 55215
-currency: "EUR"
}
-availability: App\Enum\ProductAvailability {#1872
+name: "FifteenDays"
+value: "15_business_days"
}
#availableAt: null
#offer: false
#cashBack: false
#askForPrice: false
#manufacturer: Proxies\__CG__\App\Entity\Product\ProductManufacturer {#1955
-id: 193
-customId: ? ?string
-softoneId: ? ?int
-name: ? string
-slug: ? string
-url: ? string
-email: ? string
-published: ? bool
-officialDealer: ? bool
-europeanSupport: ? bool
-discountPercent: ? int|float|null
-extraDiscount: ? int|float|null
-logo: ? App\Entity\Common\Files\ManufacturerLogo
-products: ? Doctrine\Common\Collections\Collection
-rentals: ? Doctrine\Common\Collections\Collection
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1952
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
-variantGroup: null
#productCategories: Doctrine\ORM\PersistentCollection {#2000
#collection: Doctrine\Common\Collections\ArrayCollection {#2001
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1390 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1980 …}
}
#extraWebsites: Doctrine\ORM\PersistentCollection {#2021
#collection: Doctrine\Common\Collections\ArrayCollection {#2022
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1391 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2002 …}
}
#images: Doctrine\ORM\PersistentCollection {#2023
#collection: Doctrine\Common\Collections\ArrayCollection {#2024
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1392 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1191 …}
}
-attributes: Doctrine\ORM\PersistentCollection {#2057
#collection: Doctrine\Common\Collections\ArrayCollection {#2058
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1396 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2025 …}
}
-priceUrl: "http://www.magewell.com/tech-specs/pro-convert-sdi-plus"
-priceComments: "MVD Europe B.V. RESELLERS IN EURO DISC:0%, KERD:30% - EKT:0% - MET:25E"
-originalPrice: App\Entity\Common\Price {#1900
-amount: 42320
-currency: "EUR"
}
-supplierDiscount: 0
-specialDiscount: 0
-supplierShippingValue: App\Entity\Common\Price {#1901
-amount: 2500
-currency: "EUR"
}
-customsChargesPercentage: 0
-markupPercentage: 30
-packageDimensions: App\Entity\Product\Object\Dimensions {#1903
-lengthMm: 117
-widthMm: 66
-heightMm: 23
-details: null
-dimensionUnit: App\Enum\DimensionUnit {#1905
+name: "MILLIMETER"
+value: "mm"
}
}
-grossWeight: App\Entity\Product\Object\Weight {#1909
-grams: 480
-weightDetails: null
-weightUnit: App\Enum\WeightUnit {#1911
+name: "GRAM"
+value: "gr"
}
}
-productDimensions: null
-netWeight: null
-warranty: App\Enum\Warranty {#1890
+name: "TwoYears"
+value: "2-Years"
}
-accessories: array:1 [
"Converter" => array:1 [
0 => 8924
]
]
#references: Doctrine\ORM\PersistentCollection {#2085
#collection: Doctrine\Common\Collections\ArrayCollection {#2086
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1397 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2059 …}
}
}
BLK
