App\Entity\Product\Object\Product {#1859
#id: 8924
#customId: "8832113540"
#softoneId: null
#name: "Pro NDI to AIO"
#slug: "Pro NDI to AIO"
#summary: """
<ul>\r\n
\t<li>\r\n
\t\tVideo Converter - Decoder</li>\r\n
\t<li>\r\n
\t\tNDI Stream input</li>\r\n
\t<li>\r\n
\t\tSDI + HDMI output with? Audio</li>\r\n
\t<li>\r\n
\t\tNDI + POE</li>\r\n
\t<li>\r\n
\t\tUSB interface</li>\r\n
\t<li>\r\n
\t\t5V Power DC input</li>\r\n
\t<li>\r\n
\t\tEthernet 10/100/1000Mbps PoE</li>\r\n
\t<li>\r\n
\t\tUp to 1920x1080 50/60P?</li>\r\n
</ul>\r\n
"""

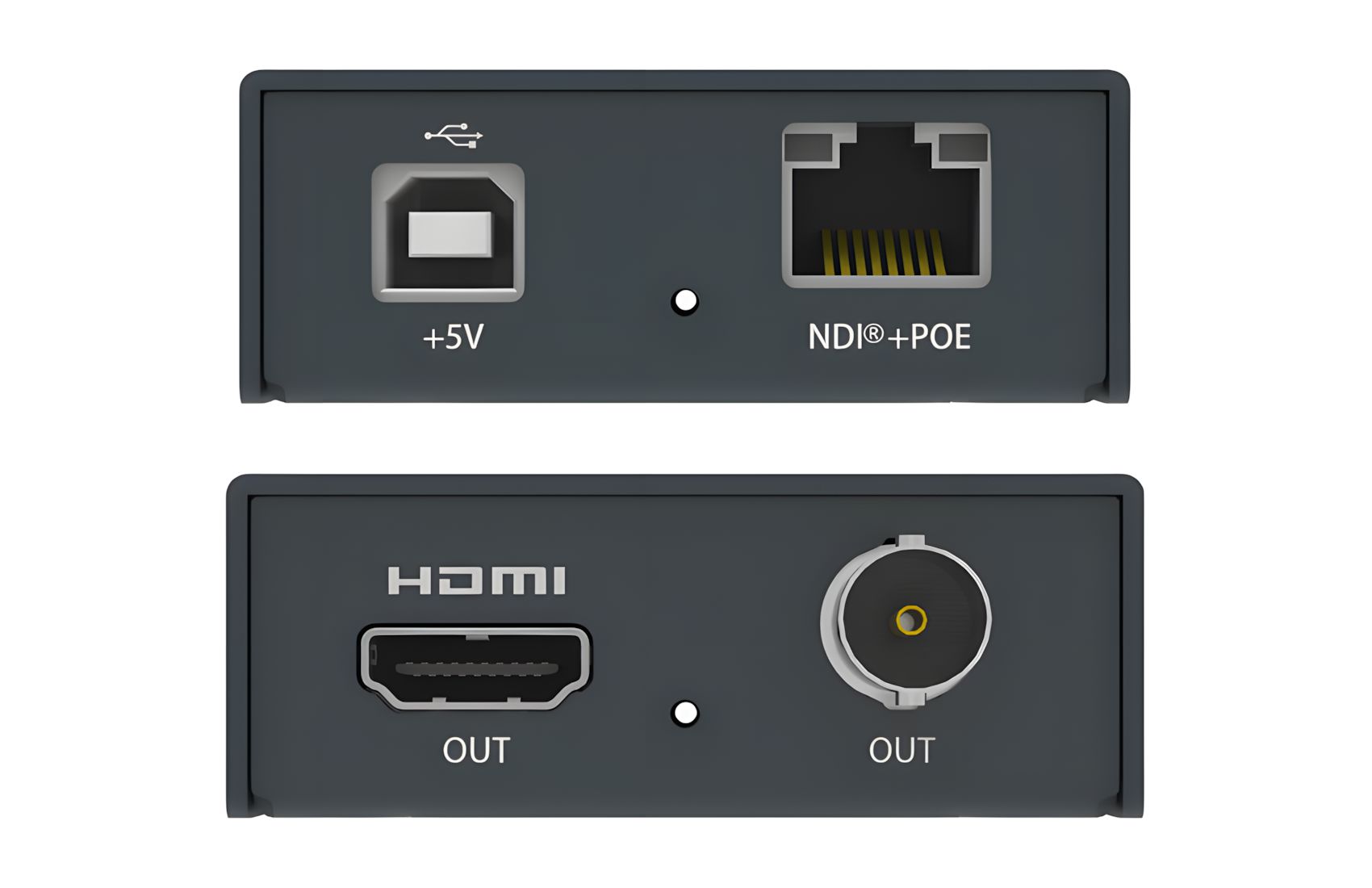

#description: """
<div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\tHDMI Output</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tHDMI interface: DVI-D 1.0/HDMI 1.4</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMax output: 1920x1080p60</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tDelivery videos within 2K at the preferred video format according to the EDID of the connected monitor</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport YUV BT.601, YUV BT.709 signal</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport 48KHz 16bits 8-channel audio output</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tSDI Output</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tBNC: SD/HD/3G SDI</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMax output: 1920x1080p60. Supported output formats are:\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t1920x1080p60/59.94/50/30/29.97/25/24/23.98</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t1920x1080i60/59.94/50</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t720p60/59.94/50/30/29.97/25/24/23.98</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t720x576i50</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t720x480i59.94</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport YUV BT.601, YUV BT.709 signal</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport 48KHz 16bits 8-channel audio output</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tOutput SDI signal and transmitted distances are as follows:\r\n
\t\t\t\t\t<table>\r\n
\t\t\t\t\t\t<tbody>\r\n
\t\t\t\t\t\t\t<tr>\r\n
\t\t\t\t\t\t\t\t<th>\r\n
\t\t\t\t\t\t\t\t\tSignal</th>\r\n
\t\t\t\t\t\t\t\t<th colspan="2">\r\n
\t\t\t\t\t\t\t\t\tDistance</th>\r\n
\t\t\t\t\t\t\t</tr>\r\n
\t\t\t\t\t\t\t<tr>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\tSD-SDI</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t200m</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t656ft</td>\r\n
\t\t\t\t\t\t\t</tr>\r\n
\t\t\t\t\t\t\t<tr>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\tHD-SDI</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t150m</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t492ft</td>\r\n
\t\t\t\t\t\t\t</tr>\r\n
\t\t\t\t\t\t\t<tr>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t3G-SDI</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t120m</td>\r\n
\t\t\t\t\t\t\t\t<td>\r\n
\t\t\t\t\t\t\t\t\t394ft</td>\r\n
\t\t\t\t\t\t\t</tr>\r\n
\t\t\t\t\t\t</tbody>\r\n
\t\t\t\t\t</table>\r\n
\t\t\t\t</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tDecoding Features</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport decoding 1080p60 streamings of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSimultaneously decode and output HDMI and SDI signals</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport for NDI 4.5</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport for H.264/H.265 video decoders</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport for AAC/MP3 audio decoders</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tWeb GUI Management</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tProvide comprehensive information regarding the device and input signals in real-time</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tAllow to configure how an input signal is processed and decoded, including:\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tOSD setting, deinterlacing, resolution, frame rate, AR convert, EDID</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\taudio gain, sample rate and audio channel mapping</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tnetwork connection</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tFirmware update</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport USB RNDIS/ECM</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport IE/Edge/Firefox/Chrome/Safari/Opera web browsers</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSupport with HTTP APIs</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tSupported Web Browsers</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMicrosoft Internet Explorer 11</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMicrosoft Edge</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMozilla Firefox version 61 and above</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tGoogle Chrome version 49 and above</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tApple Safari 11.1 and above</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tOpera 55.0.2994.44 and above</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n

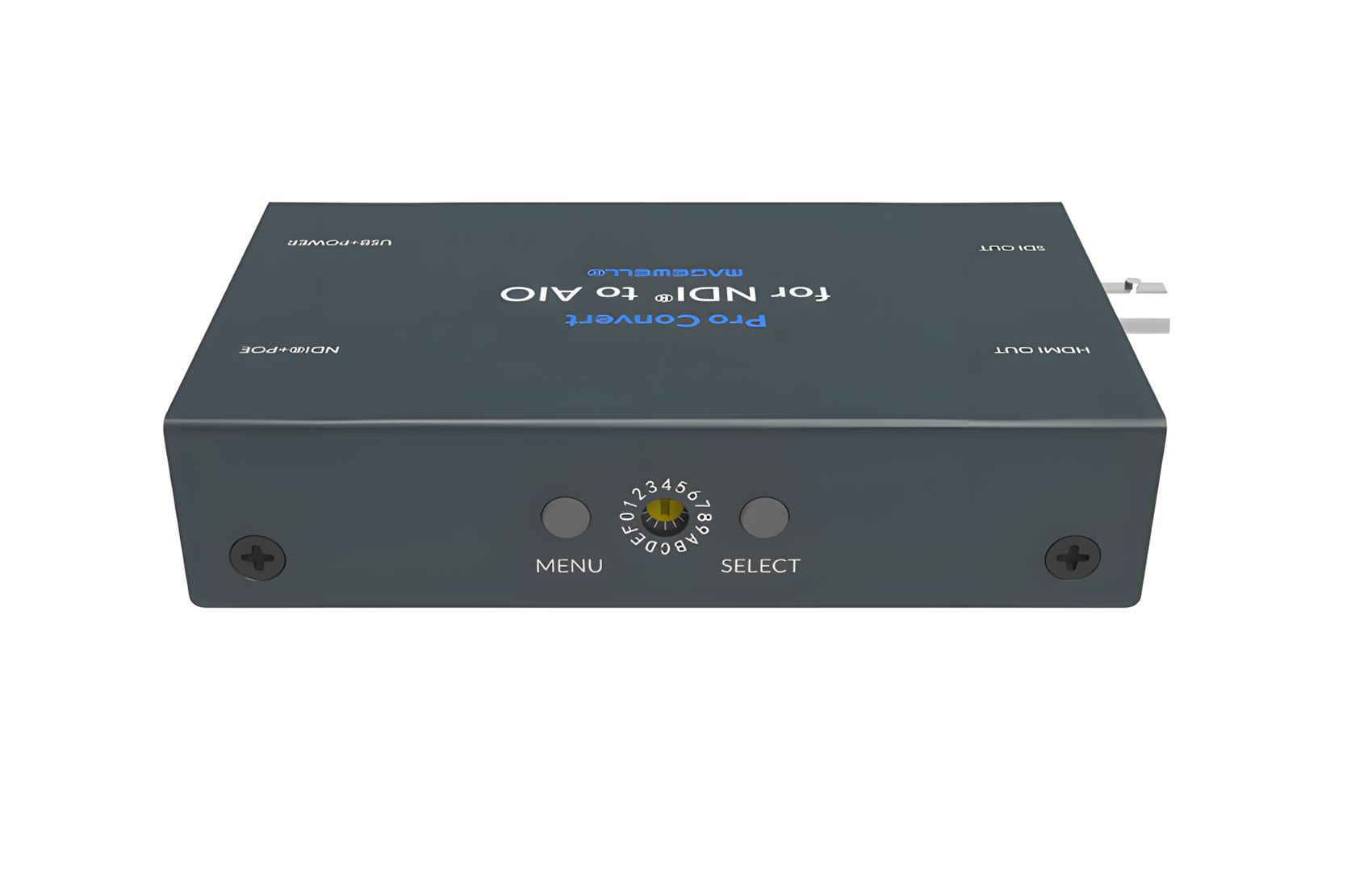

\t\t\tOn-board Control Buttons</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMENU: press to display the menu, or cycle through the options</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tSELECT: press to display the menu, enter current option, or confirm the selection</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t16 Position Rotary DIP Switch: set board-index from 0 to F</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tNetwork Interfaces</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t10/100/1000Mbps Ethernet</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tIEEE 802.3af PoE</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tUSB Interface</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tUSB2.0 Type B\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t5V/2.1A power supply</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tUSB RNDIS/ECM</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tLED Indicator</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tPower LED status indicator\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tOn: power connected</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tOff: power unconnected</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tDecode LED status indicator\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tOn: decoding in progress</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tBlinks: decoding error</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tOff: source unselected</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tForm Factor</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t100.9mm (L) x 60.2mm (W) x 23.3mm (H)</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tAccessories</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tUSB 2.0 A to B Cable</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t5V/2.1A power adaptor</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tL-bracket</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tScrew Mounting Hole</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t¼–20 mounting hole</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tPower Consumption</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\t5V max current: ~1.05A</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tMax power consumption: ~5.5W</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
\t<div>\r\n
\t\t<h2>\r\n
\t\t\t<br />\r\n
\t\t\tWorking Environment</h2>\r\n
\t\t<div>\r\n
\t\t\t<ul>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tOperating temperature: 0 to 40 deg C</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tStorage temperature: –20 to 70 deg C</li>\r\n
\t\t\t\t<li>\r\n
\t\t\t\t\tRelative Humidity: 5% to 90% non-condensing</li>\r\n
\t\t\t</ul>\r\n
\t\t</div>\r\n
\t</div>\r\n
</div>\r\n
"""
#status: App\Enum\ProductStatus {#1864
+name: "New"
+value: "new"
}
#warehouseStock: App\Entity\Product\WarehouseStock {#1878
#warehouse: App\Enum\Warehouse {#1880
+name: "Eshop"
+value: "eshop"
}
#quantity: 0
#reserved: 0
#targetStock: null
#immutable: false
}
#keywords: array:4 [
0 => "Pro"
1 => "NDI"
2 => "to"
3 => "AIO"
]
#generalComments: null
#published: true
#featured: false
#sku: "Pro NDI to AIO"
#mfrCode: "64210"
#blkCode: "406-0008"
#eanCode: null
#supplierCode: "64210"
#type: Proxies\__CG__\App\Entity\Product\ProductType {#1923
-id: 22
-migrationId: ? ?int
-softoneId: ? ?int
-name: ? string
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1926
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#volumetricWeight: null
#views: 6
#sales: 0
#createdAt: DateTimeImmutable @1392496740 {#1856
date: 2014-02-15 22:39:00.0 Europe/Athens (+02:00)
}
#mainImage: Proxies\__CG__\App\Entity\Common\Files\ProductImage {#1941
#id: 47696
#path: ? string
#name: ? string
#mimeType: ? string
#size: ? int
#uploadedAt: ? ?DateTimeImmutable
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1942
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#locale: null
#supplierUrl: "http://www.magewell.com/tech-specs/pro-convert-for-ndi-to-aio"
#inTheBoxText: """
<ul>\r\n
\t<li>\r\n
\t\tConverter</li>\r\n
\t<li>\r\n
\t\tPower adapter</li>\r\n
</ul>\r\n
"""
#priceGross: App\Entity\Common\Price {#1883
-amount: 46616
-currency: "EUR"
}
#onlineDiscountPercentage: 4
#priceWithDiscount: App\Entity\Common\Price {#1885
-amount: 44751
-currency: "EUR"
}
-availability: App\Enum\ProductAvailability {#1872
+name: "FifteenDays"
+value: "15_business_days"
}
#availableAt: null
#offer: false
#cashBack: false
#askForPrice: false
#manufacturer: Proxies\__CG__\App\Entity\Product\ProductManufacturer {#1955
-id: 193
-customId: ? ?string
-softoneId: ? ?int
-name: ? string
-slug: ? string
-url: ? string
-email: ? string
-published: ? bool
-officialDealer: ? bool
-europeanSupport: ? bool
-discountPercent: ? int|float|null
-extraDiscount: ? int|float|null
-logo: ? App\Entity\Common\Files\ManufacturerLogo
-products: ? Doctrine\Common\Collections\Collection
-rentals: ? Doctrine\Common\Collections\Collection
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1952
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
-variantGroup: null
#productCategories: Doctrine\ORM\PersistentCollection {#2000
#collection: Doctrine\Common\Collections\ArrayCollection {#2001
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1390 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1980 …}
}
#extraWebsites: Doctrine\ORM\PersistentCollection {#2021
#collection: Doctrine\Common\Collections\ArrayCollection {#2022
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1391 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2002 …}
}
#images: Doctrine\ORM\PersistentCollection {#2023
#collection: Doctrine\Common\Collections\ArrayCollection {#2024
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1392 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1191 …}
}
-attributes: Doctrine\ORM\PersistentCollection {#2057
#collection: Doctrine\Common\Collections\ArrayCollection {#2058
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1396 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2025 …}
}
-priceUrl: "http://www.magewell.com/tech-specs/pro-convert-for-ndi-to-aio"
-priceComments: "MVD Europe B.V. RESELLERS IN EURO DISC:0%, KERD:30% - EKT:0% - MET:20E"
-originalPrice: App\Entity\Common\Price {#1900
-amount: 34320
-currency: "EUR"
}
-supplierDiscount: 0
-specialDiscount: 0
-supplierShippingValue: App\Entity\Common\Price {#1901
-amount: 2000
-currency: "EUR"
}
-customsChargesPercentage: 0
-markupPercentage: 30
-packageDimensions: App\Entity\Product\Object\Dimensions {#1903
-lengthMm: 100
-widthMm: 60
-heightMm: 23
-details: null
-dimensionUnit: App\Enum\DimensionUnit {#1905
+name: "MILLIMETER"
+value: "mm"
}
}
-grossWeight: App\Entity\Product\Object\Weight {#1909
-grams: 480
-weightDetails: null
-weightUnit: App\Enum\WeightUnit {#1911
+name: "GRAM"
+value: "gr"
}
}
-productDimensions: null
-netWeight: null
-warranty: App\Enum\Warranty {#1890
+name: "TwoYears"
+value: "2-Years"
}
-accessories: array:1 [
"Converter" => array:1 [
0 => 8370
]
]
#references: Doctrine\ORM\PersistentCollection {#2085
#collection: Doctrine\Common\Collections\ArrayCollection {#2086
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1397 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2059 …}
}
}
BLK
