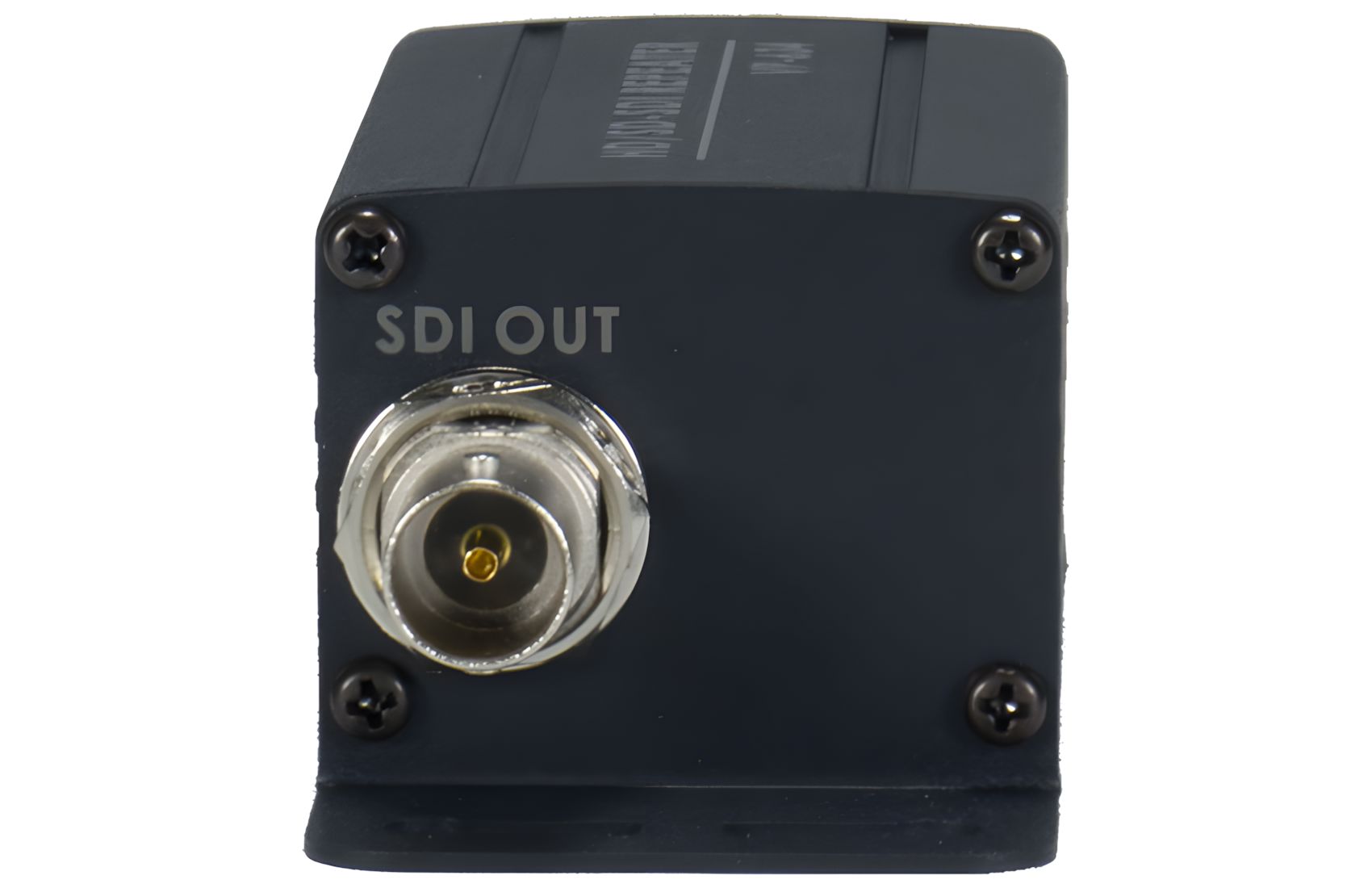

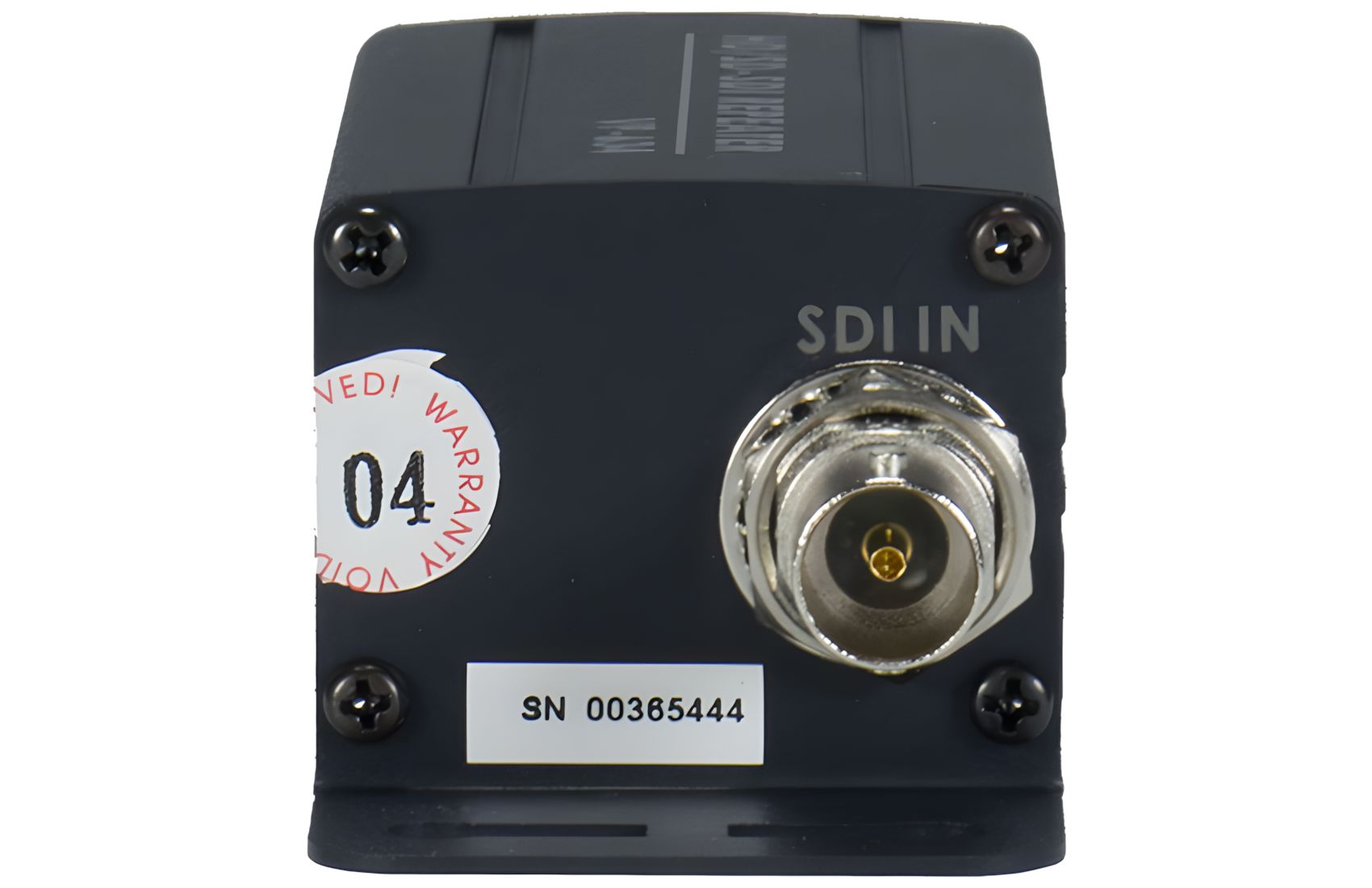

VP-634

STATUS

Status

New

Availability

Available on order: 15 Business Days

Converter Type

Digital to Digital Converter
Video Distribution Amplifier

Power Type

Passive Device (no power needed)

CONNECTIONS

Video inputs

3G/HD/SD-SDI (BNC) x1

Video outputs

3G-SDI x1

Audio inputs

Embedded audio SDI x1

Audio Output

8CH Embedded Audio SDI x1

GENERAL FEATURES

Max Resolution Supported

SD 480i NTSC
SD 576i PAL
HD 720: 1280 x 720pixels (16:9 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)

Frames Supported

25P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
50i @720x576Pixel
30P @720x480Pixel

MORE SPECIFICATIONS

Extras

1 x VP-633 with 3x VP-634 SDI repeaters can each extend the range by a further 200m (high quality SDI cable).
SDI Repeaters can be used in a chain, allowing runs of up to 1000m with good quality SDI cable.

Power

Passive device (no power needed)

Country of Origin

China

Warranty

3 Years

PHYSICAL

Total Dimensions (LxWxH)

13 x 4 x 4 cm

Total Weight

400 gr
