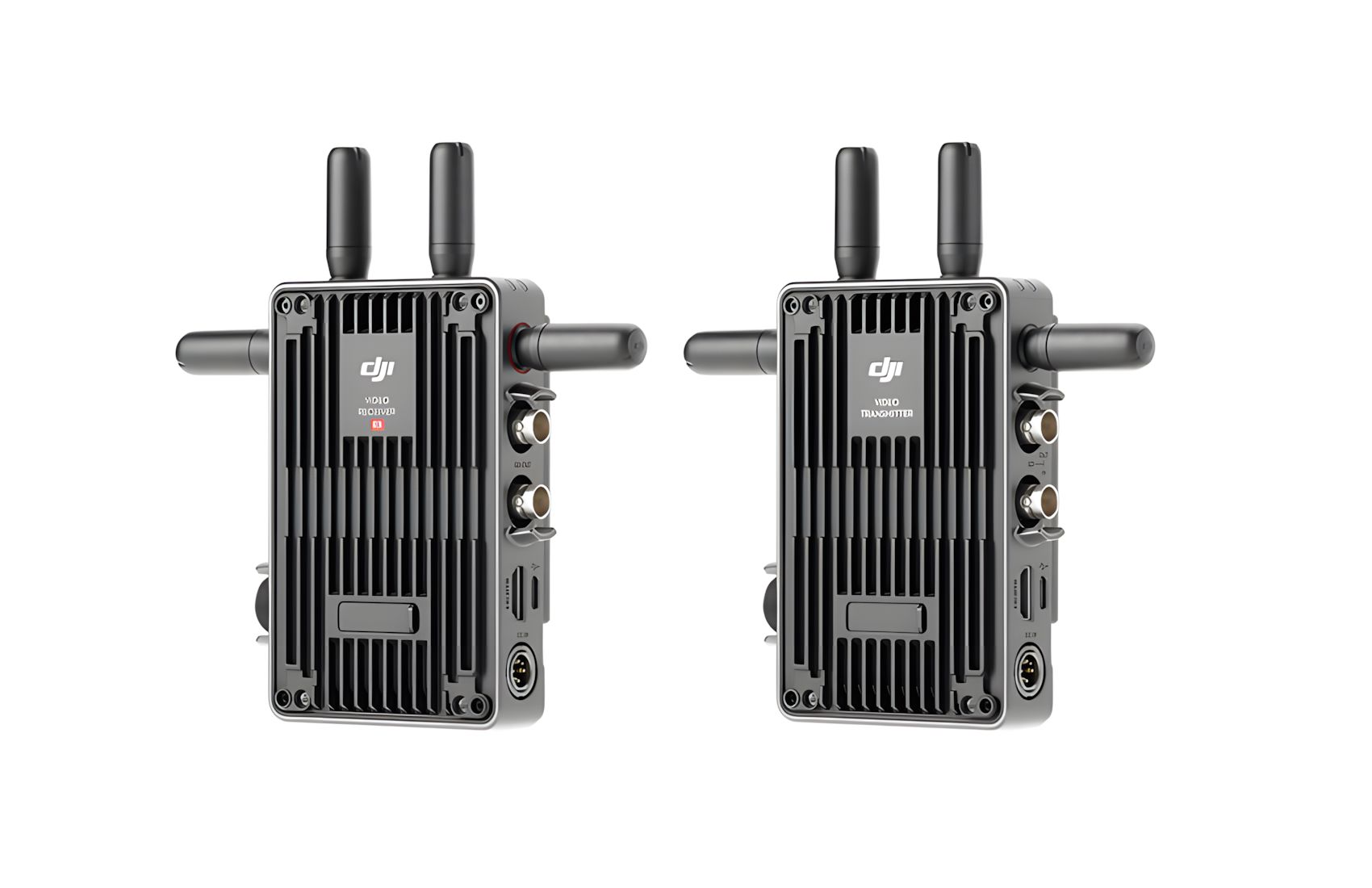

DJI Wireless
Transmission Standard Combo
- Wireless Video Transceiver Set
- 3G/SD-SDI & HDMI Connectors
- Up to 1080p 60P
- Range: 6km line of sight
DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

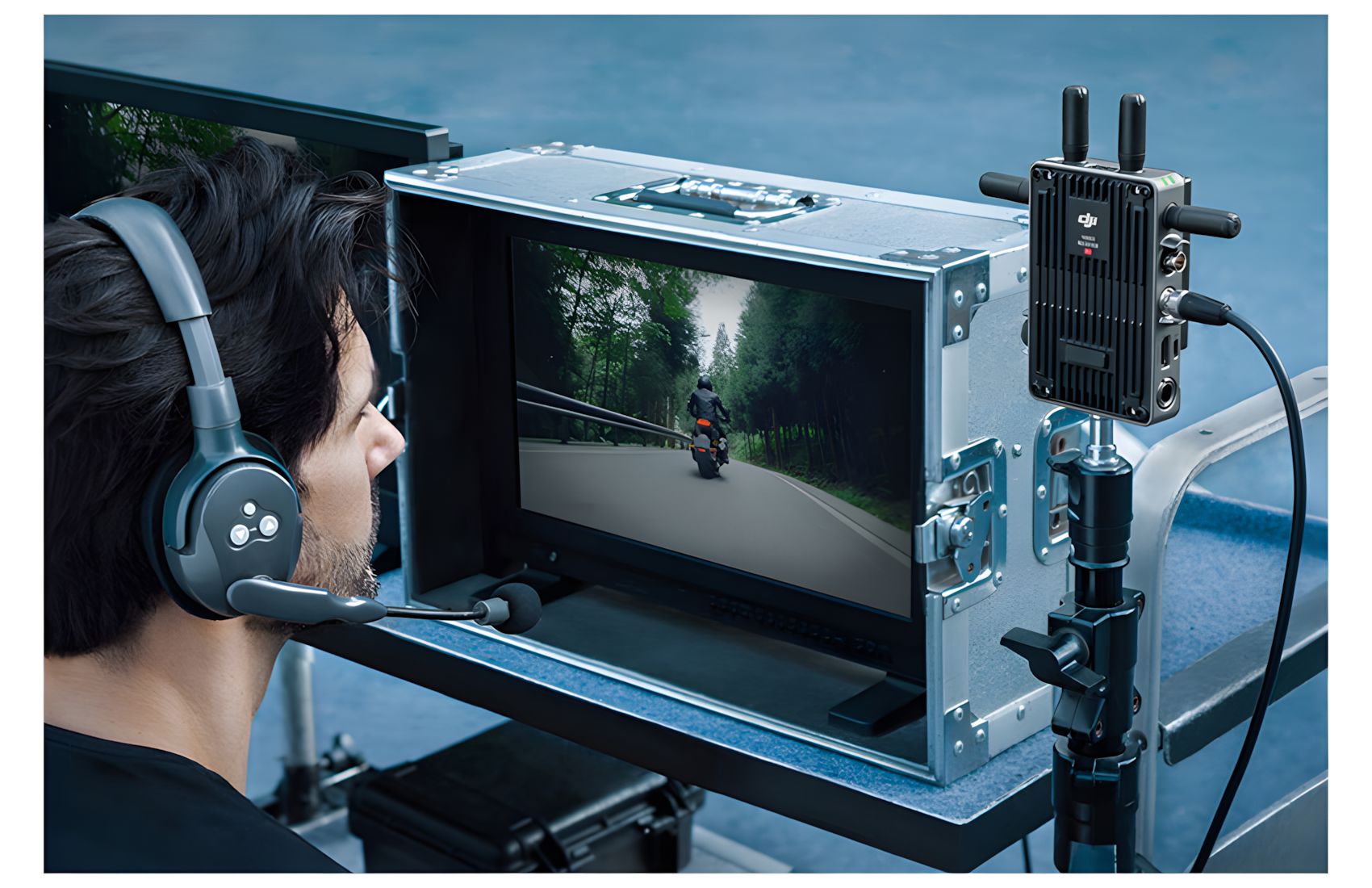

Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.
Seamless Auto Frequency Hopping
O3 Pro adds DFS bands* on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.
By mounting high-gain antennas, transmission capability is further boosted.
One Transmitter with Multiple Receivers
The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.
Meanwhile, for crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can also be enabled to allow an unlimited number of receivers (transmission performance differs with Broadcast mode enabled). This brings shooting efficiency and awareness to an entirely new level.
Encrypted Transmission
DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.
Boxue Wang, Director of Photography
"DJI Transmission not only optimizes the filmmaking process, but also frees us from the hassles of cables and limitations in distance. It’s really thoughtful of DJI to focus on making assistance tools for filmmaking. Details are what truly promote the industrialization of cinematography."
Known for: Nice View, Dying to Survive, The YinYang Master
Independent Recording and Playback
The remote monitor features a microSD card slot and allows for independent recording and storage of up to 1080p/60fps H.264 live feed. The remote monitor can automatically start and stop recording in synchronization with the camera, as well as simultaneously access video timecodes, [3] making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.
Built-In Motion Controller
The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Type of Wireless
-
Wireless Video Transceiver SET
Wireless Video Transceiver SET
RECEIVER FEATURES
- Video outputs (Receiver)
-
3G/HD/SD-SDI (BNC)
3G/HD/SD-SDI (BNC)
HDMI
HDMI
- No of Video outputs (Receiver)
-
1/1
- Audio outputs (Receiver)
-
Jack 3.5mm Phones
Jack 3.5mm Phones
2CH embedded audio SDI
2CH embedded audio SDI
2CH embedded audio HDMI
2CH embedded audio HDMI
- No of Audio outputs (Receiver)
-
1/1/1
- Dimensions(Receiver)
-
213x135x51mm
- Weight(Receiver)
-
0.727KG
- Power (Receiver)
-
1x L-Series Battery (Interchangeable Mount).
TRANSMITTER FEATURES

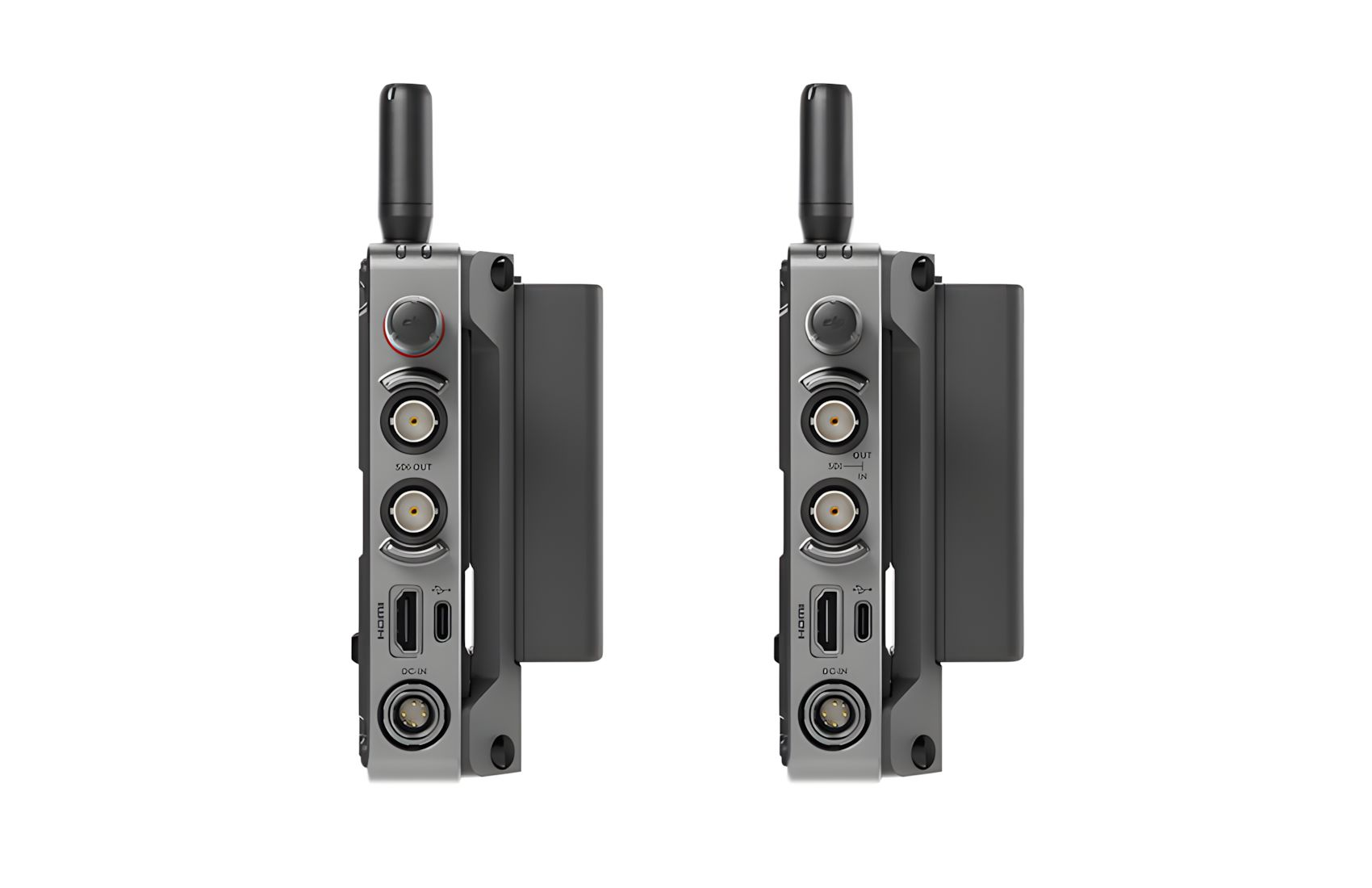

- Video inputs (Transmitter)
-
3G/HD/SD-SDI (BNC) 1
3G/HD/SD-SDI (BNC) 1
HDMI
HDMI
- Video outputs (Transmitter)
-
3G/HD/SD-SDI (BNC)
3G/HD/SD-SDI (BNC) 1
- Audio inputs (Transmitter)
-
2CH embedded audio SDI 1
2CH embedded audio SDI 1
2CH embedded audio HDMI
2CH embedded audio HDMI
- Audio outputs (Transmitter)
-
2CH embedded audio SDI
2CH embedded audio SDI 1
- Dimensions(Transmitter)
-
127x87x26mm
- Weight(Transmitter)
-
0.350KG
- Power (Transmitter)
-
1x L-Series Battery (Interchangeable Mount).
CONNECTIONS
- Other Connections
-
USB-C
USB-C
WIRELESS FEATURES
- Video Resolution
-
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P@1280x720Pixel
- Range
-
6000m line of sight
6000m line of sight
- Wireless Frequency
-
Non-DFS Frequencies: 2.4 to 2.48 GHz, 5.15 to 5.25 GHz and 5.72 to 5.85 GHz.
DFS Frequencies: 5.25 to 5.35 GHz, 5.47 to 5.6 GHz and 5.65 to 5.72 GHz.
MORE SPECIFICATIONS
- Extras
-
4:2:2 10Bit Video Processing.
- Mount
-
Hot Shoe
Hot Shoe
- Power
-
Sony NP-F970 Type battery
Sony NP-F970 Type battery
Barrel Power DC input
Barrel Power DC input
USB-C
USB-C
- Power Consumption
-
11 Watt.
- Country of Origin
-
China
China
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 32.5 x 21.3 x 10.6 cm
- Total Weight
- 1.24 kg

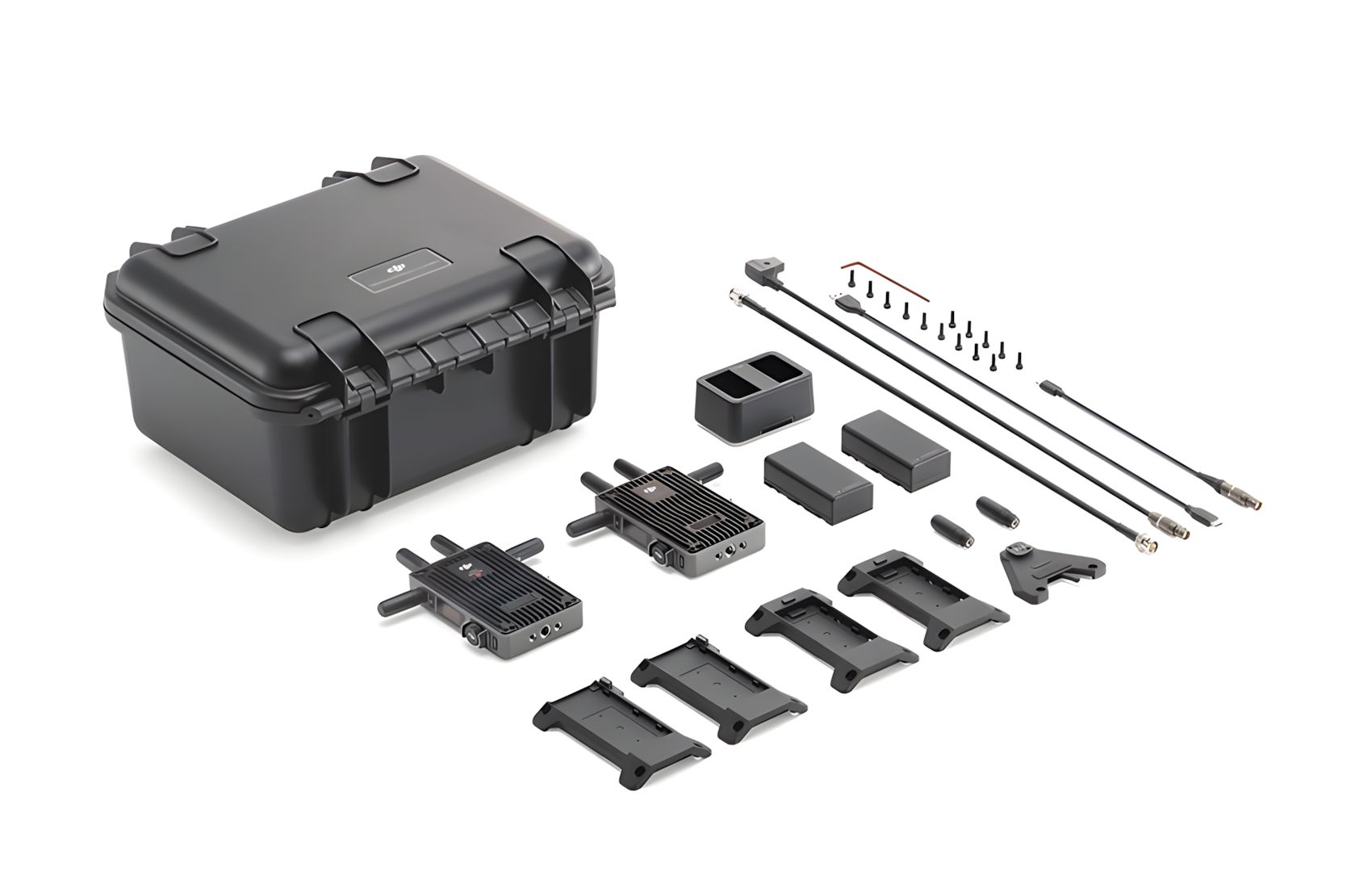

- 1x Video Transmitter
- 1x Video Receiver
- 2x WB37 Battery Adapter
- 2x WB37 Intelligent Battery
- 1x WB37 Battery Charging Hub (USB-C)
- 2x NP-F Battery Adapter
- 1x DJI Transmission USB-C Power Cable
- 1x DC to P-TAP Power Cable
- 1x SDI Cable
- 1x USB-C Cable
- 1x Protector Case
- 2x Ronin Video Transmission Antenna
- 1x Installation Toolkit
-
