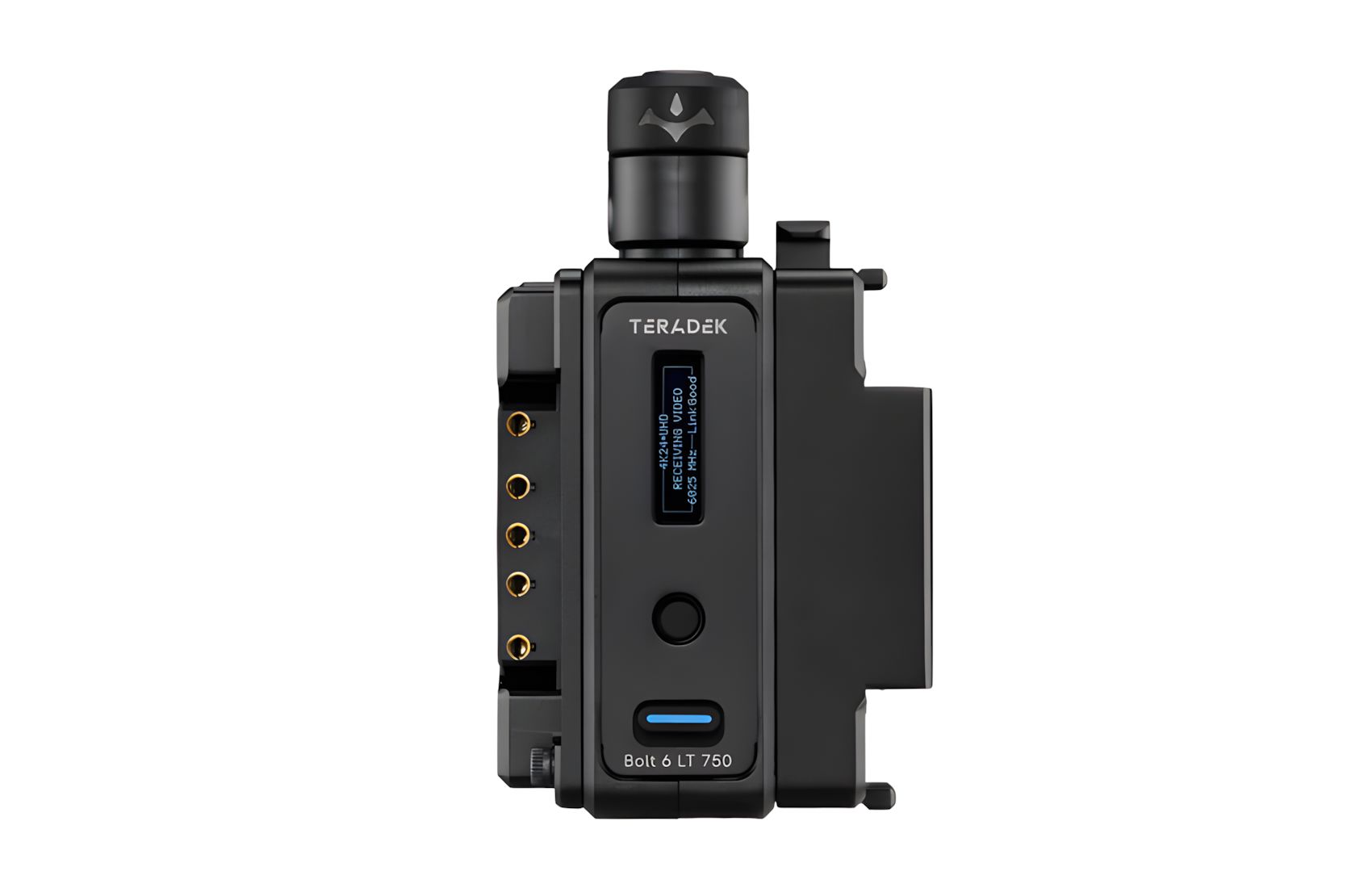

Bolt 6 LT 750 RX V-Mount Int

MFR# 10-2264-V BLK# 433-0001
in-Store Price: 1.992,12€ + VAT
Online Price: 1.912,43€ + VAT
  • Wireless Video Receiver
  • 6GHz Frequency Band
  • 3G/SD-SDI & HDMI Connectors
  • Range: 230m line of sight
Not in stock
Available on order: 15 Business Days
Add to Wishlist
Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Source: https://teradek.com/products/bolt-6-lt-rx?variant=45122282619058

STATUS

Status
New
Availability
Available on order: 15 Business Days
Type of Wireless
Wireless Video Receiver
Wireless Video Receiver

RECEIVER FEATURES

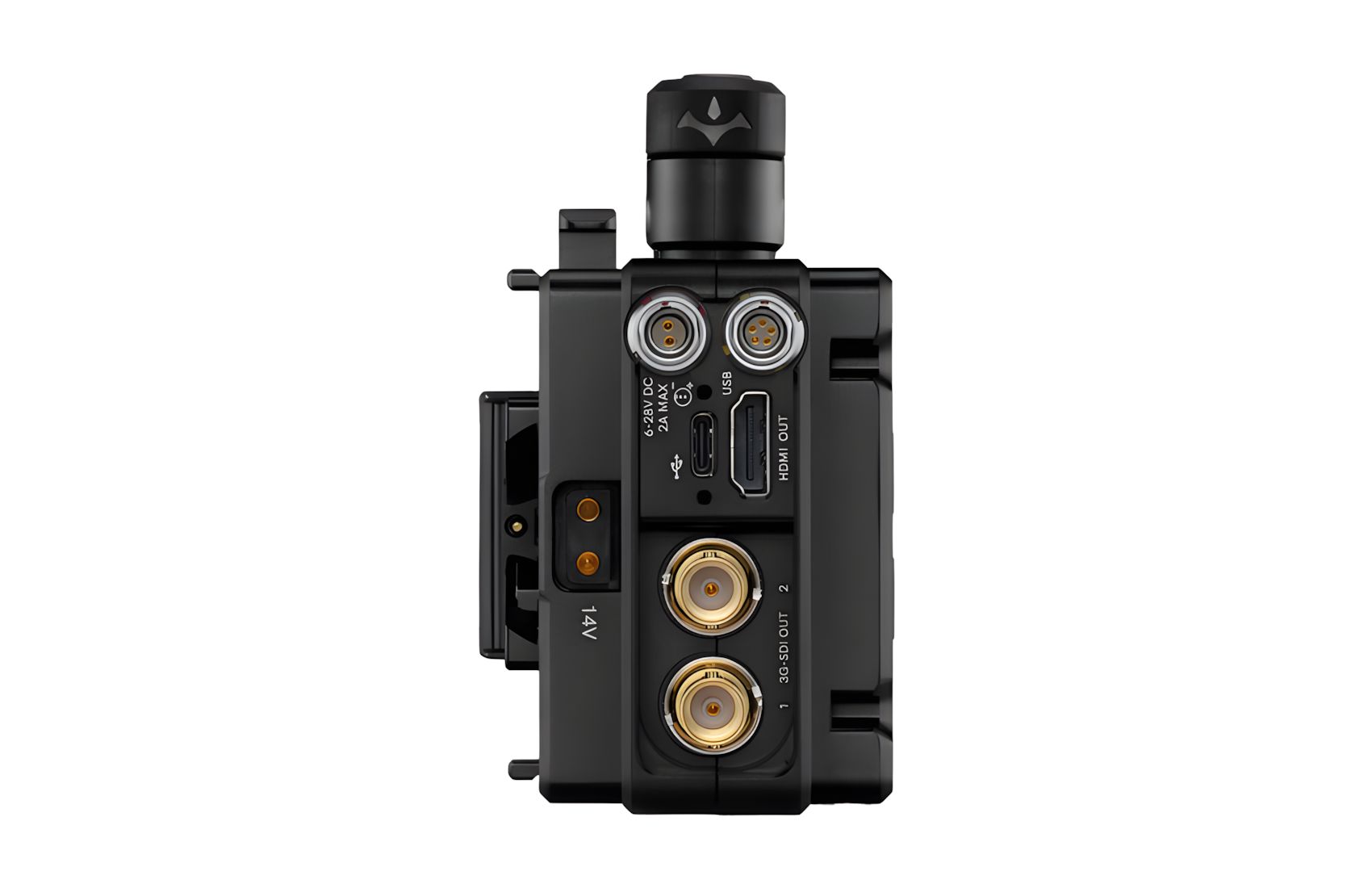

Video outputs (Receiver)
3G/HD/SD-SDI (BNC)
3G/HD/SD-SDI (BNC)
HDMI 4K
HDMI 4K
No of Video outputs (Receiver)
1/1
Audio outputs (Receiver)
2CH embedded audio SDI
2CH embedded audio SDI
2CH embedded audio HDMI
2CH embedded audio HDMI
No of Audio outputs (Receiver)
1/1
PC Connections (Receiver)
Micro-USB
Micro-USB
Receiver Mount
1/4" holes
1/4" holes
Dimensions(Receiver)
94x122x27mm
Weight(Receiver)
0.292KG
Power (Receiver)
2-Pin Connector 6-28VDC.
11Watts.

WIRELESS FEATURES

Video Resolution
24P/25P/30P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P@1280x720Pixel
50i/50P @720x576Pixel
60i/60P i@720x480Pixel
Range
230m line of sight
230m line of sight
Wireless Frequency
Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz.
DFS Frequencies: 5.270 ~ 5.670 GHz.
RF Output Power (mW)
50.0
50.0

MORE SPECIFICATIONS

Extras
4:2:2 10Bit Video Processing.
HDMI: RGB 4:4:4, 10-bit.
Micro USB for Firmware updates.
Multicast: Up to 6 RX.
Mount
1/4" holes
1/4" holes
Power
2-pin Lemo DC input
2-pin Lemo DC input
Power adapter
Power adapter
Power Consumption
11 Watt
Country of Origin
USA
USA
Warranty
1 Year

PHYSICAL

Total Dimensions (LxWxH)
41.4 x 23.1 x 9.4 cm
Total Weight
1.77 kg

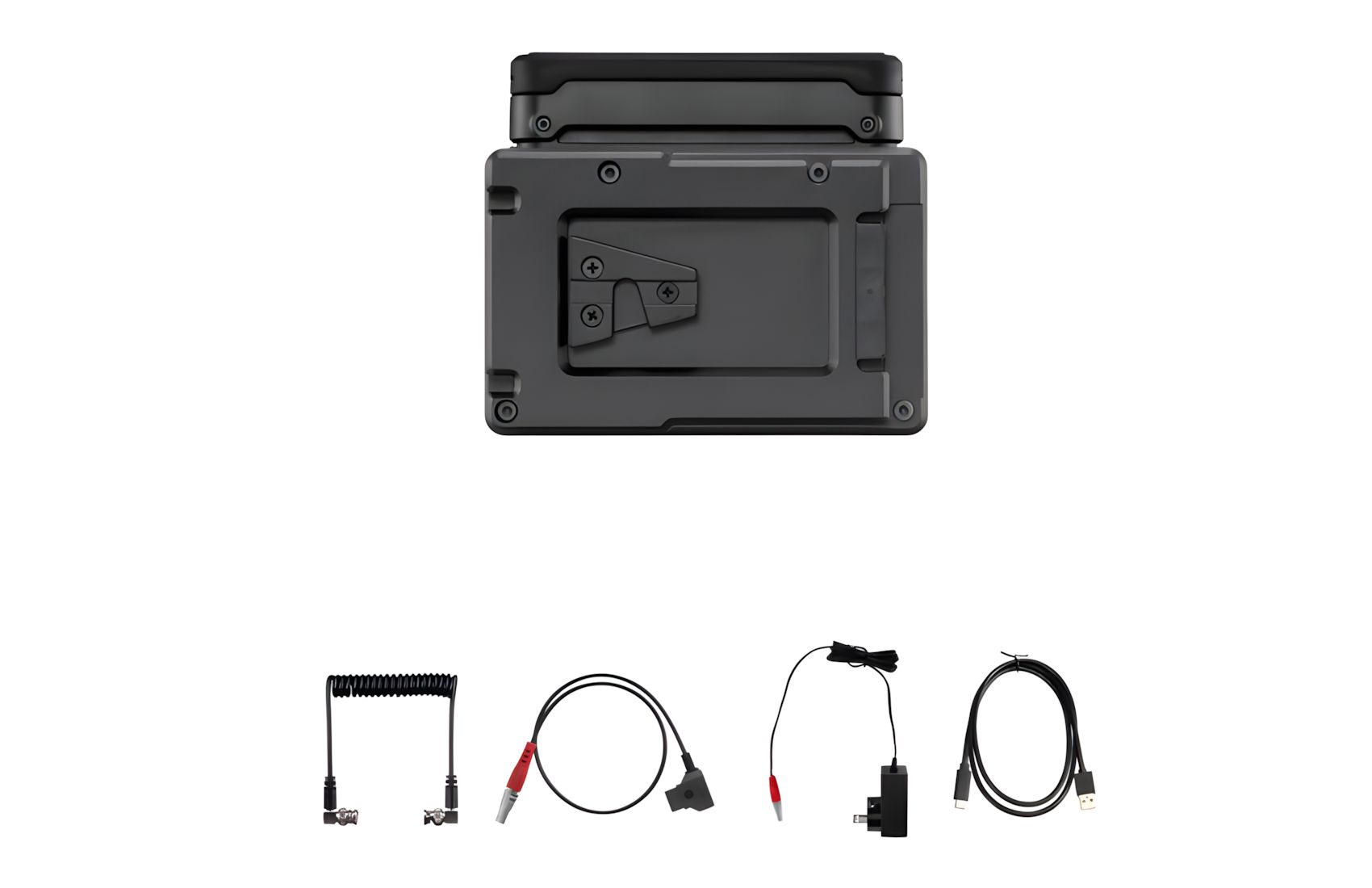

  • 1 x Bolt 6 LT 750 RX Internal Antenna V-Mount
  • 1 x 2pin to P-Tap Cable, 18in
  • 1 x 2pin to AC Adapter 18W, 6ft
  • 1 x SDI Cable, 10in
  • 1 x USB-C 2.0 Male to Male, 1m
