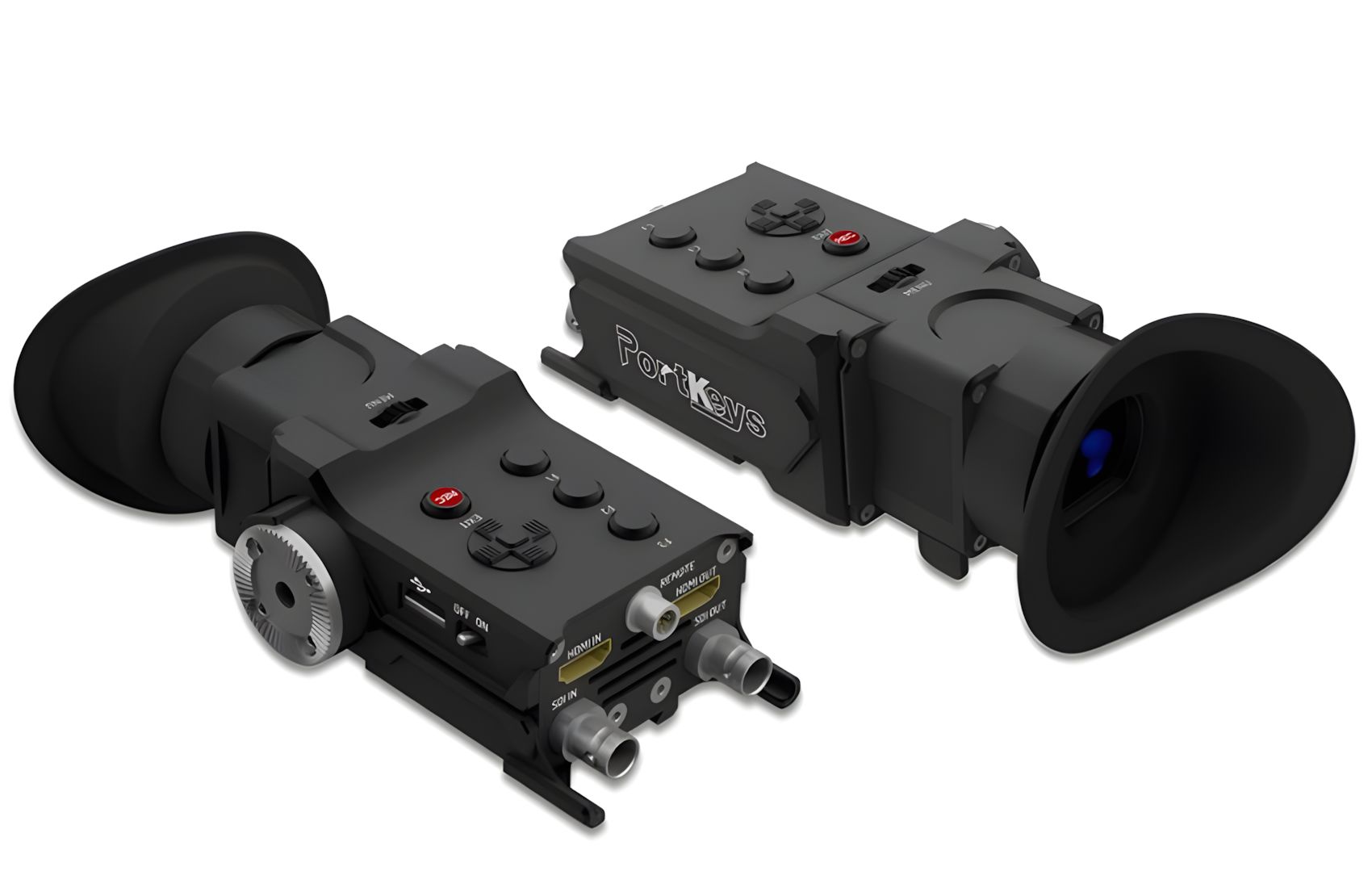

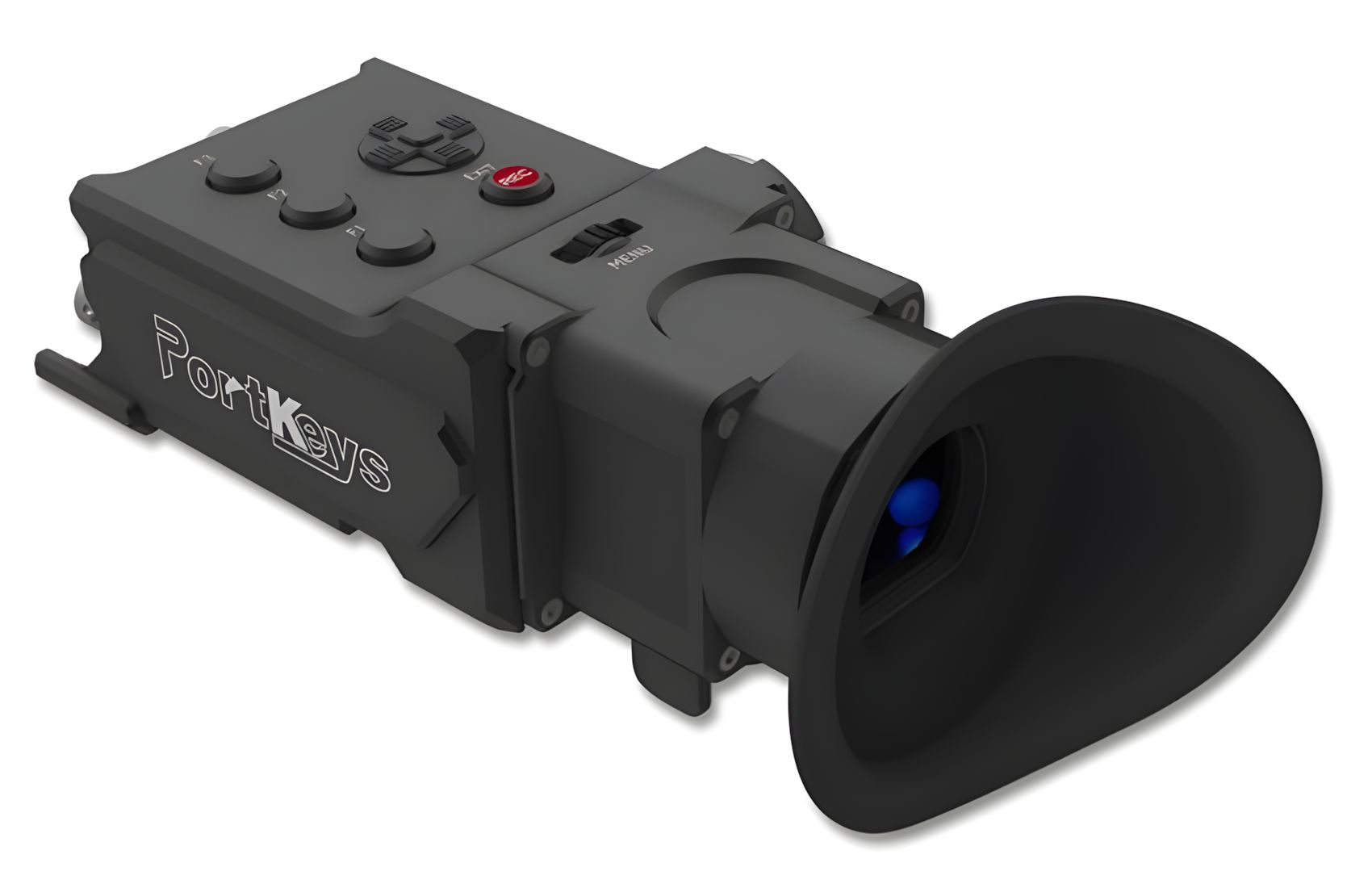

Portkeys Viewfinder
OEYE 3G EVF HDM SDI
MFR# OEYE 3G
BLK# 554-0014
in-Store Price: 1.217,58€ + VAT
Online Price: 1.168,87€ + VAT
- Electronic Viewfinder
- Micro-OLED 0.71" 1920x1080Pixel
- 3G-SDI and HDMI Inputs/Loop Outputs
- Brightness: 200nits
【0.71 inch Panel】0.71″ Screen size OLED Backlight EVF with 1920×1080 resolution, Diopter +8D~-3D.
【Dimension】180×69.7×72.4mm
【Advanced Features】3D LUT, Waveform, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Image Flip, Backlight, Color Temperature, Peaking, Zooming, Cross Hair..
【Signal input】3G-SDI、4K HDMI、USB
【Signal output】3G-SDI、4K HDMI
【Power Input / Output】4pin Aviation Connector
【Upgrade Firmware / Load LUT】USB-A
【Delivery date】Ship within 2 days after place order.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Viewfinder Type
-
Electronic Viewfinder
PANEL
- Panel Size
-
0.71
- Panel Type
-
Micro-OLED
- Panel Resolution
-
Full HD 1920x1080pixels
- Panel Aspect Ratio
-
16:9
- Input Resolutions
-
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
UHD: 3840x2160pixels
4K: 4096x2160pixels
- Frames Supported
-
24P @4096x2160
24P/25P/30P @3840x2160
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
50P/50i @720x576Pixel
60P/60i @720x480pixel
- Brightness
-
200 nits
- Colors
-
16.7 Million
- Color Depth
-
8-bit
CONNECTIONS

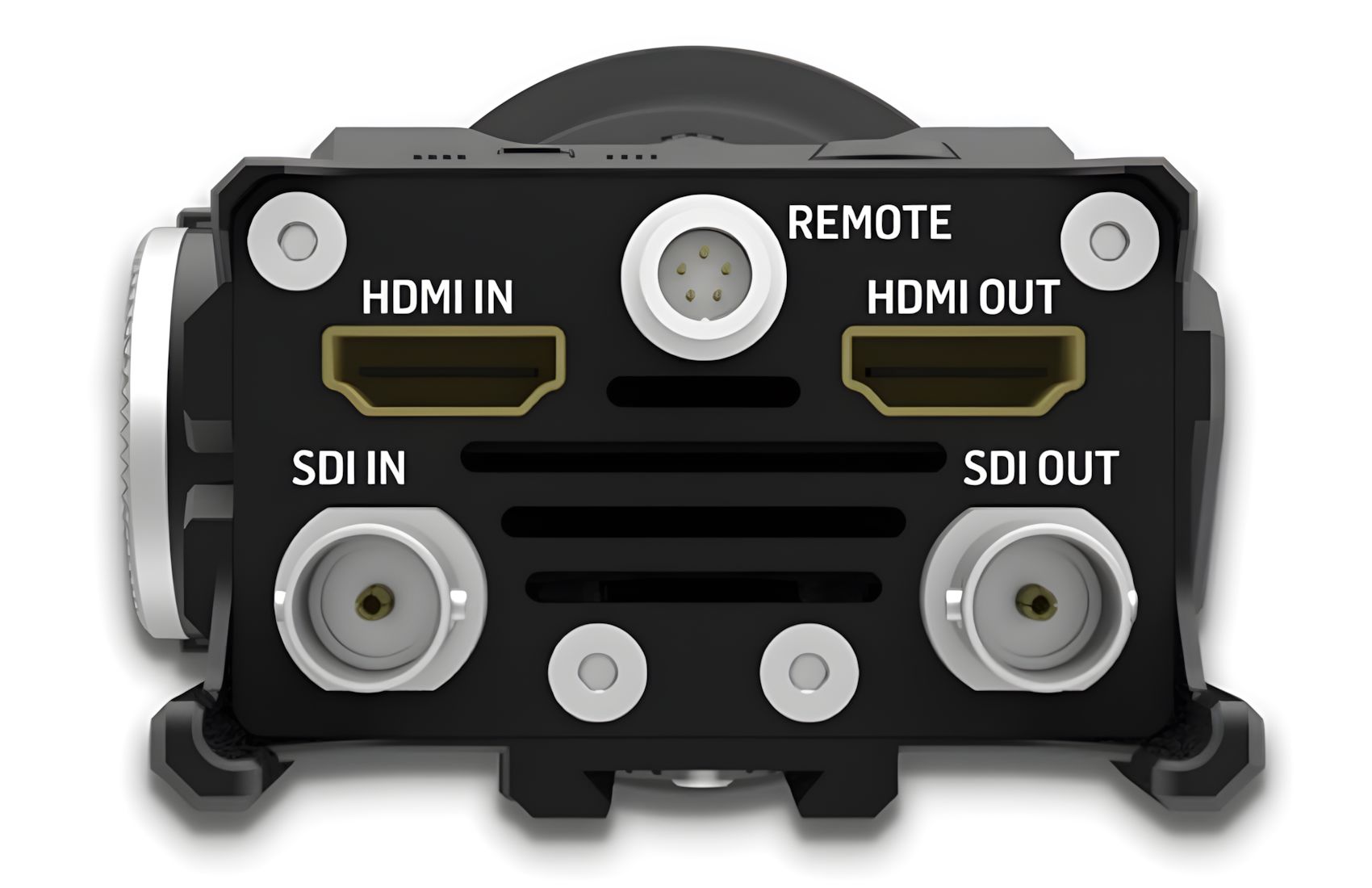

- Video inputs
-
3G/HD-SDI (BNC) x1
HDMI 4K x1
- Video outputs
-
3G-SDI LOOP x1
HDMI 4K LOOP x1
- Audio inputs
-
Embedded audio SDI x1
Embedded audio HDMI x1
- Audio outputs
-
Embedded Audio SDI x1
Embedded Audio HDMI x1
- PC Connections
-
USB
GENERAL FEATURES
- Diopter
-
Yes
MORE SPECIFICATIONS
- Extras
-
Audio Level Meter
Brightness & Contrast
Zebra & Focus Assist
Color Temperature
Waveform
3D LUT
- Mount
-
Arri Rosette
- Power
-
DC input 7-24V
- Power Consumption
-
6.5W
- Country of Origin
-
China
- Warranty
- 6 Months
PHYSICAL
- Total Dimensions (LxWxH)
- 18 x 7.2 x 6.9 cm
- Total Weight
- 400 gr
- 1x OEYE LED EVF
- 1x Elbow SDI Cable
- 1x Wipe Cloth
- 1x Harness Velcro Ties
- 1x Warm Prompt Card
- 1x USB Disk
- 2x Power Cord (Aviation Head – DTap / DC)
- 1x Safety Box
-
