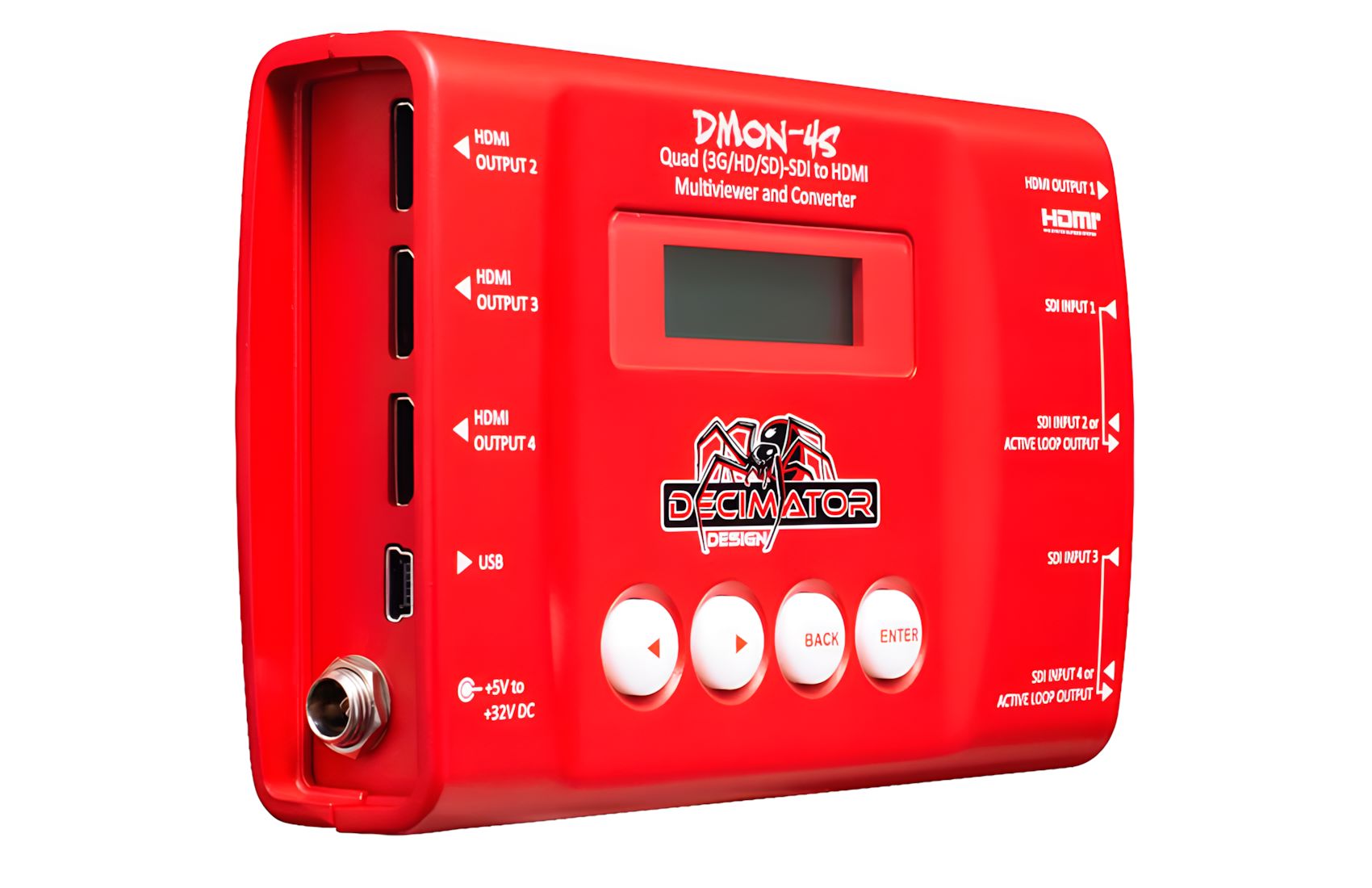

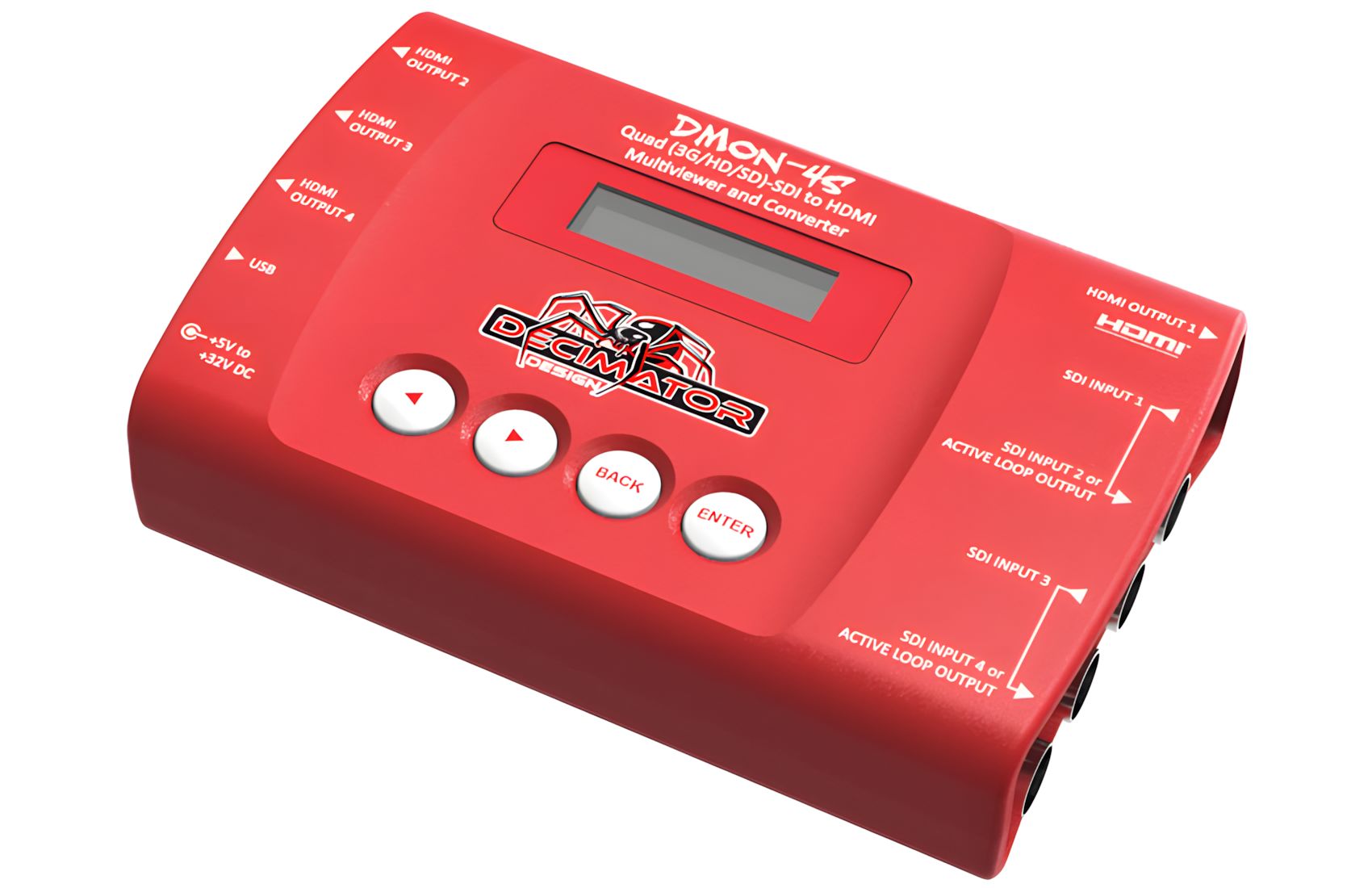

Decimator Converter
DMON 4S
MFR# DD-4S
BLK# 199-0021
in-Store Price: 609,50€ + VAT
Online Price: 585,12€ + VAT
- Video Multiviewer & Converter
- 4x 3G/HD/SD-SDI inputs
- 4x Mini-HDMI outputs
- 4x HDMI to 4x SDI Converter
4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer and Custom Layouts.
• (NEW) Support for both 3G level A and B on the inputs.
• (NEW) Horizontal and/or Vertical image flipping per window
• Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
For example you could use the unit to have:
- 4 independent SDI to HDMI converters
- 3 independent SDI to HDMI converters with a quad-split output
- 2 independent SDI to 2 x HDMI converters with loop through
- A single SDI or Multi-View to 4 x HDMI outputs
• Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.
• (NEW) Multi-View mode offers:
- Custom Layouts with various standard layouts
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selection of audio from any input
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- Low latency buffering for each input allowing non-synchronous inputs
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
• The DMON-4S is a truly portable converter, that incorporates our new easy to use LCD and button control system.
• This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
STATUS
- Status
- New
- Availability
- Ask for availability
- Converter Type
-
Digital to Digital Converter
Multiviewer - Splitter
- Power Type
-
External Power Adapter
CONNECTIONS
- Video inputs
-
3G/HD/SD-SDI (BNC) x4
- Video outputs
-
3G-SDI LOOP x2
Mini HDMI x4
- Audio inputs
-
Embedded audio SDI x4
- Audio Output
-
2CH Embedded Audio HDMI x4
- PC Connections
-
USB
GENERAL FEATURES
- Max Resolution Supported
-
SD 480i NTSC
SD 576i PAL
HD 720: 1280 x 720pixels (16:9 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)
- Frames Supported
-
24P/25P/30P/50i/50P/60i/60P @1920x1080pixel
25P/30P/50P/60P @1280x720pixel
50i @720x576pixel
60i @720x480pixel
MORE SPECIFICATIONS
- Extras
-
4 independent SDI to HDMI converters.
3 independent SDI to HDMI converters with a quad-split output.
2 independent SDI to 2 x HDMI converters with loop through.
A single SDI or Quad-Splt to 4 x HDMI outputs.
Inputs 2 and 4 can be individually
- Power
-
Power adapter
- Power Consumption
-
6Watt (5-32V DC)
- Country of Origin
-
USA
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 12.3 x 2.9 x 7.9 cm
- Total Weight
- 790 gr
- Converter
- Power Adapter
-
