TVLogic Monitor
LUM-242H
MFR# TVL-LUM-242H
BLK# 395-0127
in-Store Price: 5.975,31€ + VAT
Online Price: 5.736,29€ + VAT
- Preview Monitor
- LCD IPS 24" 3840x2160Pixel
- 12G/HD/SD-SDI IN/OUT
- HDMI IN Up to 3840x2160 50P/60P

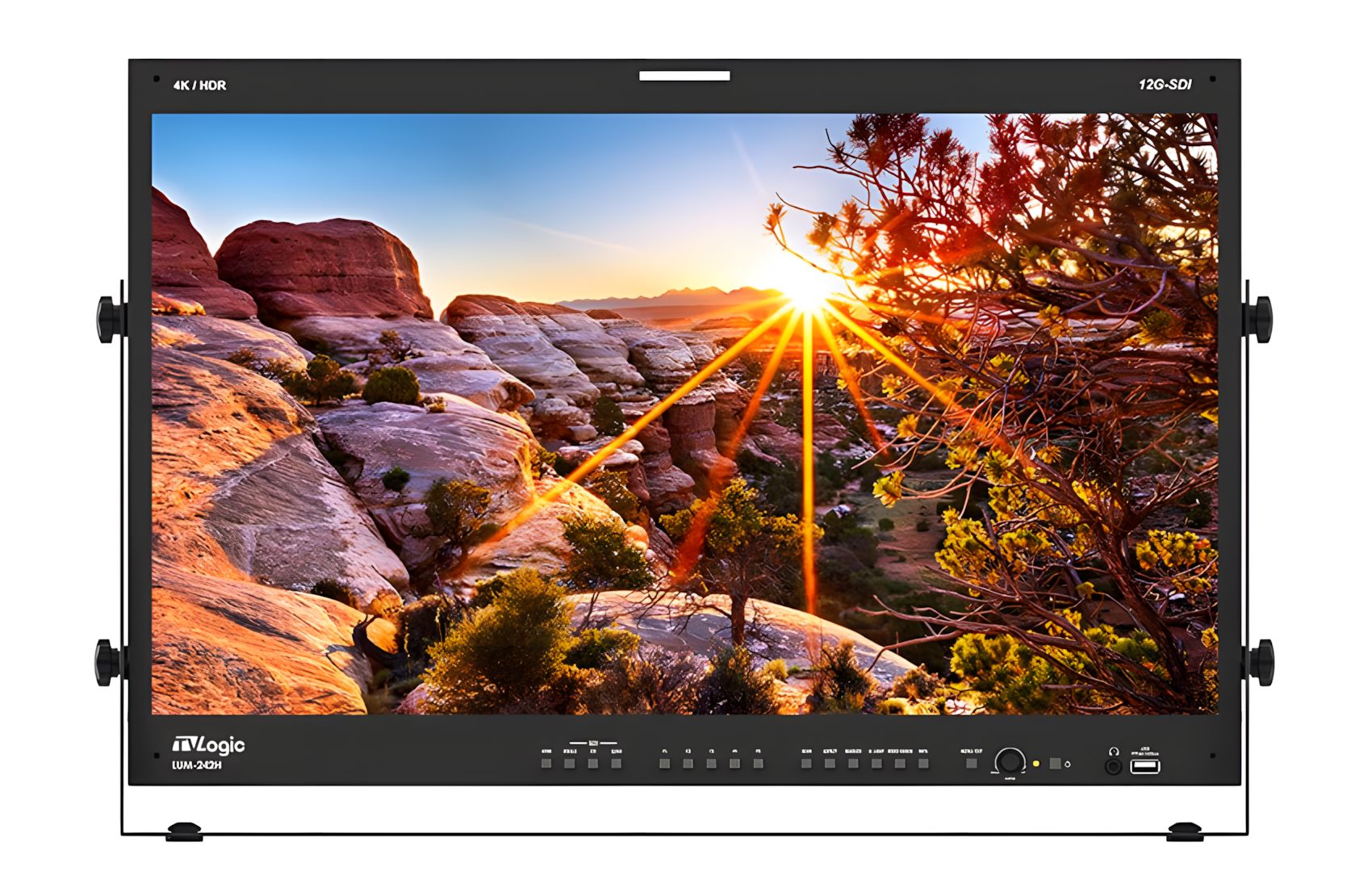

The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
Product Highlights
• 24” True UHD Resolution (3840×2160)
• Peak Luminance 1,000nits
• 1.07 Billion Colors (10bit)
• 90% Coverage of DCI-P3 Color Gamut
• HDR (PQ, HLG)
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist / Marker
• Timecode Display
• UMD Display
• Blue/Mono Only
• Various Aspect
• Luma(Y’) Zone Check
• Closed Caption (CC-608, CC-708)
• H/V Delay
• Tally
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Monitor Type
-
Preview Monitor
PANEL
- Panel Size
-
23.8"
- Panel Type
-
LCD IPS
- Panel Resolution
-
4K: 3840 x 2160pixels(16:9 aspect ratio)
- Panel Aspect Ratio
-
16:9
- Input Resolutions
-
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
- Frames Supported
-
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
50i @720x576Pixel
60i @720x480pixel
- Contrast
-
1000:1
- Brightness
-
1000 nits
- Colors
-
1.07billion
- Viewing Angle
-
178 Degrees

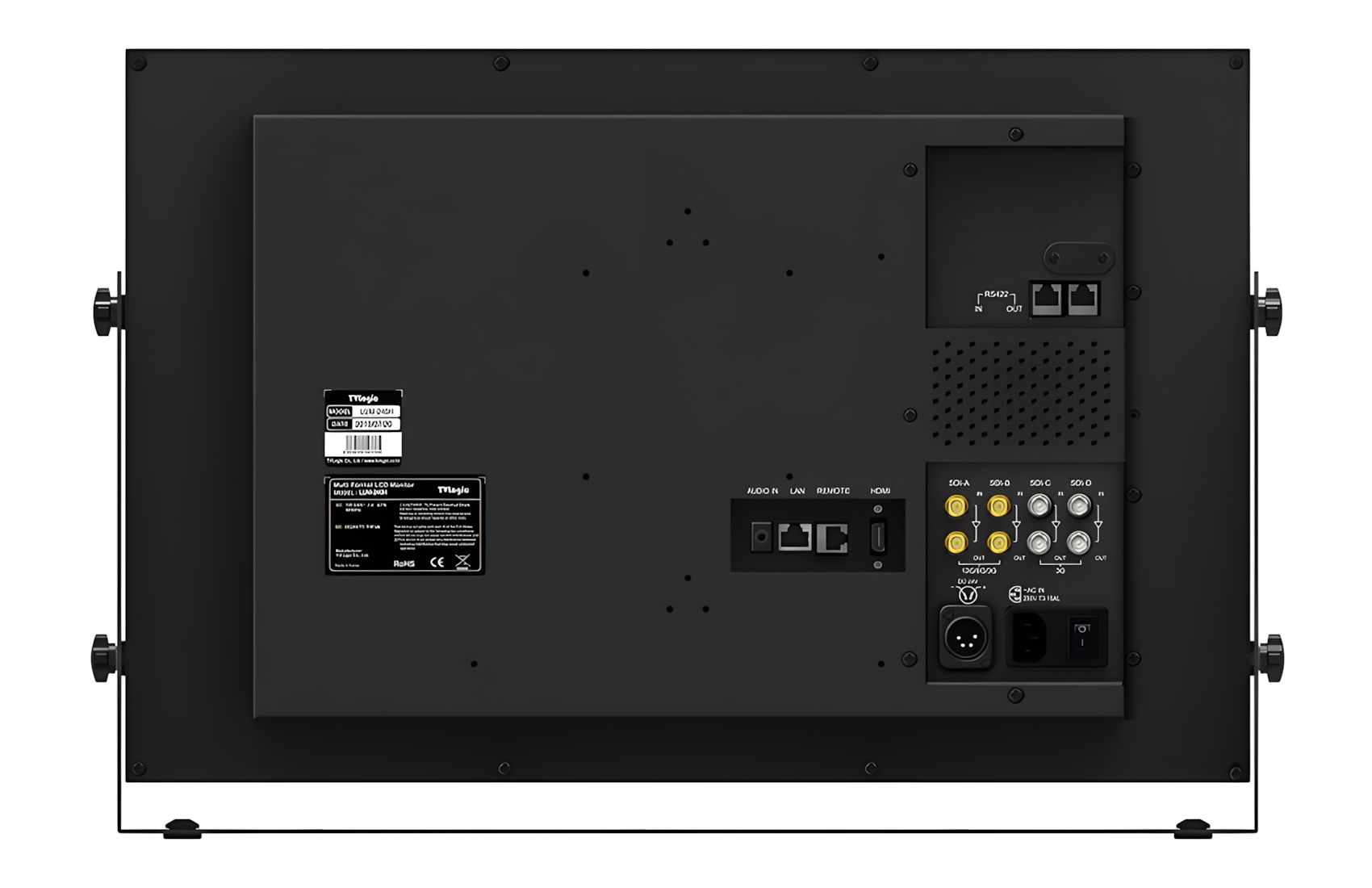

CONNECTIONS
- Video inputs
-
12G/6G/3G/HD-SDI (BNC) x4
HDMI x1
- Video outputs
-
12G-SDI x4
- Audio inputs
-
Jack 6.3mm x1
Embedded audio SDI x4
Embedded audio HDMI x1
- Audio outputs
-
Jack 3.5mm x1
Embedded Audio SDI x4
Embedded Audio HDMI
- PC Connections
-
Ethernet RJ-45
GENERAL FEATURES
- Monitor Features
-
Waveform
Vectorscope
Focus Assist
Guides - Safety Marker
Timecode Display
- Tally
-
Yes
- Speakers
-
Yes
MORE SPECIFICATIONS
- Extras
-
HDR
- Power
-
4pin XLR DC input
AC 220V
- Power Consumption
-
150W (24V or 240V)
- Country of Origin
-
Korea
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 55.5 x 45 x 28 cm
- Total Weight
- 11.4 kg
- Product Dimensions
- 552x360x96 withound stand
- Monitor
- AC Power Cord
- DC Power Adapter
- Stand
- General Features
- General_Features.pdf
