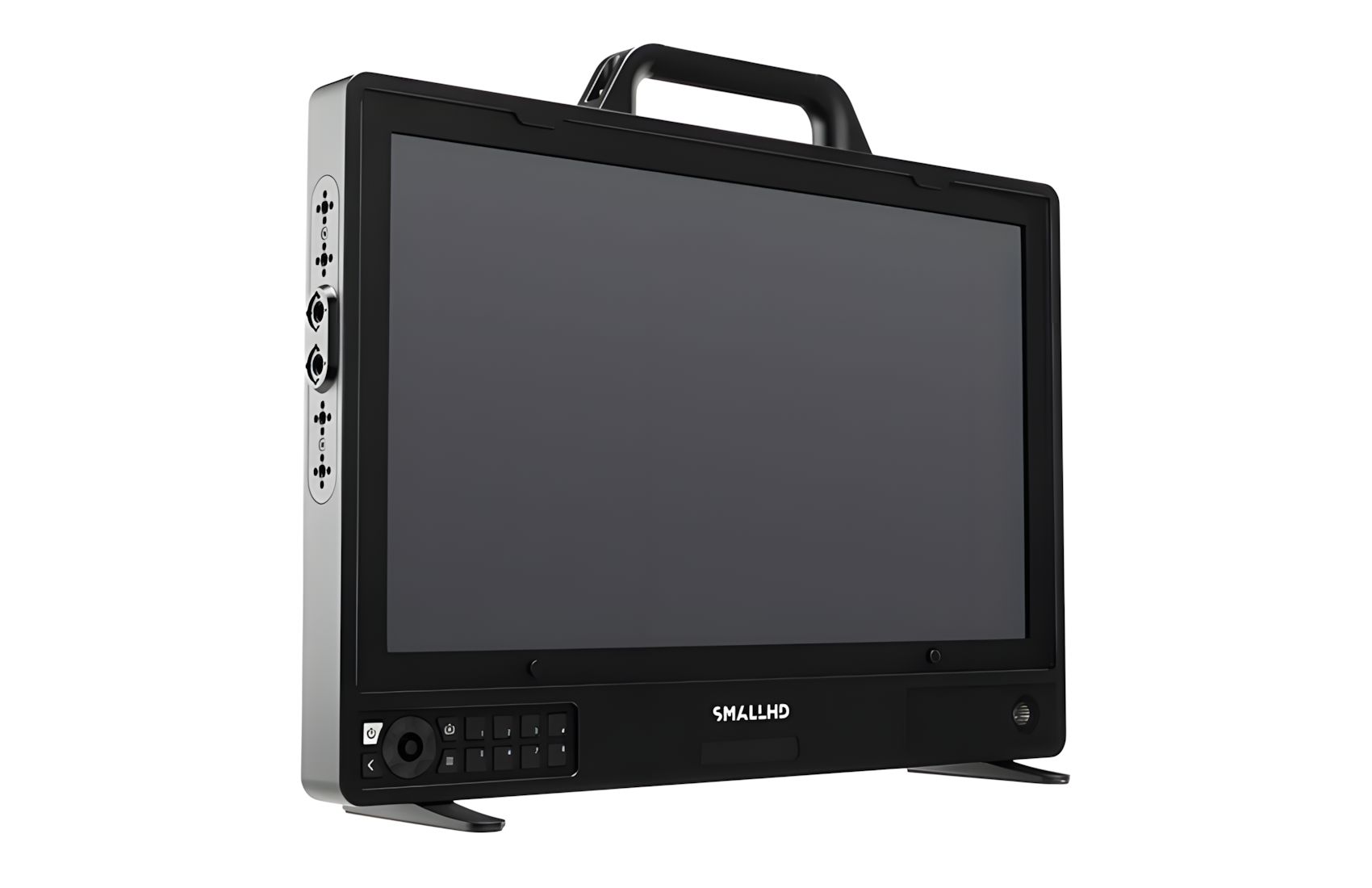

SmallHD Monitor

Cine 18 4K

MFR# 16-1801

in-Store Price: 6.099,26€ + VAT

Online Price: 5.855,28€ + VAT

High-Bright Production Monitor
18" LCD IPS
12G-SDI & HDMI Input/Output
3840 x 2160 Resolution

Not in stock
Available on order: 15 Business Days

The Cine 18 offers a perfect blend of screen size, brightness, color-accuracy, and portability, making it the most flexible High-Bright 4K Monitor for any production scenario. It’s big enough for Video Village, bright enough for daylight viewing, and its ultra-lightweight aluminum unibody construction is the result of years of real-world, on-set testing. This monitor is ideal for Video Village, ACs, DPs, DITs, or as a director’s monitor.

The Cine 18” 4K High-Bright monitor features 1100nits of brightness for easy daylight viewing, exceptional image quality, and up to 4K resolution on the monitor’s 18-inch creen. 10-bit color depth and 100% REC.709 color gamut ensure a color-accurate look at your production.

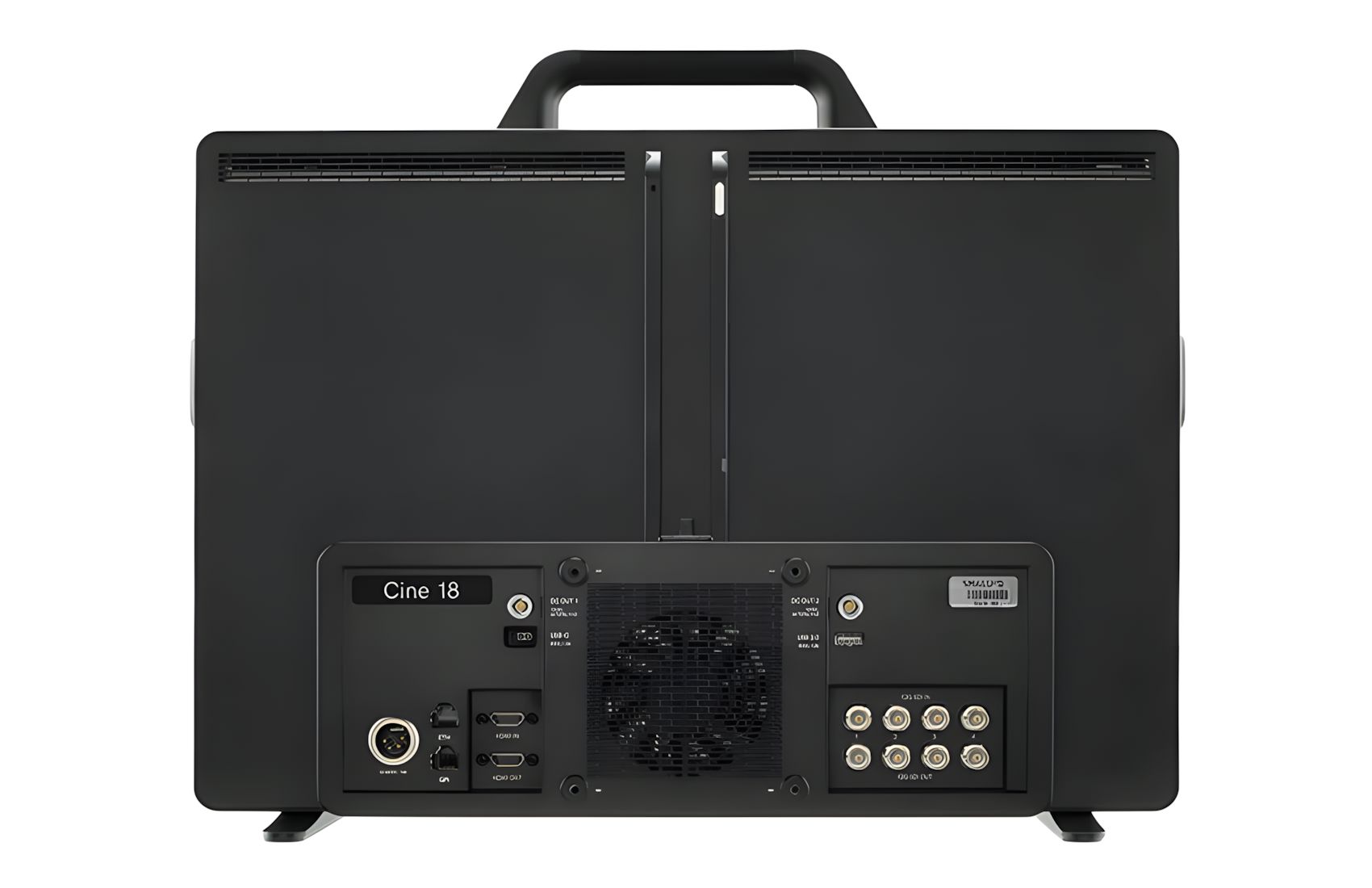

Cine 18 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a VESA pattern for mounting and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Product Highlights

18.4in/46.7cm IPS LCD
1100nits
3840x2160 Resolution
100% DCI-P3 Color
Weight: 111.15lbs/5.06kg

Key Platform Highlights

PageOS 4 software platform

4K HDR waveform and scopes

Dual & Quad-View*

Color Pipe color rendering

Monitor Calibration Wizard

Small4K™ Video Processing Architecture

Inputs: 4x 12G-SDI , 1x HDMI 2.0

Outputs: 4x 12G-SDI, 1x HDMI 2.0*

Unibody Smart Chassis

Arca Slide-On Rail for battery and accessory mounting

2x 2-pin accessory power outputs

Lower mounting rail included for ultimate flexibility

Power: Hot-swappable dual inputs: 1x 4-pin XLR, 1x Dual-GM/VM Battery Plate 14/26V (sold separately)

Source: https://smallhd.com/products/cine-18

STATUS

Status: New
Availability: Available on order: 15 Business Days
Monitor Type: Preview Monitor

PANEL

Panel Size: 18.4"
Panel Type: LCD IPS
Panel Resolution: 4K: 3840 x 2160pixels(16:9 aspect ratio)
Pixel Density (PPI): 239
Panel Aspect Ratio: 16:9
Input Resolutions: HD 1080: 1920x1080pixels(16:9 aspect ratio)
UHD: 3840x2160pixels
4K: 4096x2160pixels
Frames Supported: 24P/25P/30P/50P/60P @4096x2160Pixel
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
Contrast: 1300:1
Brightness: 1100 nits
Colors: 115% DCI-P3
Color Depth: 10-bit
Viewing Angle: 178 Degrees

CONNECTIONS

Video inputs: 12G/3G/HD/SD-SDI (BNC) x4
HDMI x1
Video outputs: 12G-SDI x4
HDMI x1
Audio inputs: Embedded audio SDI x4
Embedded audio HDMI x1
Audio outputs: Jack 3.5mm x1
Embedded Audio SDI x4
Embedded Audio HDMI x1
PC Connections: USB
GPI
Ethernet RJ-45

GENERAL FEATURES

Monitor Features: Waveform
Focus Assist
Peaking
Zoom
False Color
Overlay - Scan Mode
3D LUT Support

MORE SPECIFICATIONS

Extras: SD Card for LUTs, Captured Images, Image Overlays.
Power: 3pin XLR DC input
2-pin Lemo DC input
USB DC output
USB-C
Power Consumption: 120Watt Typical/ 210Watt Max.
4-pin XLR --> (34V/12A)
2x 2-pin Lemo --> (12V/2A)
USB 2.0--> (5V/2.4A)
USB 2.0--> (5V/1.5A)
USB C--> (5V/1.5A)
Country of Origin: USA
Warranty: 1 Year
