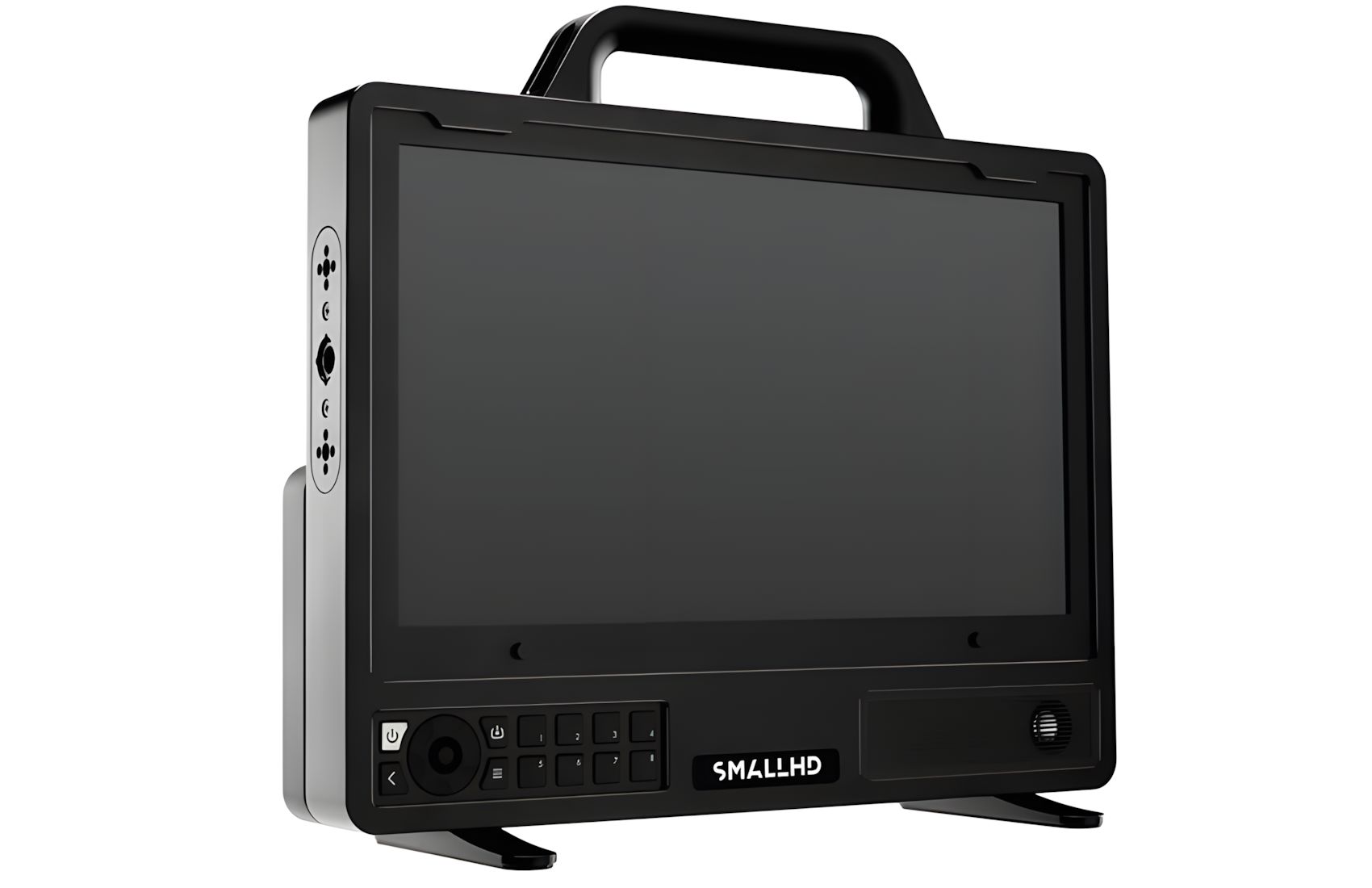

SmallHD Monitor

Cine 13 UHD 4K

MFR# MON-CINE-13 BLK# 574-0022

in-Store Price: 4.764,83€ + VAT

Online Price: 4.574,23€ + VAT

High-Bright Preview Monitor
13" LCD IPS
12G-SDI & HDMI Input/Output
3840 x 2160 Resolution

1pc in stock
Immediate Shipping

Cine 13 is SmallHD’s most agile, bright, and pixel-dense 4K production monitor yet. Boasting over 1500nits of brightness and 3840 x 2160 resolution, 4K is now more portable than ever. Low-profile in design, this field companion can be rigged for almost any situation. With brilliant daylight visibility and full 4K clarity, Cine 13 is built for those on-set creatives who require critical focusing capability and a large display.

Product Highlights

13.3in / 34cm IPS LCD
1500+nits Brightness
3840x2160 Resolution
100% Rec 709 Color
Weight: 6.8lbs / 3.09kg (with handle & feet)

Key Platform Highlights

PageOS 4 software platform

4K HDR waveform and scopes
Dual & Quad-View*
Color Pipe color rendering
Monitor Calibration Wizard

Small4K™ Video Processing Architecture
Inputs: 4x 12G-SDI , 1x HDMI 2.0
Outputs: 4x 12G-SDI, 1x HDMI 2.0*

Unibody Smart Chassis

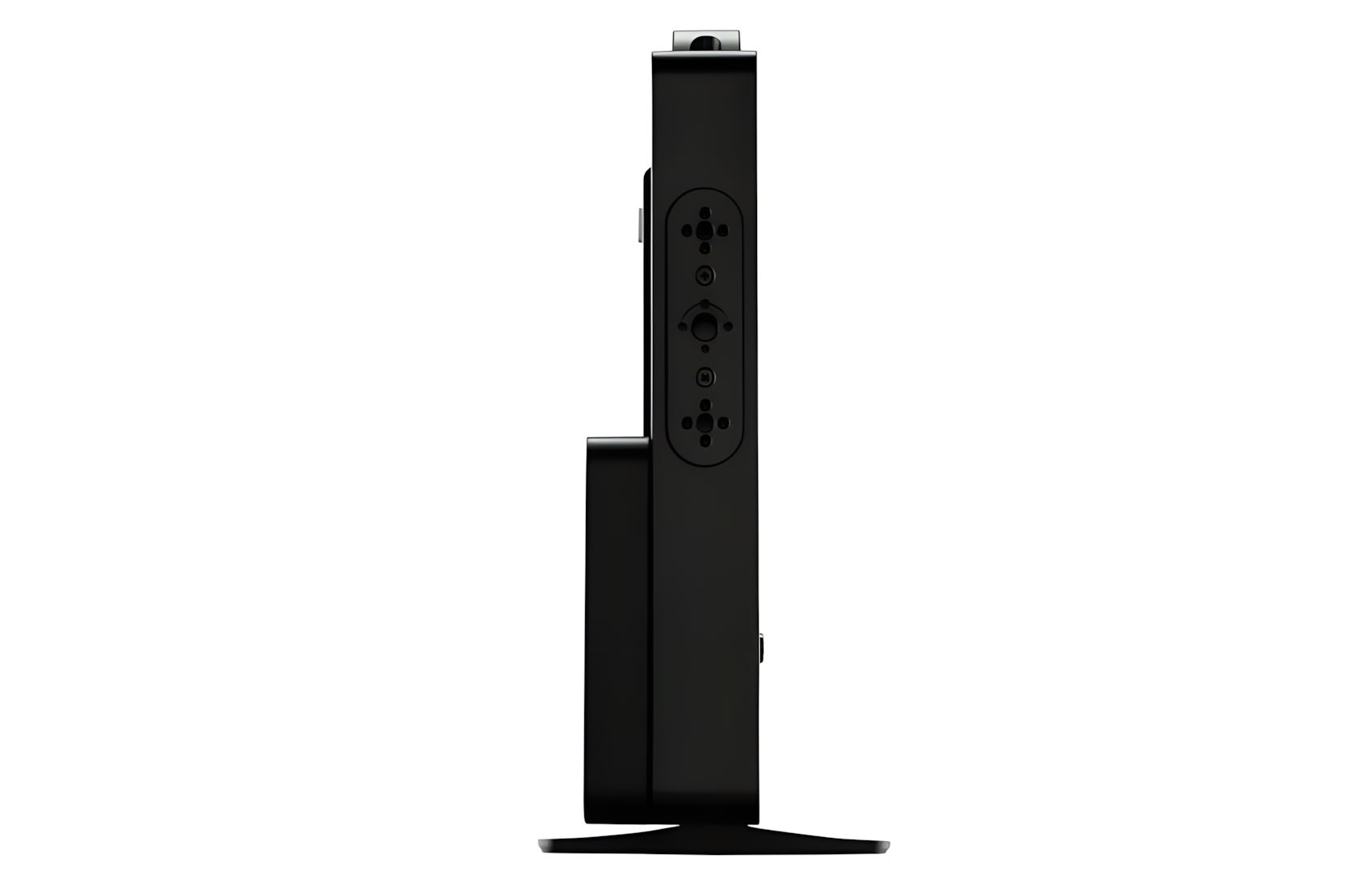

Arca Slide-On Rail for battery and accessory mounting
2x 2-pin accessory power outputs
Lower mounting rail included for ultimate flexibility

Power

1x 4-pin XLR

Hot-swappable dual inputs

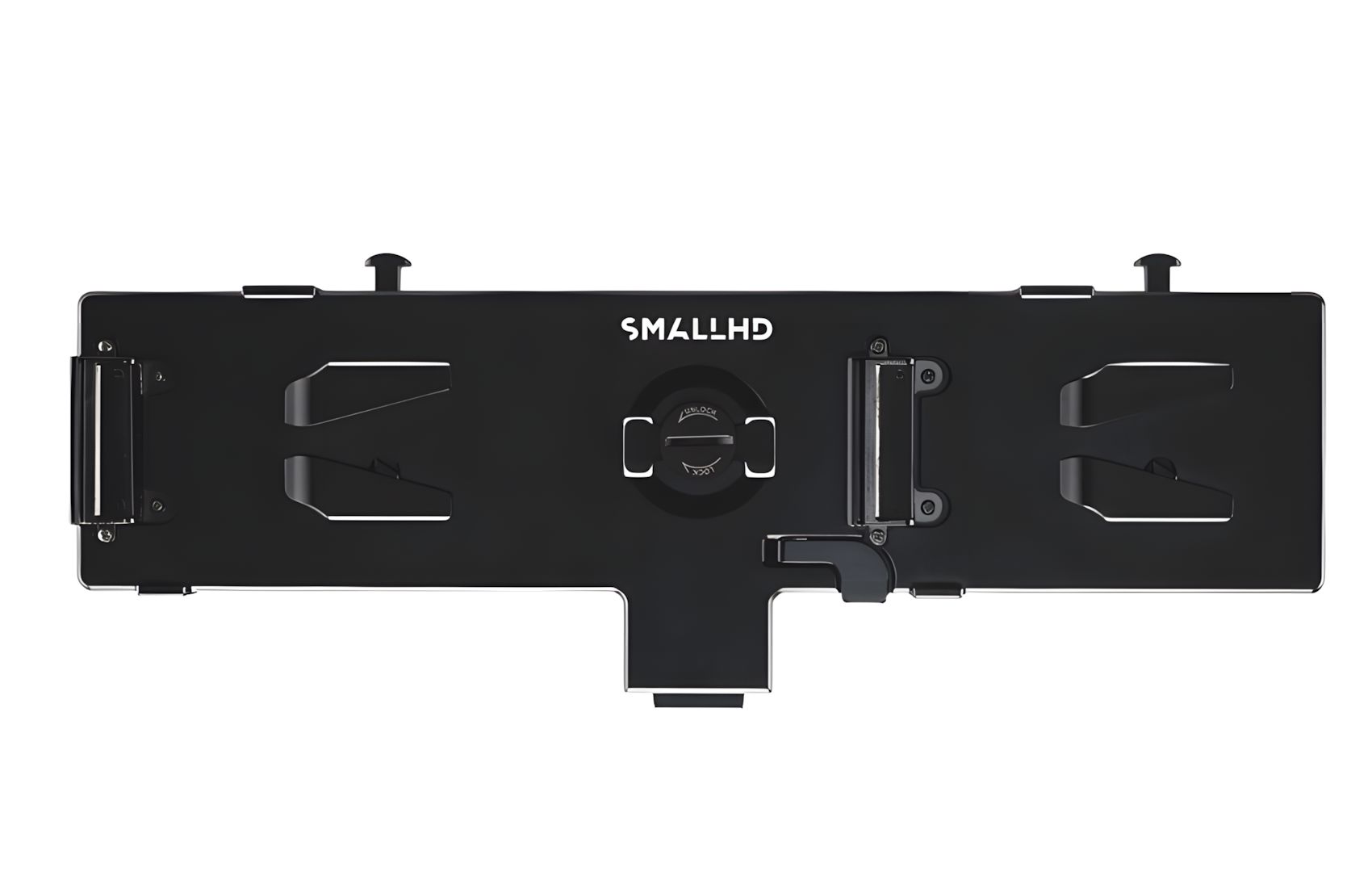

Dual-GM/VM Battery Plate (sold separately)

Source: https://store.smallhd.com/collections/all/products/cine-13?product_id=6573204209797&variant_id=39407200960645&product_handle=cine-13

STATUS

Status: New
Availability: Available on order: 15 Business Days
Monitor Type: Preview Monitor

PANEL

Panel Size: 13"
Panel Type: LCD IPS
Panel Resolution: 4K: 3840 x 2160pixels(16:9 aspect ratio)
Pixel Density (PPI): 338
Panel Aspect Ratio: 16:9
Input Resolutions: HD 1080: 1920x1080pixels(16:9 aspect ratio)
UHD: 3840x2160pixels
4K: 4096x2160pixels
Frames Supported: 24P/25P/30P/50P/60P @4096x2160Pixel
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
Contrast: 1300:1
Brightness: 1500 nits
Colors: 100% Rec.709
Color Depth: 10-bit

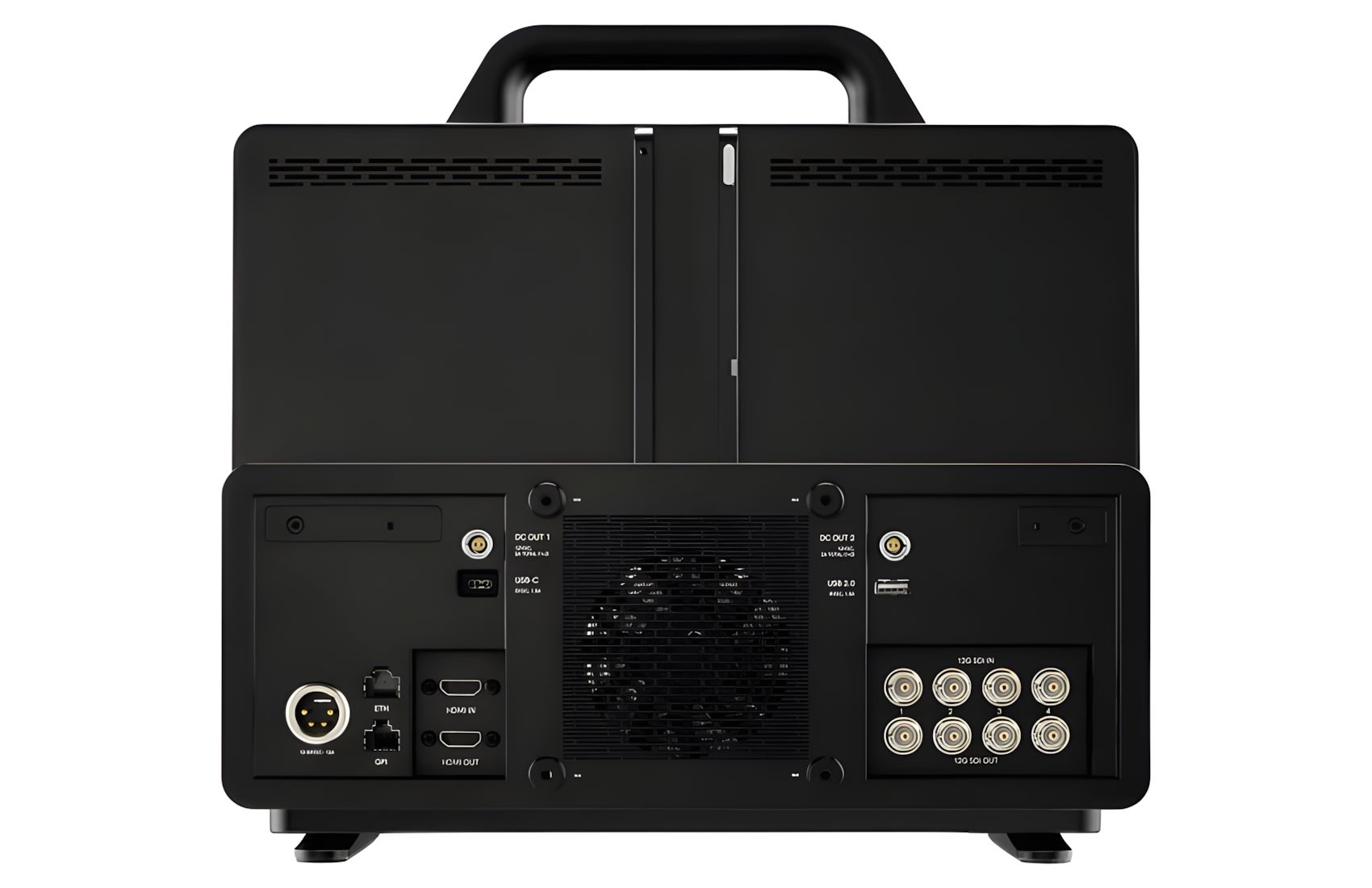

CONNECTIONS

Video inputs: 12G/3G/HD/SD-SDI (BNC) x4
HDMI x1
Video outputs: 12G-SDI x4
HDMI 1 (Coming Soon)
Audio inputs: Embedded audio SDI x2
Embedded audio HDMI x1
Audio outputs: Jack 3.5mm x1
Embedded Audio SDI x2
Embedded Audio HDMI x1
PC Connections: USB
GPI
Ethernet RJ-45

GENERAL FEATURES

Monitor Features: Waveform
Vectorscope
Histogram
Focus Assist
Zebra
Peaking
Zoom
False Color
Image Flip
DSLR Scale
Overlay - Scan Mode
3D LUT Support
RGB Parade
Audio Meters
Cross Convertion

MORE SPECIFICATIONS

Extras: SD Card for LUTs, Captured Images, Image Overlays.
Power: 4pin XLR DC input
2-Pin Lemo DC output
USB DC output
USB-C
Power Consumption: 210Watt
4-pin XLR --> (12~34V/12A)
2-pin Lemo --> (12V/2A)
USB 2.0--> (5V/1.5A,2.4A)
USB C--> (5V/2.4A)
Country of Origin: USA
Warranty: 1 Year
