Megamon 22S HDR V-Mount

STATUS

Status

New

Availability

Available on order: 15 Business Days

Monitor Type

Preview Monitor

PANEL

Panel Type

LCD TFT

Panel Resolution

Full HD 1920x1080pixels

Pixel Density (PPI)

102

Panel Aspect Ratio

16:9

Input Resolutions

HD 720: 1280x720pixels
HD: 1920x1080pixels
2K: 2048 x 1080pixels
UHD: 3840x2160pixels
4K: 4096x2160pixels

Frames Supported

24P/25P/30P @4096x2160Pixel
24P/25P/30P @3840x2160Pixel
24P/25P/30P/50P/60P @2048x1080Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel.

Contrast

1100:1

Brightness

1500 nits

Color Depth

10-bit

Viewing Angle

178 Degrees

CONNECTIONS

Video inputs

3G/HD/SD-SDI (BNC) x2
HDMI x1

Video outputs

3G-SDI x2

PC Connections

USB
USB C

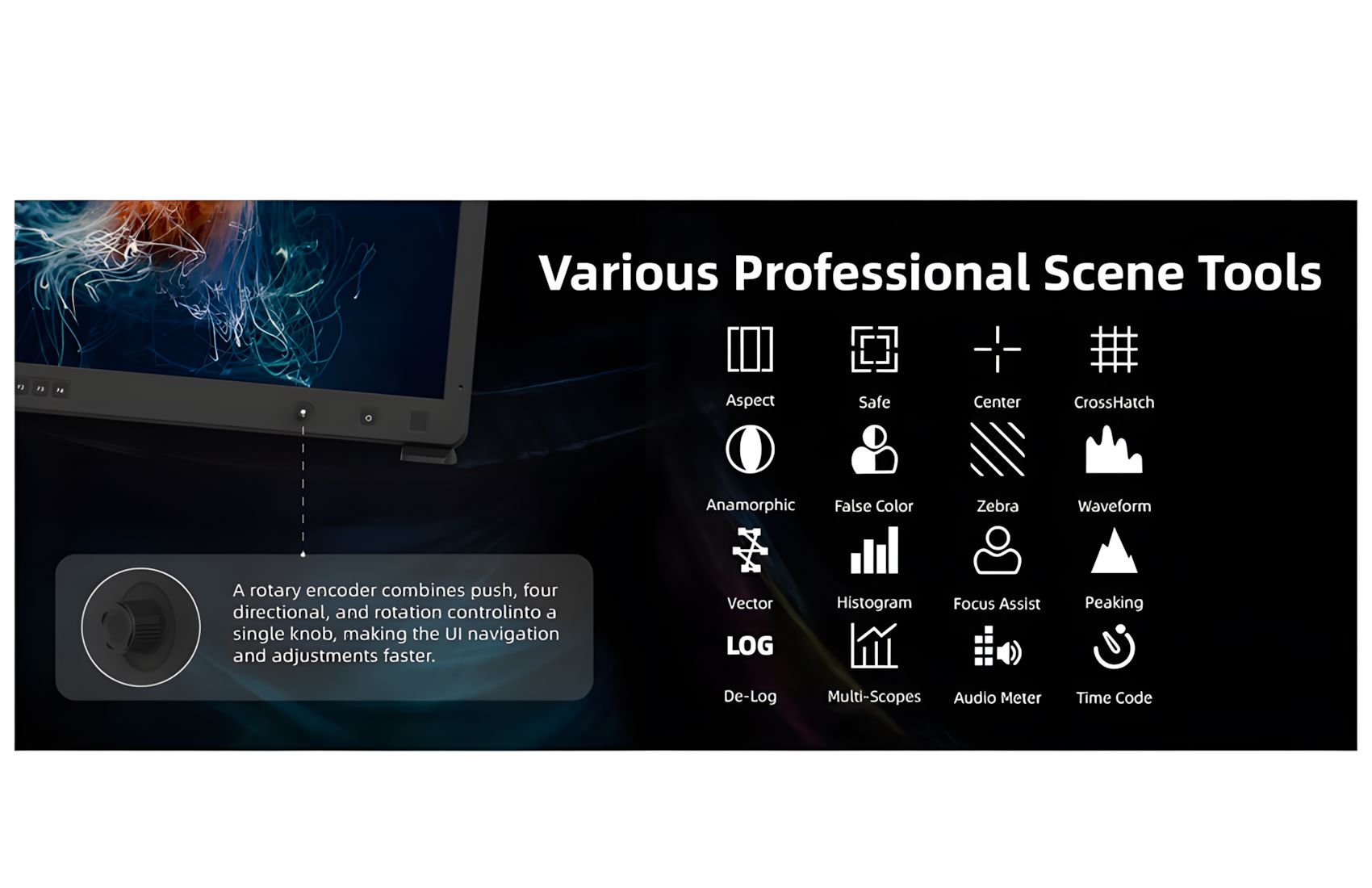

GENERAL FEATURES

Monitor Features

Waveform
Vectorscope
Histogram
Focus Assist
Zebra
Peaking
False Color
Anamorphic
3D LUT Support
Audio Meters
Timecode Display
HDR (high dynamic range)

MORE SPECIFICATIONS

Extras

Mounting Style: Vesa Mount(retail)/C-stand Mount.

Power

V-Lock Type Battery
AC 240V
DC input

No. of battery slots

1

Power Consumption

46 Watts
11-17V/5A DC input.
100～240V 50/60Hz AC input.

Country of Origin

China

Warranty

6 Months

PHYSICAL

Total Dimensions (LxWxH)

51.7 x 31.9 x 7.5 cm

Total Weight

6.4 kg

Weight Details

Body Only
