Feelworld Monitor

LUT7-PRO HDMI

MFR# LUT7PRO BLK# 537-0048

in-Store Price: 236,62€ + VAT

Online Price: 227,15€ + VAT

On-Camera Monitor 4K/HD
7" LCD IPS with LED Backlight
Brightness: 2200nits - Contrast: 1200:1
HDMI 4K Input- Output

2pcs in stock
Immediate Shipping

Ideal Filming Crew, Director, AC and DP Monitor

Easy monitoring and focus, flexible mobility on set

The LUT7 PRO equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. FEELWORLD LUT7 PRO is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and SD card slot on the side. There are an F970 battery plate and an install/ like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. The outer frame features standard ¼" mount points on the bottom, left and right for attaching it to cameras and rigs. This design detail makes the LUT7 PRO easy to attach to a camera and easy to share with a team member or client on.

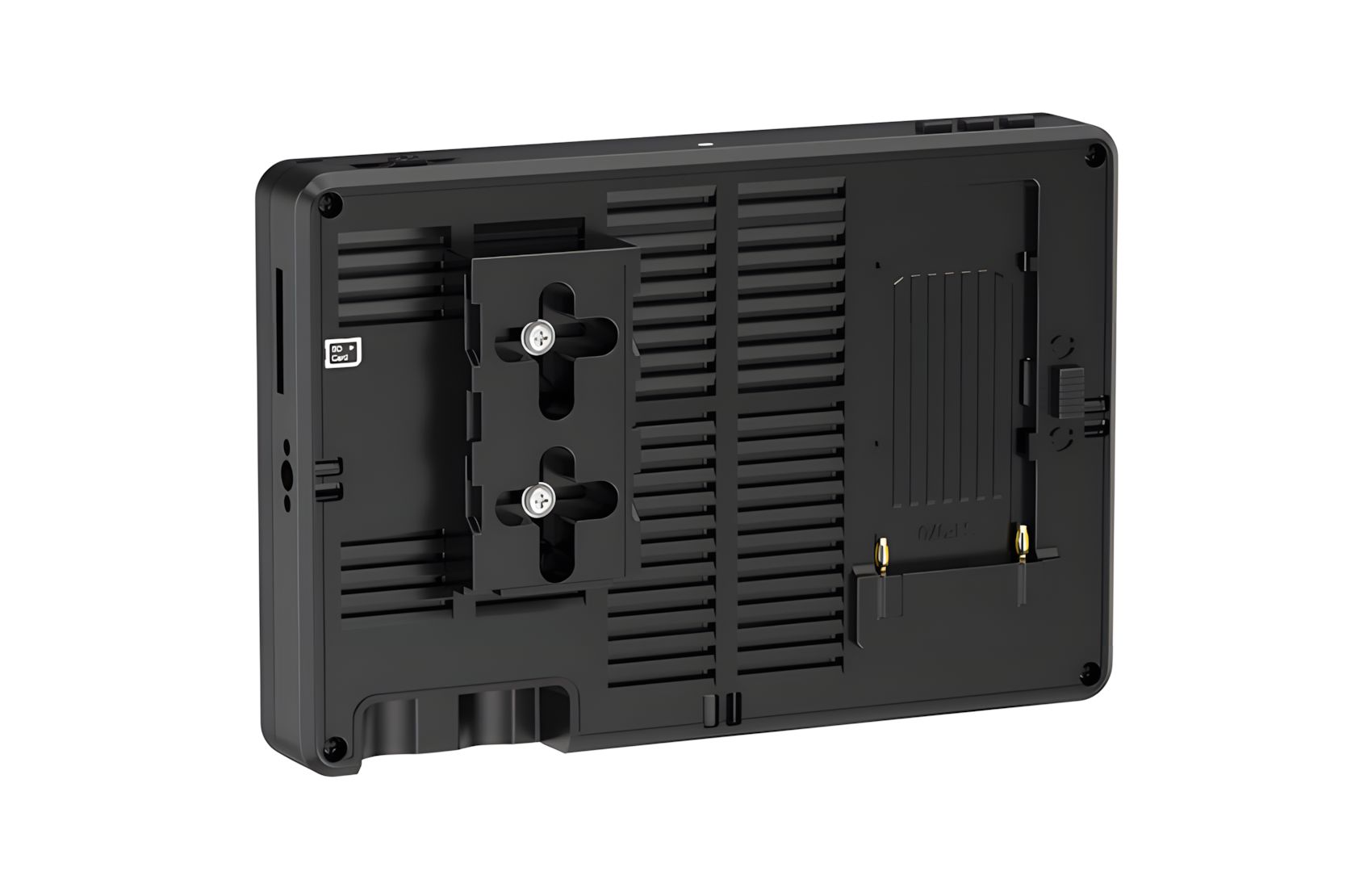

Innovative External Install and Power Design

Simplify your photography equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery. This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment. The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.

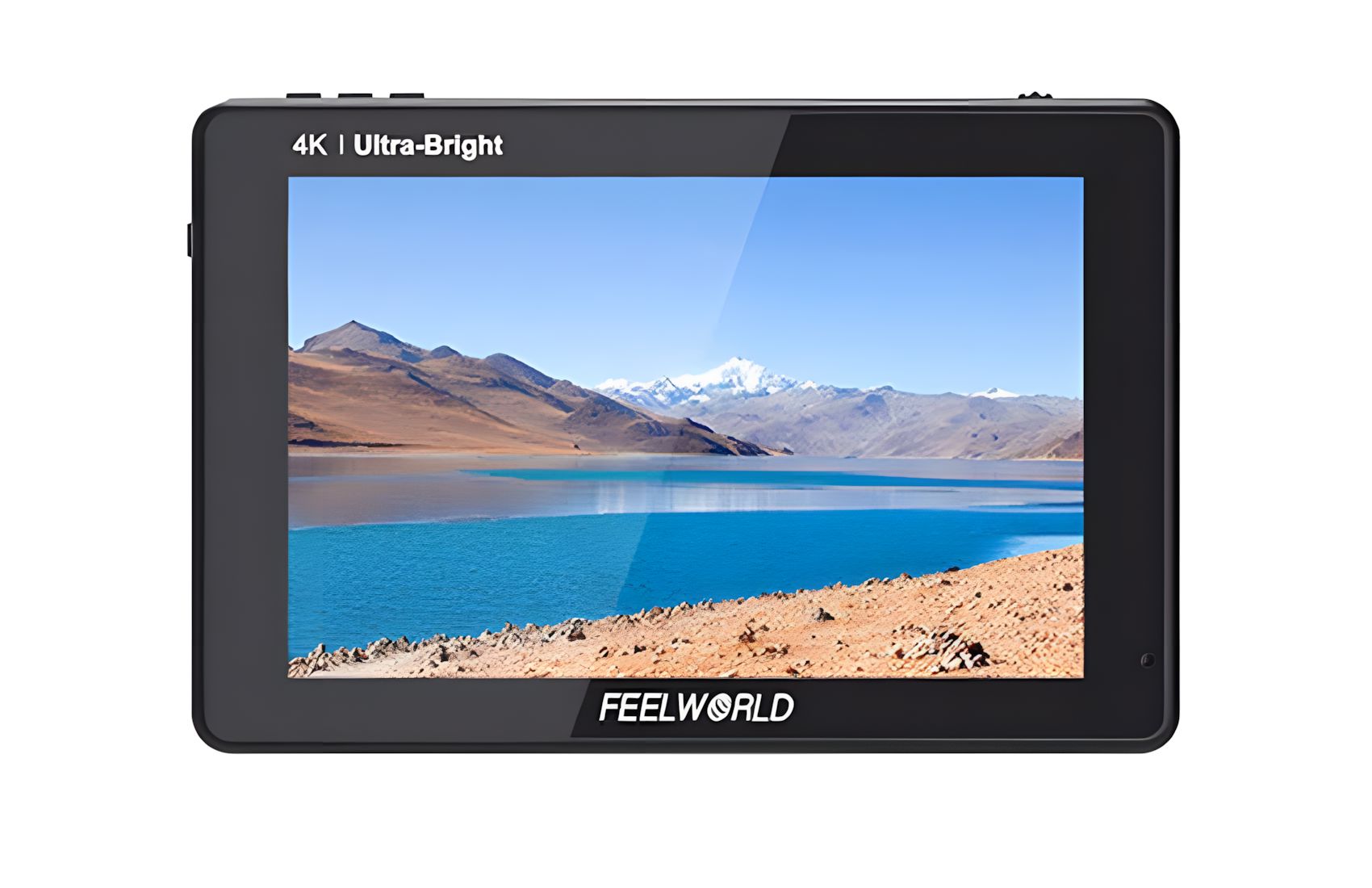

High Resolution, More Detail In Field Shooting

Viewing clearly and capture every detail

The FEELWORLD LUT7 PRO enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

Accurate Color Reproduction

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

hdmi field monitor

dslr video monitor

Load Your 3D LUTs，Preview Filming Look in Field Shooting
Support 50 custom LUTs

Some cameras can output logarithmic color space to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG or upload .cube files. LUT7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always. (HDMI can't support output the LUT)

HDR Monitoring

What you see is what you get

LUT7 PRO has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting.

Support Touch Screen and Button Control Menu

You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.

Power Your DSLR or Mirrorless Camera

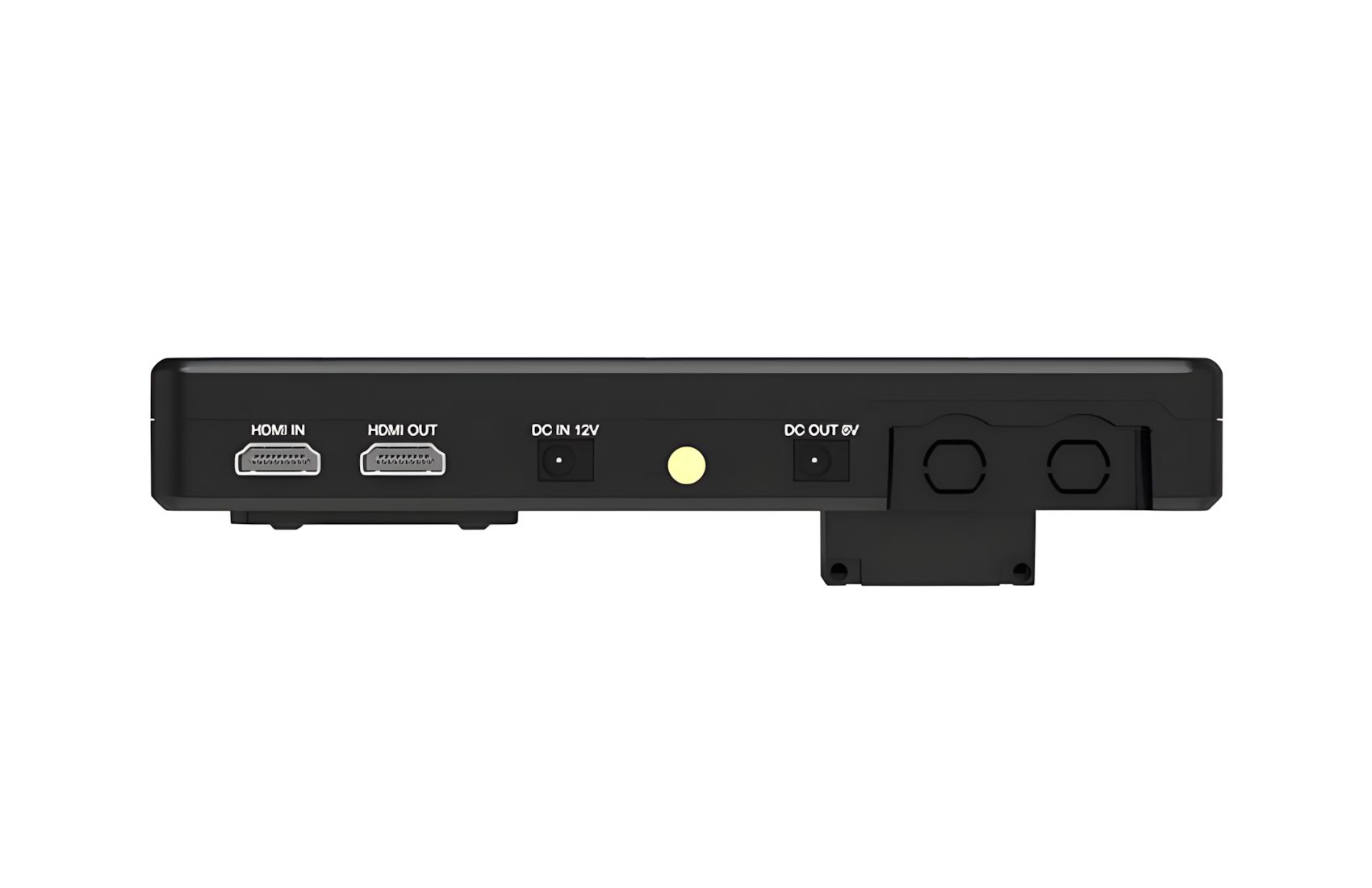

The FEELWORLD LUT7 PRO is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the LUT7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT7 PRO extends camera run-time, while providing a more usable display.

Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.

Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

Convenient Mounting - Tilt Arm

Every LUT7 PRO monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• The LUT7 PRO monitor can be rotated 360 degree with two different ways, for viewing convenience. (1.The monitor can be rotated 360 degree from up to down through the side mounting point of tilt arm; 2. The monitor can be rotated 360 degree from left to right through the bottom mounting point of tilt arm).

• Secure and lightweight mounting via shoe mount or 1/4"-20 thread.

• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

•There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws.

Flexible Power Supply Mode

There is a battery slot on the rear side of the monitor, which can be installed with standard Sony L series batteries to provide long-lasting power for your bright screen!

Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series. LUT7 PRO monitor have 2200nit bright, power consumption is greater than normal brightness monitors, we recommend you use the Sony F970 battery to power monitor. Used the F970 battery (7.4V 6600mah), the monitor can working about 3 hours.

Note: Different specifications of the battery have different capability. The working time for the monitor will be different. Higher capability (working time) will be longer.

The battery not including, please purchase separately.

Source: https://feelworld.ltd/products/feelworld-lut7-pro-7-inch-2200nit-touchscreen-3dlut-camera-field-monitor-waveform-f970-external-kit?_pos=1&_psq=LUT+7+PRO&_ss=e&_v=1.0

STATUS

Status: New
Availability: Available on order: 15 Business Days
Monitor Type: On Camera Monitor
On Camera Monitor

PANEL

Panel Size: 7"
7"
Panel Type: LCD IPS
LCD IPS
Panel Resolution: 1920x1200pixels
1920x1200pixels
Panel Aspect Ratio: 16:10
16:10
Aspect Ratio Switch: Yes
Yes
Input Resolutions: SD 576i PAL(16:9)
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
UHD: 3840x2160pixels
UHD: 3840x2160pixels
4K: 4096x2160pixels
4K: 4096x2160pixels
Frames Supported: 24P @4096x2160Pixel
24P/25P/30P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
24P/30P/50P/60P @1280x720Pixel
25P/50i @720x576Pixel
30P/60i @720x480pixel
Contrast: 1200:1
1200:1
Brightness: 2200 nits
2200 nits
Viewing Angle: 160 Degrees
160 Degrees

CONNECTIONS

Video inputs: HDMI 4K
HDMI 4K 1
No. of Video outputs: 1
No. of Audio inputs: 1
No. of Audio outputs: 1/1

GENERAL FEATURES

Monitor Features: Waveform
Waveform
Vectorscope
Vectorscope
Histogram
Histogram
Zebra
Zebra
Peaking
Peaking
Zoom
Zoom
False Color
False Color
Image Flip
Image Flip
Image freeze
Image freeze
Pixel to Pixel
Pixel to Pixel
Overlay - Scan Mode
Overlay - Scan Mode
Guides - Safety Marker
Guides - Safety Marker
Ratio Marker
Ratio Marker
3D LUT Support
3D LUT Support
RGB Parade
RGB Parade
Audio Meters
Audio Meters
Tally: No
No
Speakers: No
No

MORE SPECIFICATIONS

Extras: SD Card Slot fot LUT upload
Power: Sony NP-F970 Type battery
Sony NP-F970 Type battery
Power adapter
Power adapter
No. of battery slots: 1
1
Power Consumption: 20W
7-24V (2A) DC input
Country of Origin: China
China
Warranty: 6 Months
