Smallrig Tripod
Potato Jet Tribex Hydraulic SE
MFR# 5305
BLK# 394-0822
in-Store Price: 341,96€ + VAT
Online Price: 328,28€ + VAT
- Tripod Kit
- For Video Cameras
- 6KG Max. Head Payload
- 166cm Max.Height

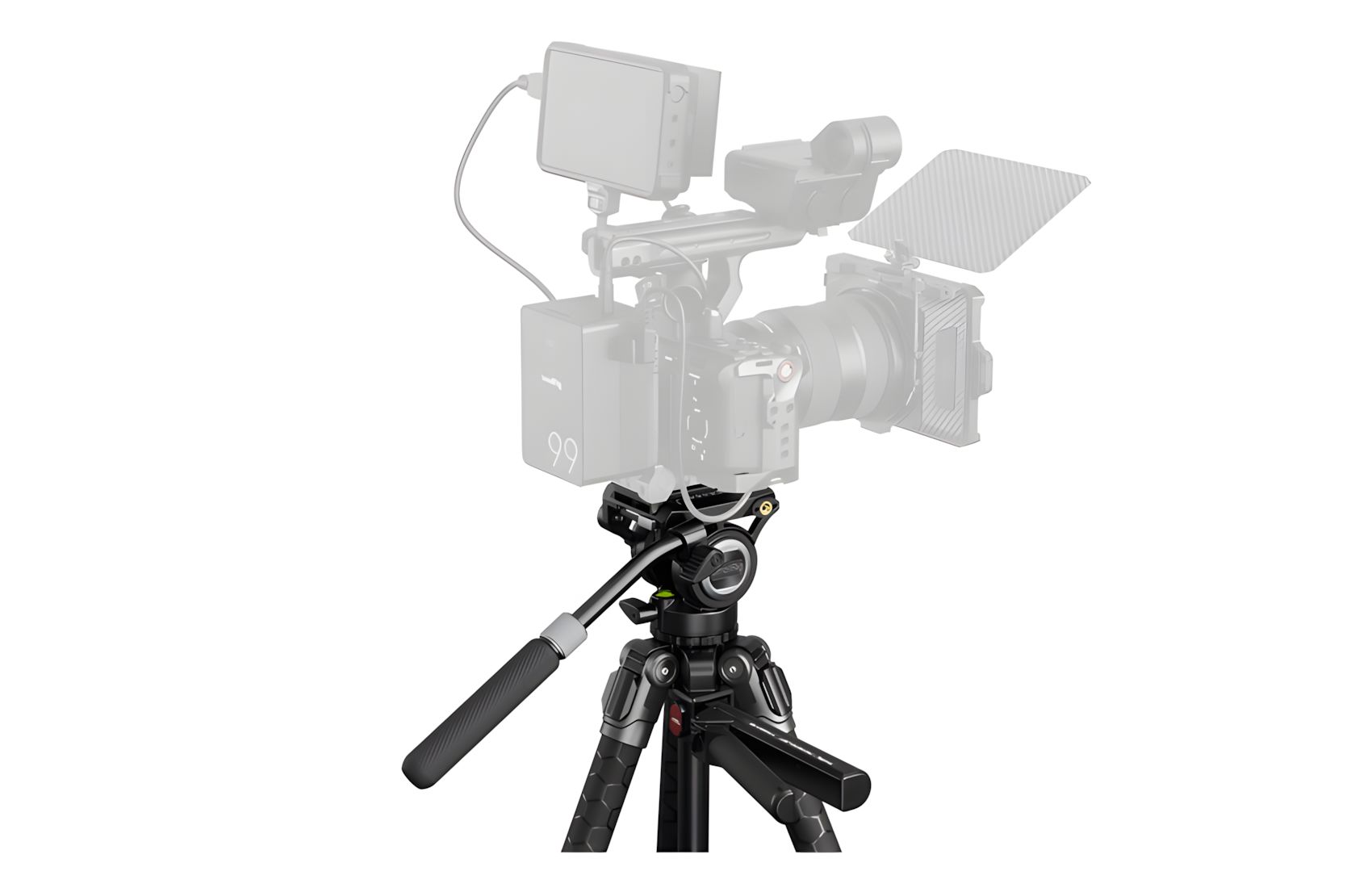

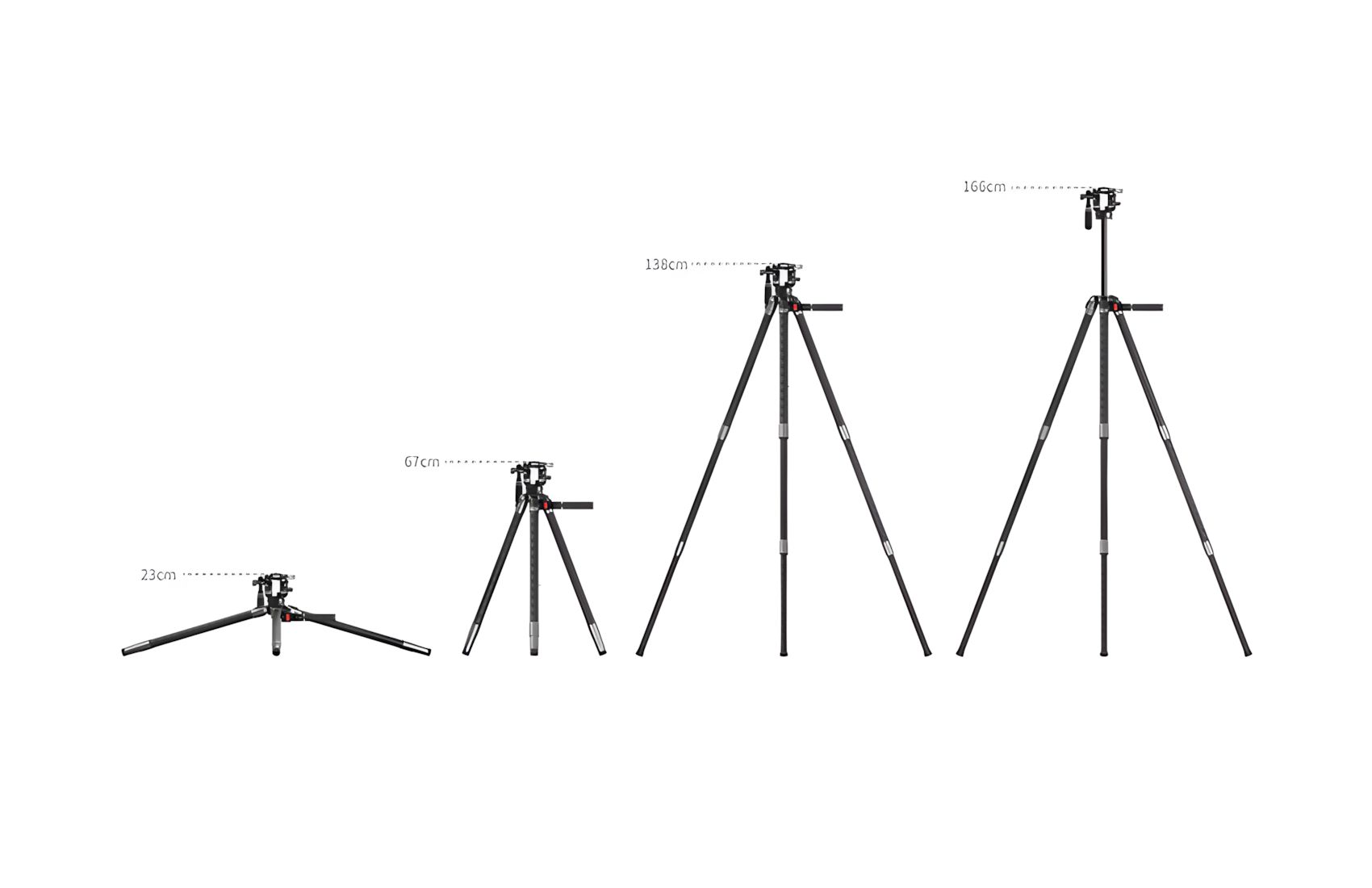

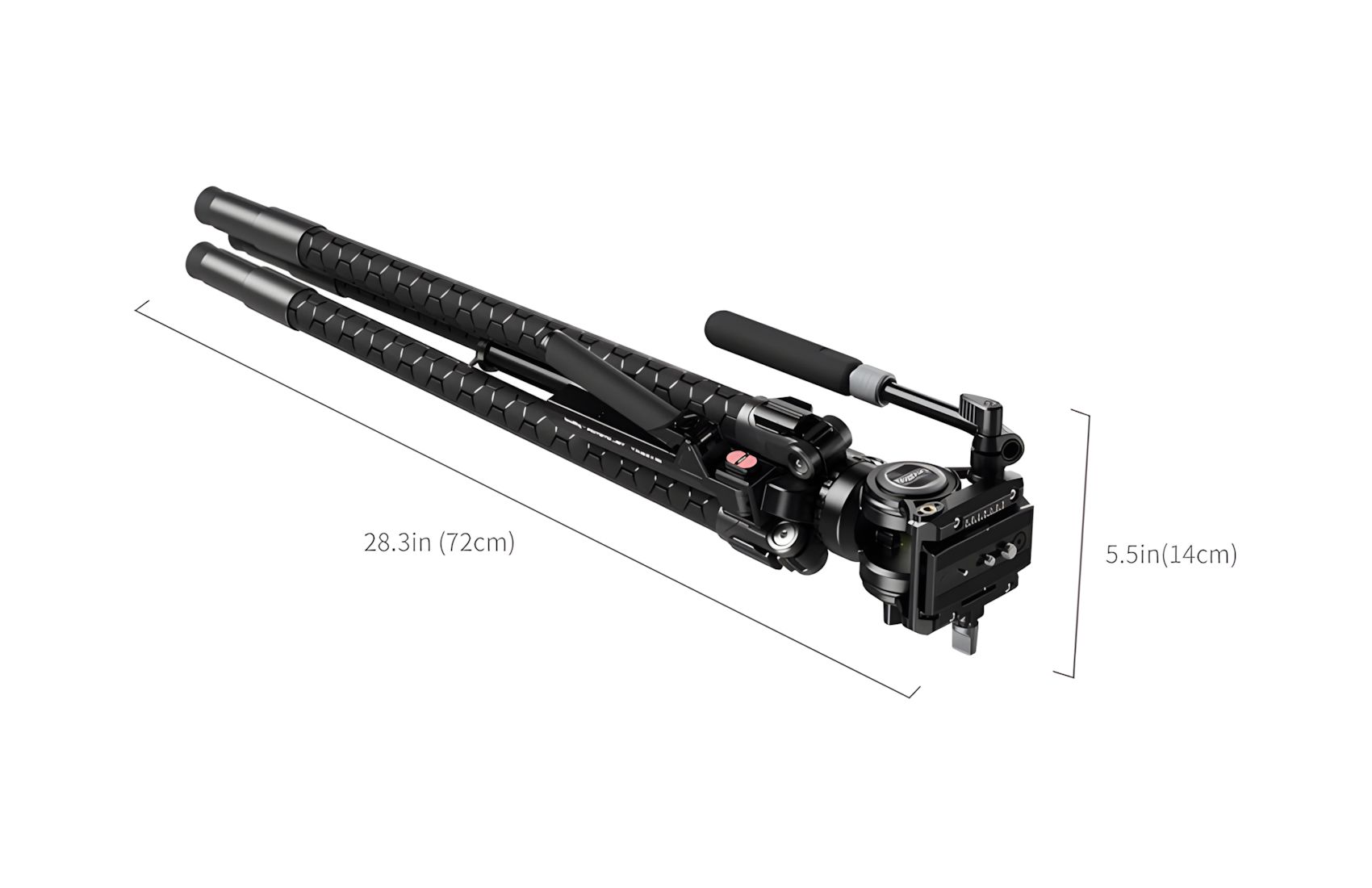

SmallRig x Potato Jet TRIBEX SE Hydraulic Tripod 5305 is designed for professional outdoor filmmakers, offering swift and convenient operation. Featuring X-Clutch hydraulic technology, squeezing a single clutch allows all legs to rapidly unfold, adjust the angle, and automatically lock in just one second, providing filmmakers with a seamless experience. The clutch can also be adjusted to 0° and 90° to accommodate various shooting scenarios. Constructed with aluminum alloy, both the legs and center column ensure a lightweight design while delivering exceptional stability and high load-bearing capacity. Operating altitude ranges from 23cm (9.1in) to 166cm (65.3in), and a compact storage length of 72cm (28.3in). The compact design of the tripod allows it to fit in any standard luggage (28").

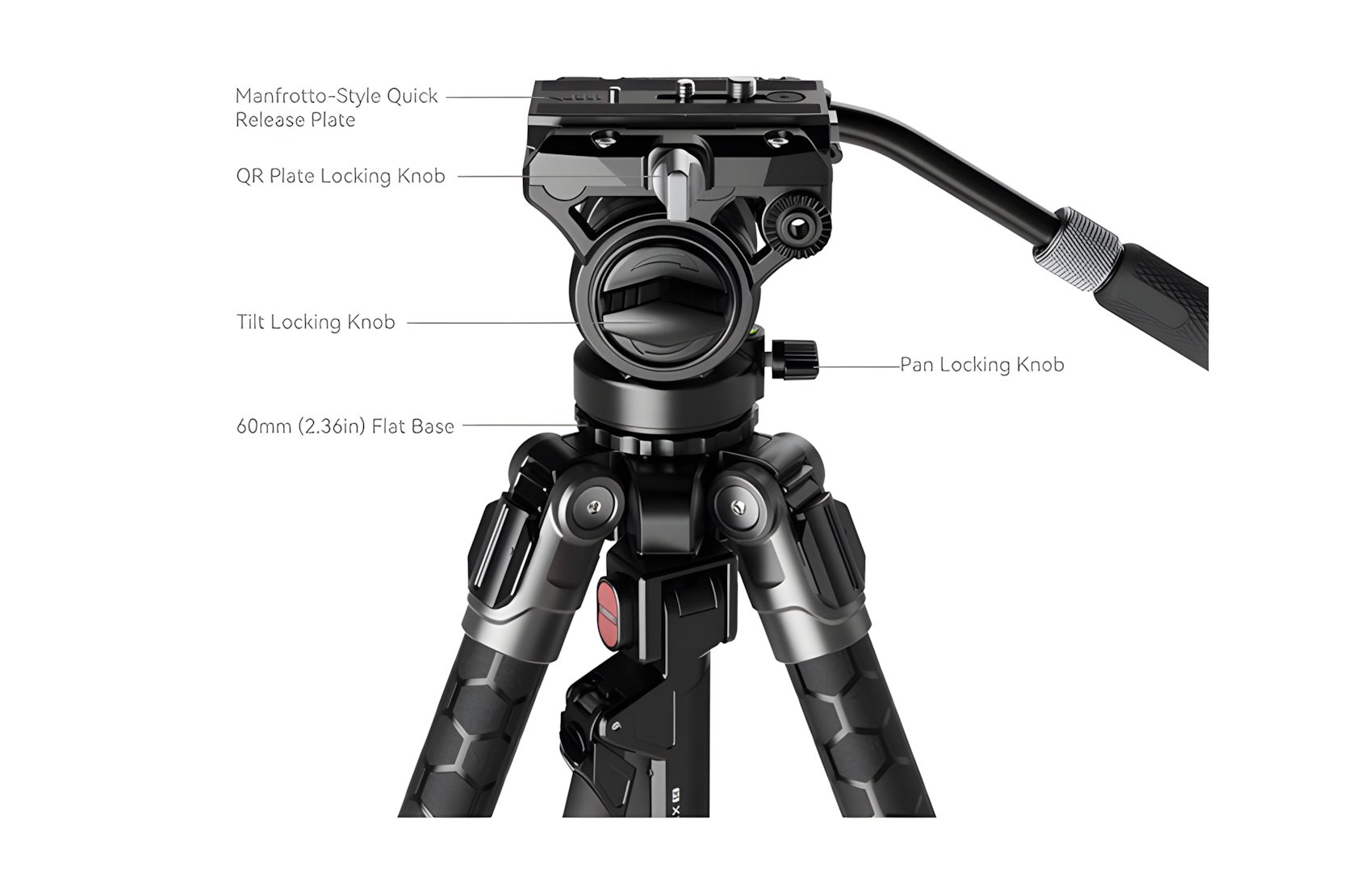

The kit includes a compact fluid head, featuring a damping system, that allows you to pan the camera smoothly. When its center of gravity height is put at 50mm, the panning and pre-set fixed counterbalance system can help precisely control the camera or other rigs weighing up to 4kg for great counterbalance. The video head can carry as much as 6kg (13.2lb). It has a newly-designed snap-on quick-release plate mount, a more efficient mounting solution than traditional slide-on ones, which is the JI RS series quick release plate and 501PL quick release plate, compatible to realize a free switch between stabilizer shooting and tripod shooting. The tripod also features 1/4"-20 threaded holes for attaching accessories like magic arms, along with a built-in flat head screw for convenient camera installation and removal. It weighs only 3.7kg (8.1lbs).
Note:
1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.

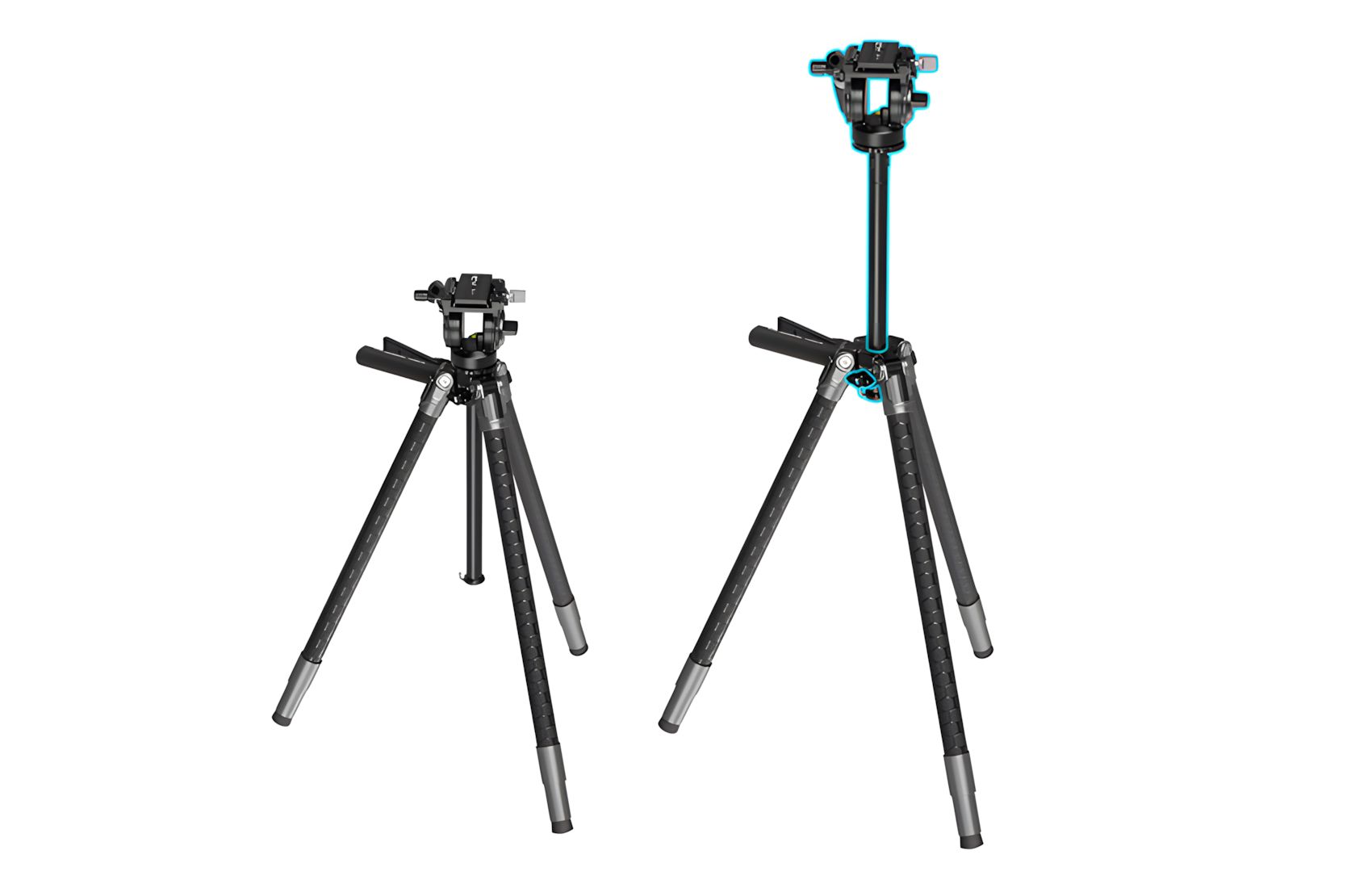

3. After using the short center column, mounted on the center column, need to ensure that the locking status.
4. Max payload of head: 6kg / 13.2lb (center column raised, leg angle at 22°, height at 166cm / 65.3in).
5. The weight capacity of the tripod head is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the center of gravity.
6. Max payload of tripod: 15kg / 33lbs (center column not raised, tripod head detached, leg angle at 22°, height at 130cm / 51.2in).
7. After soaking in water, it needs to be dried before use.
Work With
501PL Quick Release Plate
DJI RS Series Quick Release Plate
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Tripod Type
-
Tripod Kit for Handheld Cameras
Tripod Kit for Handheld Cameras
Tripod Kit for Shoulder Cameras
Tripod Kit for Shoulder Cameras
- Head Type
-
Fluid Pan-Tilt Head
Fluid Pan-Tilt Head
GENERAL FEATURES
- Kit Payload (KG)
-
15.0
15.0
- Kit Max Height (cm)
-
166.0
166.0
- Kit Min Height (cm)
-
23.0
23.0
- Kit Transport Length (cm)
-
72.0
72.0
HEAD FEATURES
- Head Payload
-
6.0
6.0
- Counter Balance
-
Yes, Fixed
Yes, Fixed
- Pan Drag
-
Yes, Fixed
Yes, Fixed
- Tilt Drag
-
Yes, Fixed
Yes, Fixed
- Tilt Range
-
90° /-65°
- Camera Mount
-
1/4" Screw
1/4" Screw
3/8" Screw
3/8" Screw
- Head Mount
-
1/4" Thread
1/4" Thread
3/8" Thread
3/8" Thread
- Wedge Plate Type
-
Quick Release Plate
Quick Release Plate
- Pan Bar
-
No
No
LEG FEATURES
- No. of Leg Sections
-
3
3
- Type of Leg Lock
-
Quick lock (All sections release mechanism)
Quick lock (All sections release mechanism)
- Leg Spirit Level
-
Yes
Yes
- Material
-
Aluminum
Aluminum
- Color
-
Black
Black
MORE SPECIFICATIONS
- Extras
-
X-Clutch Hydraulic Technology.
60mm Head Flat Base
- Country of Origin
-
China
China
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 88 x 15 x 15 cm
- Total Weight
- 4.7 kg
- Tripod Kit
- Allen Wrench
- Storage Bag
- Smartphone Holder
- Guarantee Card
- Brochure
- Smallrig-Brochure-GR.pdf
