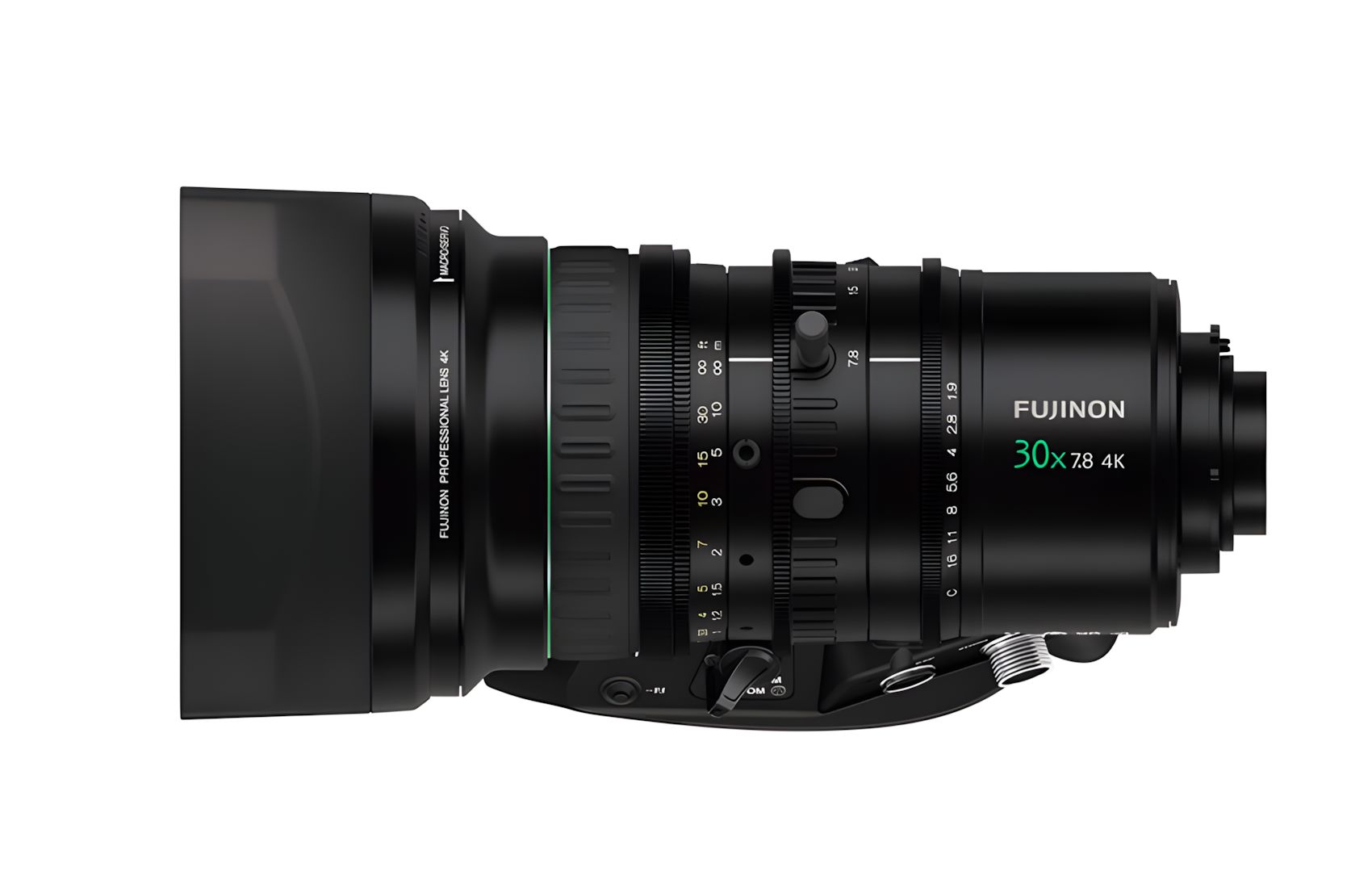

Fujinon Lens
LA 30x7.8 4K ENG
MFR# LA30x7.8BRM-XB2
BLK# 766-0003
in-Store Price: 6.082,70€ + VAT
Online Price: 5.839,39€ + VAT
- 4K/HD Broadcast Zoom Lens
- 30x7.8 2x Extender
- 7.8-234mm or 31-940mm(35mm)
- f/1.9 - f/3.9 Max Aperture
Broadcast zoom lens “FUJINON LA30x7.8BRM-XB2”
Highest-in-class 30x zoom range covering focal lengths of 7.8mm-234mm featuring a compact and lightweight design
The lens boasts a highest-in-class 30x zoom, covering focal lengths of 7.8mm-234mm, while maintaining a compact and lightweight design, measuring just 190mm and weighing 1.8kg. This is achieved by adopting a rear focus mechanism*2, and optimizing the lens configuration and control methods, which Fujifilm has cultivated over many decades of lens design.
Since it covers the range with a compact and lightweight body, it can reduce the burden of shoulder-mounted operation and enable ease of use in capturing a wide variety of scenes.
*2 A mechanism that focuses by moving the rear part of the lens
High functionality enabled by the newly developed drive unit
The newly developed drive unit features high resolution 16-bit encoders for extremely accurate position detection of zoom, focus and iris in virtual and remote production, which contributes to streamlined production operations.
The lens achieves maximum speed of 1.0 sec and minimum speed of 120 sec when zooming from wide to tele end. This versatile range helps to capture a fast-moving subject during live sport broadcast, while enabling ultra-slow zooms during live music to deliver creative capture of the footage.
4K optical performance across the entire zoom range
By utilizing the latest optical simulation technology and suppressing various type of aberrations, the lens achieves 4K optical performance across the entire zoom range. In addition, Fujifilm’s unique multi-layer coating "HT-EBC (High Transmittance Electron Beam Coating)" boasts high light transmittance and accurate color reproduction.
Equipped with features that support comfortable shooting
A single button on the drive unit provides electronic flange back*3 adjustment, providing faster and more efficient adjustment compared to the manual process.
The macro function allows for closer than M.O.D. focus up to 0.05m from the front of the lens by sliding the unique focus ring forward. This enables the operator to film extreme close-ups without letting go of the focusing hand.
*3 Distance from the lens’s flange to a camera’s image sensor
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
GENERAL FEATURES
- Focal Length
-
7.8-187mm
7.8-187mm
- 35mm Equivalent
-
31-940mm [1x]
62–1880mm [2x]
- Zoom
-
27X
27X
- Maximum Aperture (f/T)
-
1.9
1.9
- Supported Sensors
-
2/3"
2/3"
- Min. Focus Distance (cm)
-
80.0
- Auto Focus Support
-
Yes
Yes
- Optical Image Stabilizer
-
No
No
- Macro
-
Yes
Yes
- Manual Rings
-
3 Rings(Zoom, Focus, Aperture)
3 Rings(Zoom, Focus, Aperture)
- Power Zoom
-
Yes
Yes
- Remote Zoom Connector
-
8pin
8pin
- Filter Diameter (mm)
-
95
MORE SPECIFICATIONS
- Extras
-
Max Apertures: F1.8 (WIDE) - F2.85 (TELE) [1x]
- Country of Origin
-
Japan
Japan
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 19 x 10 x 10 cm
- Total Weight
- 1.7 kg
- Weight Details
- Body Only
- Lens
- Instructions
- Manual
- Fujinon_LA30x7-8BRM-XB2_Manual.pdf
- Brochure
- Fujinon_Broadcast_Cine_Catalog.pdf
