Avitech MultiViewer

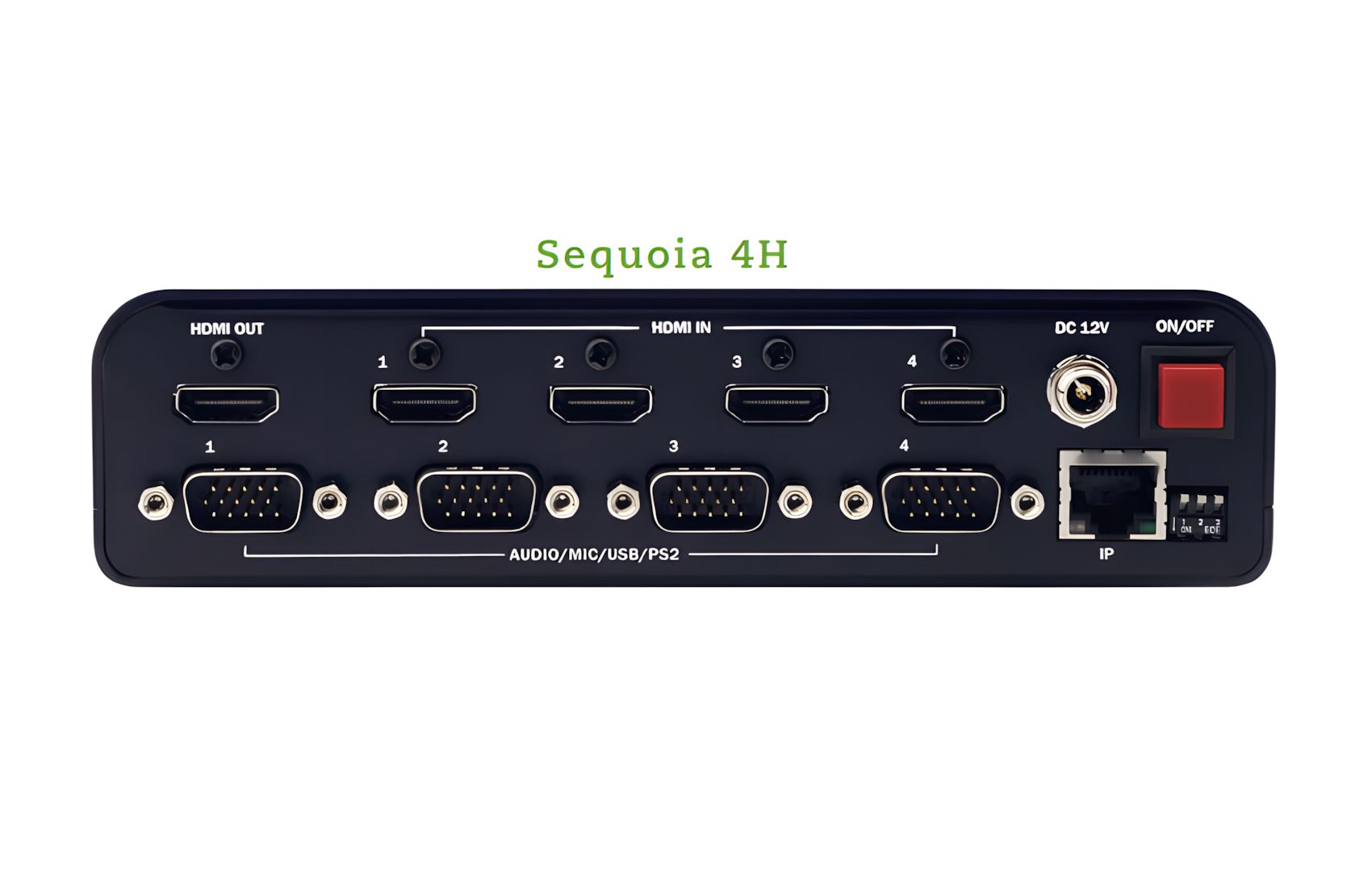

Sequoia-Solo-4H
MFR# Sequoia-Solo-4H
in-Store Price: 2.182,05€ + VAT
Online Price: 2.094,77€ + VAT
- Video Multiviewer
- 4 HDMI inputs & HDMI output
- Up to 1920x1080pix 50P/60P
- Cascading with USB connection
Flexible switching mechanisms allows users to simultaneously monitor up to four HDMI/DVI (4H) or a mix of HDMI/DVI/SDI/Composite (2H2U) connected devices on a single monitor.
Streamlined Operation: Intuitive user interface and commands for monitoring and controlling multiple computers with just one set of keyboard and mouse.
Unlimited Versatility: Freely adjustable features along with cascading ability suit applications from individual users to large-scale institutions.
Sleek Design: Both stand-alone and rack mountable designs.
The Sequoia 4H and 2H2U empower multi-tasking on an unprecedented level.
With integrated mouse and keyboard switcher, custom multiview display and touchscreen support, these Sequoia Solos streamline monitoring and operation of four computer/video systems with a single set of screen, mouse and keyboard.
The high scalability through cascading multiple Sequoia units allows user to access up to 20 computers from a single mouse/keyboard console. With plug-and-play installation and intuitive control, the Sequoia 4H and 2H2U facilitate productive management of multiple systems and ensure clutter-free working environments.
Features
Streamlined Operation: Intuitive user interface and commands for monitoring and controlling multiple computers with just one set of keyboard and mouse.
Unlimited Versatility: Freely adjustable features along with cascading ability suit applications from individual users to large-scale institutions.
Sleek Design: Both stand-alone and rack mountable designs.
The Sequoia 4H and 2H2U empower multi-tasking on an unprecedented level.
With integrated mouse and keyboard switcher, custom multiview display and touchscreen support, these Sequoia Solos streamline monitoring and operation of four computer/video systems with a single set of screen, mouse and keyboard.
The high scalability through cascading multiple Sequoia units allows user to access up to 20 computers from a single mouse/keyboard console. With plug-and-play installation and intuitive control, the Sequoia 4H and 2H2U facilitate productive management of multiple systems and ensure clutter-free working environments.
Features
- Plug-and-Play for easy setup; automatic sensing of input signals and optimum output resolution.
- Accommodate four computer/video sources with various formats and deliver a quad-view monitoring solution.
- Freely adjustable windows with full screen capability for custom monitoring.
- Integrated KVM switcher enables multiview layout and remote computer control via one mouse/keyboard.
- Built-in USB hubs support a variety of peripheral devices.
- USB cascade of multiple Sequoia units streamlines management of all inputs from one mouse/keyboard console.
- Seamless switching of operation between connected computers via simple mouse movement (“Surfer” feature).
- Intuitive control via on-screen displays, mouse commands, and hot-key combinations.
- Avitech Hook Software allows user to customize multiview layout and access to remote computers from a local computer.
- Integrated file and folder sharing between systems (optional).
- Touchscreen support enables control of the Sequoia unit and connected computers simply by tap of the finger.
| Feature | Sequoia 4H | Sequoia 2H2U |
| HDMI Inputs | 4 | 2 |
| DVI-I Inputs (via DVI to HDMI adapter) | 4 | 2 |
| 3G / HD / SD-SDI / CVBS Inputs | – | 2 |
| HDMI® and HDCP compliant | ✓ | ✓ |
| Max. Output Resolution | 1920 x 1200 | 1920 x 1200 |
| Configuration and Control | GUI/Hot-key | GUI/Hot-key |
| USB Hub for Remote Computer | 2 | 2 |
| Extended Mic/Audio/Speakers | ✓ | ✓ |
| Phoenix-G Software Support | ✓ | ✓ |
| Avitech Hook Software Support | ✓ | ✓ |
| Avitech ASCII Protocol Support | ✓ | ✓ |
| Touchscreen Control* | ✓ | ✓ |
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Multiviewer type
-
Multi Split
Multi Split with Free Windows scaling
- Available inputs
-
4 inputs
CONNECTIONS
- Video inputs
-
HDMI x4
- Video outputs
-
HDMI x1
- Audio inputs
-
Jack 3.5mm x1
Embedded audio HDMI x4
- Audio outputs
-
Jack 3.5mm x1
Embedded Audio HDMI x1
- PC Connections
-
USB
USB-B
USB2.0
Ethernet RJ-45
GENERAL FEATURES
- Max Resolution Supported
-
SD 480i NTSC
SD 576i PAL
HD 720: 1280 x 720pixels (16:9 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)
- Output Resolution
-
1600x1200pixels(4:3 aspect ratio)
1920x1200pixels(1.6 aspect ratio)
- Frames Supported
-
24P/25P/30P/50i/50P/60i/60P @1920x1080pixel
25P/30P/50P/60P @1280x720pixel
50i @720x576pixel
60i @720x480pixel
- Multiviewer Features
-
Quad Split
Full Screen
Free Scaling Windows
Audio Meter
BMP/UMD Label
Cascade
- Rackmountable
-
Yes, with optional mount
MORE SPECIFICATIONS
- Extras
-
Cascading up to 4 Sequoia devices.
- Power
-
Power adapter
- Power Consumption
-
25Watt (12V DC)
- Country of Origin
-
USA
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 26.1 x 4.4 x 17.4 cm
- Total Weight
- 1.26 kg
- Multiviewer
- Brochure
- Multiviewer_Sequoia_Brochure.pdf
