BlackMagic Converter
Teranex SDI Distribution 12G
MFR# CONVNTRM/EA/DA
BLK# 492-0106
in-Store Price: 513,31€ + VAT
Online Price: 492,77€ + VAT
- Video Distribution Amplifier
- 12G-SDI SD/HD/2K/4K input/output
- Up to 4096x2160pix 60P
- 4:2:2/4:4:4 8bit
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

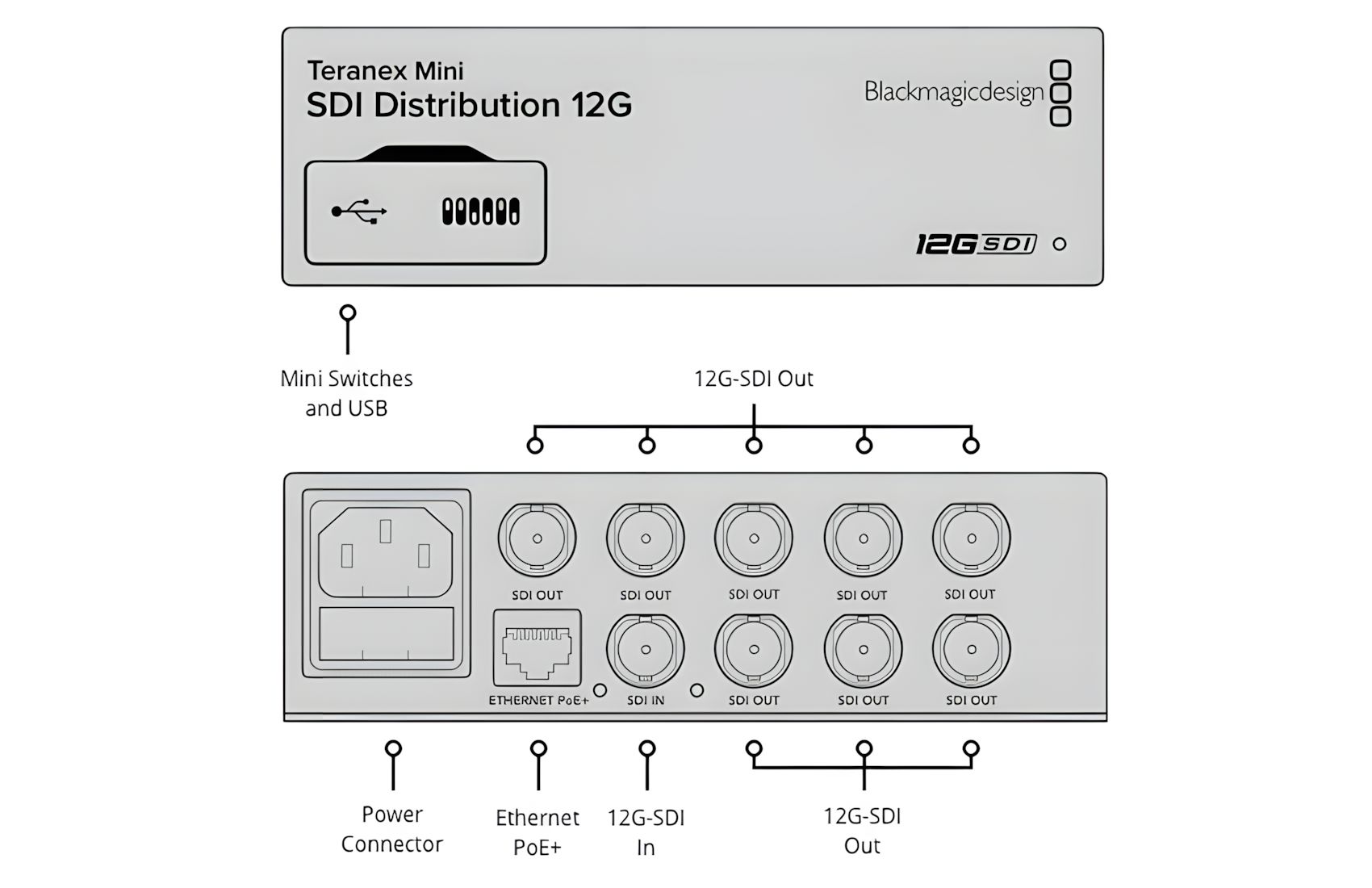

Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Embedded Audio Support
16 channels.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Reclocking
Yes
Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Embedded Audio Support
16 channels.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Reclocking
Yes
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Converter Type
-
Video Distribution Amplifier
- Power Type
-
External Power Adapter
CONNECTIONS
- Video inputs
-
12G-SDI SD/HD/2K/4K x1
- Video outputs
-
12G-SDI x8
- Audio inputs
-
Embedded audio SDI x1
- Audio Output
-
16CH Embedded Audio SDI x8
- Power inputs
-
Power Connector IEC 3pin AC x1
GENERAL FEATURES
- Max Resolution Supported
-
SD 576i PAL
HD 720: 1280 x 720pixels (16:9 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)
2K: 2048 x 1080pixels (1.89 aspect ratio)
- Frames Supported
-
24P/25P/30P @4096x2160Pixel
24P/25P/30P @3840x2160Pixel
24P/25P @2048x1080Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
25P @720x576Pixel
MORE SPECIFICATIONS
- Extras
-
Reclocking.
4:2:2/4:4:4 8bit.
Operational Voltage Range: 100 - 240V AC.
- Power
-
Power adapter
- Power Consumption
-
16 Watt
- Country of Origin
-
Australia
- Warranty
- 3 Years

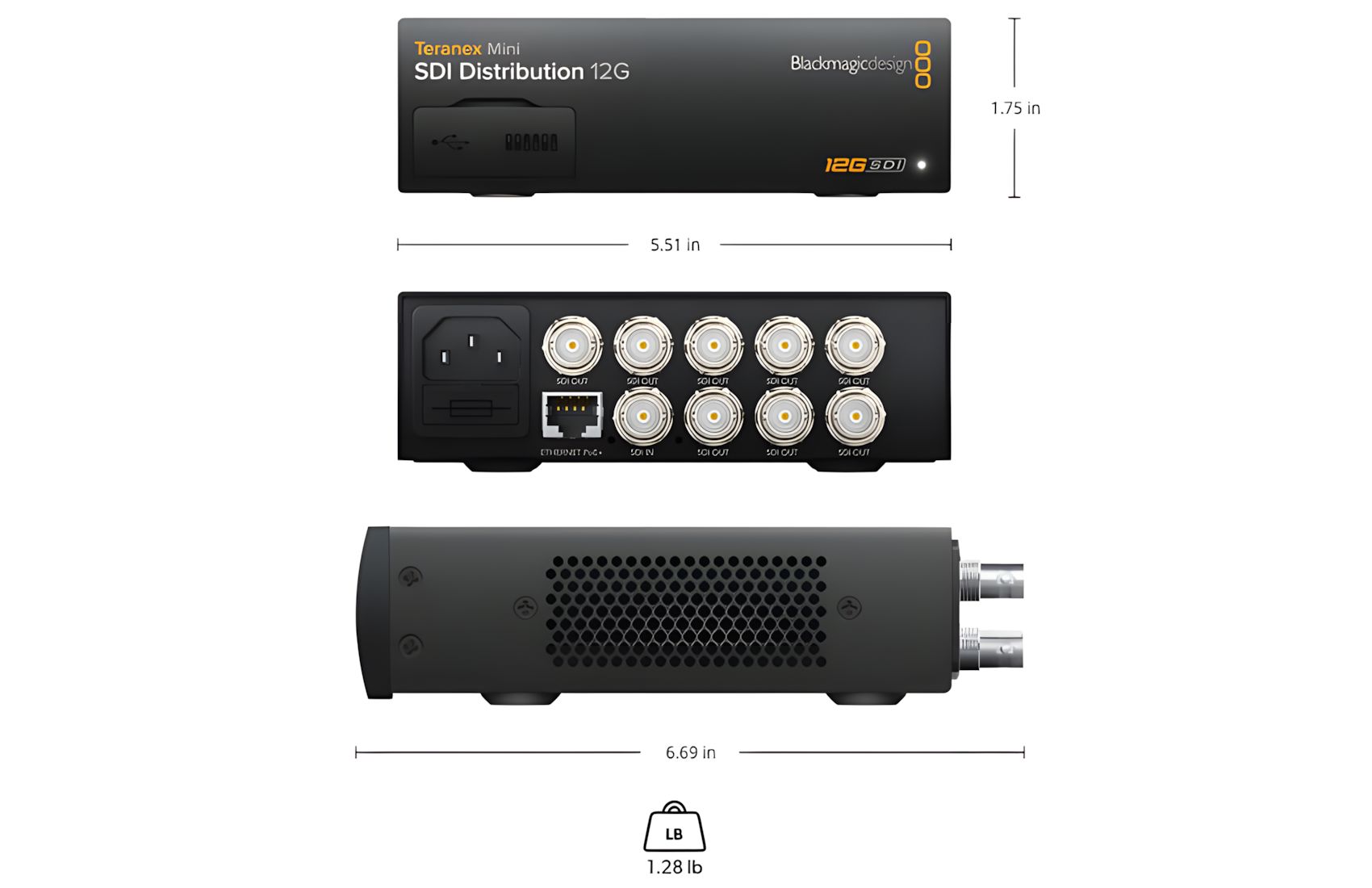

PHYSICAL
- Total Dimensions (LxWxH)
- 14 x 4.4 x 17 cm
- Total Weight
- 580 gr
- 1 x Teranex Mini - SDI Distribution 12G
- 1 x Software SD Card
-
