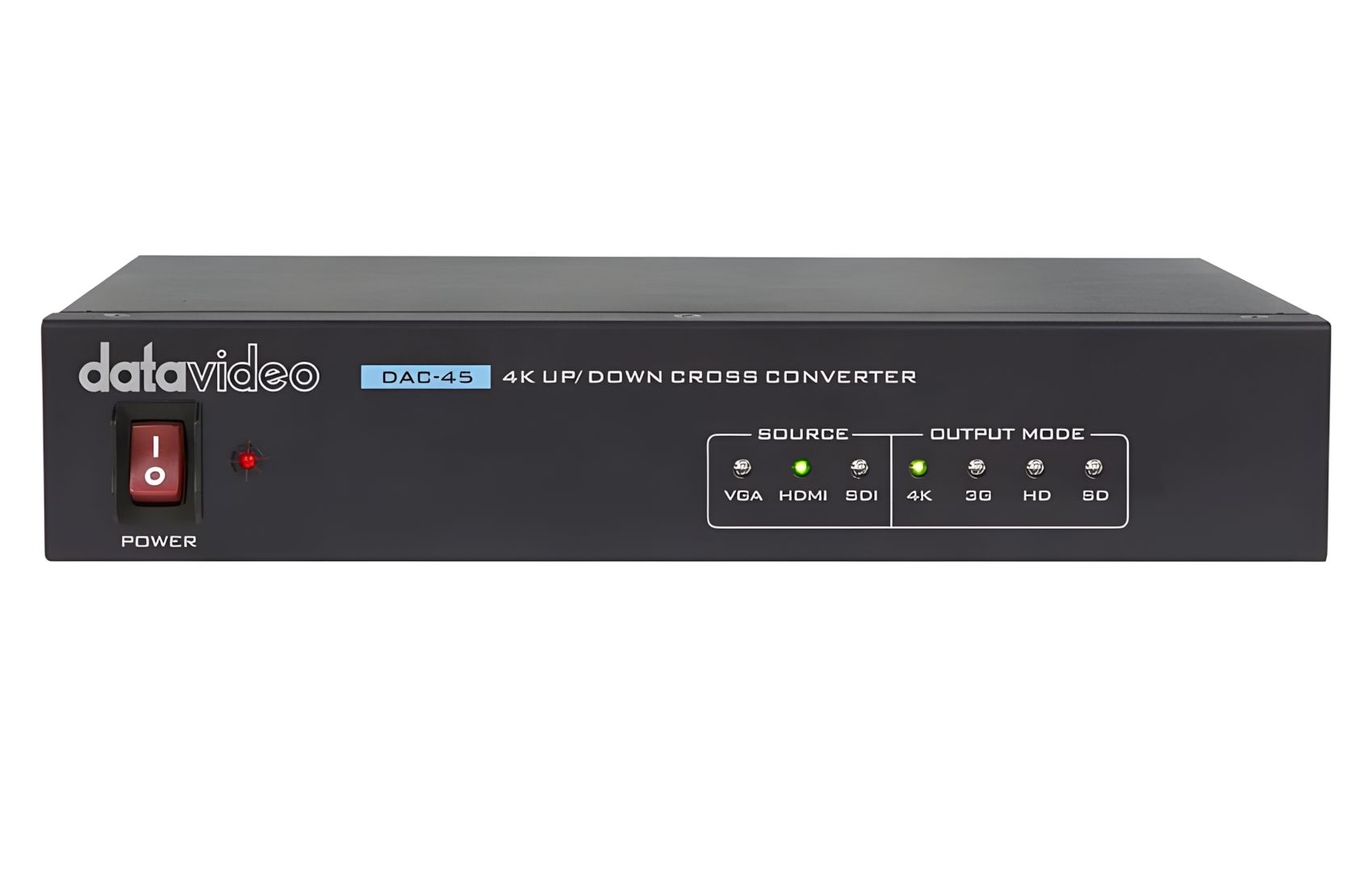

Datavideo Converter
DAC-45
MFR# DAC-45
BLK# 172-0169
in-Store Price: 1.023,28€ + VAT
Online Price: 982,34€ + VAT
- Up/Down/Cross Converter
- 3G/HD/SD-SDI, HDMI, VGA IN
- 3G/HD/SD-SDI, HDMI OUT
- 8-Channel Embedded Audio
The Datavideo DAC-45 has been crowned as the successor to the world-renowned DAC-70, the swiss army knife of video converters. The DAC-45 has all of the same features as the DAC-70, with the addition of 4K HDMI support. Thanks to its built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.
Future-proof all your video equipment with the DAC-45. It is a bridge that connects all your equipment together to complete your workflow.
Future-proof all your video equipment with the DAC-45. It is a bridge that connects all your equipment together to complete your workflow.
- Built-in Super Resolution Engine for 4K Up Conversion
- Built-in Resolution & Frame rate Up/Down Conversion Engine
- Built-in De-interlacer and Interlacer ( IP conversion)
- Can be used as a distribution amplifier, since all outputs are active at the same time
- Proc Amp
- The DAC CENTER software allows adjustment of HDMI color space
- Dip switch settings chart is printed on the bottom of the DAC-45 for easy access
- Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack
- HDMI strain relief protects your cable and helps keep it in place
- Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workfl ow
- Audio embedder
- Can convert VGA signal to 4K HDMI or HD-SDI
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Converter Type
-
Digital to Digital Converter
Up/Down/Cross Converter
- Power Type
-
External Power Adapter

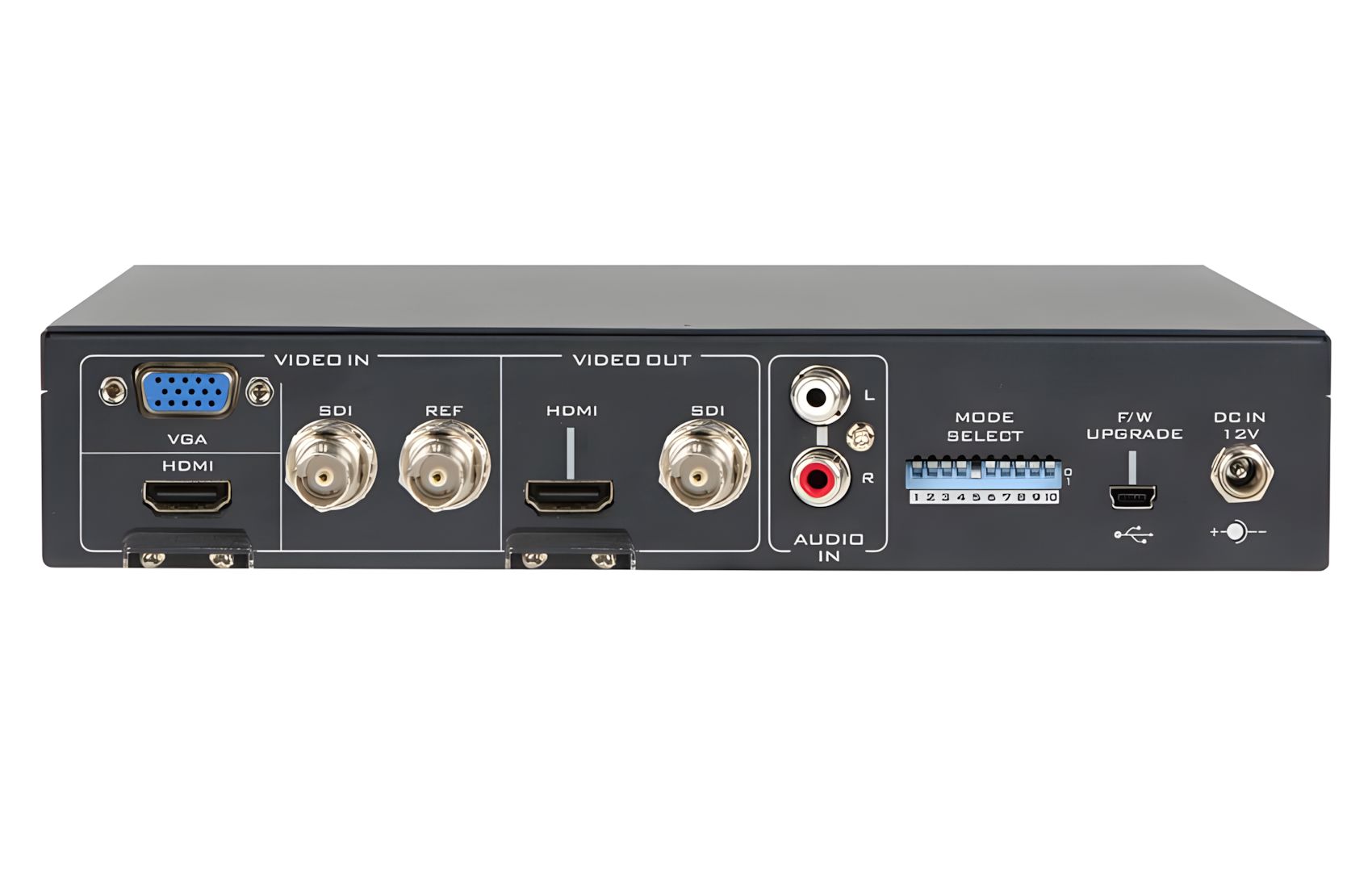

CONNECTIONS
- Video inputs
-
3G/HD/SD-SDI (BNC) x1
HDMI 4K x1
VGA(15-pin) x1
- Video outputs
-
3G-SDI x1
HDMI 4K x1
- Audio inputs
-
RCA x2
Embedded audio SDI x1
Embedded audio HDMI x1
- Audio Output
-
8CH Embedded Audio SDI x1
8CH Embedded Audio HDMI x1
- PC Connections
-
Mini-USB
GENERAL FEATURES
- Max Resolution Supported
-
SD 480i NTSC
SD 576i PAL
SVGA 800x600pixels(4:3 aspect ratio)
1024x768pixels(4:3 aspect ratio)
HD 720: 1280 x 720pixels (16:9 aspect ratio)
1280x1024pixels (5:4 aspect ratio)
1366x768pixels(16:9 aspect ratio)
1400x1050pixels(4:3 aspect ratio)
1600x1200pixels(4:3 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)
- Output Resolution
-
SD 480i NTSC
SD 576i PAL
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
- Frames Supported
-
INPUT:
24P/25P/30P/50P/60P @3840x2160Pixel
24P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
800x600 up to 1920x1080 @60Hz
OUTPUT:
Up to 50P/60P @3840x2160
Up to 50P/60P @1920x1080
50P/60P @1280x720
SD.
MORE SPECIFICATIONS
- Extras
-
Dip Switches to select mode.
Solid Aluminum Housing.
- Power
-
Power adapter
- Power Consumption
-
Not specified
- Country of Origin
-
China
- Warranty
- 3 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 22 x 4.2 x 14.3 cm
- Total Weight
- 1 kg
- DAC-45
- Switching Adaptor 12V
-
