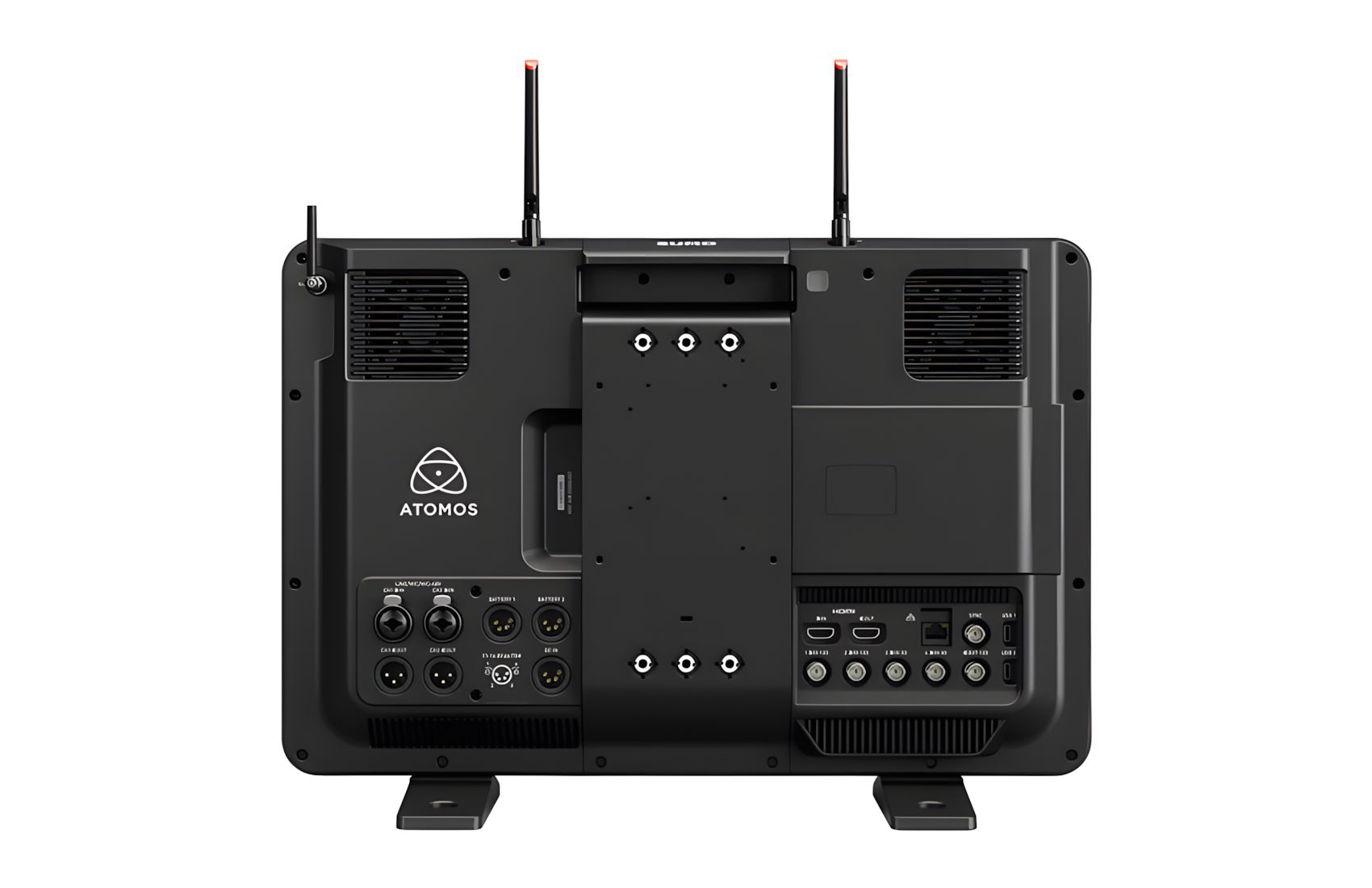

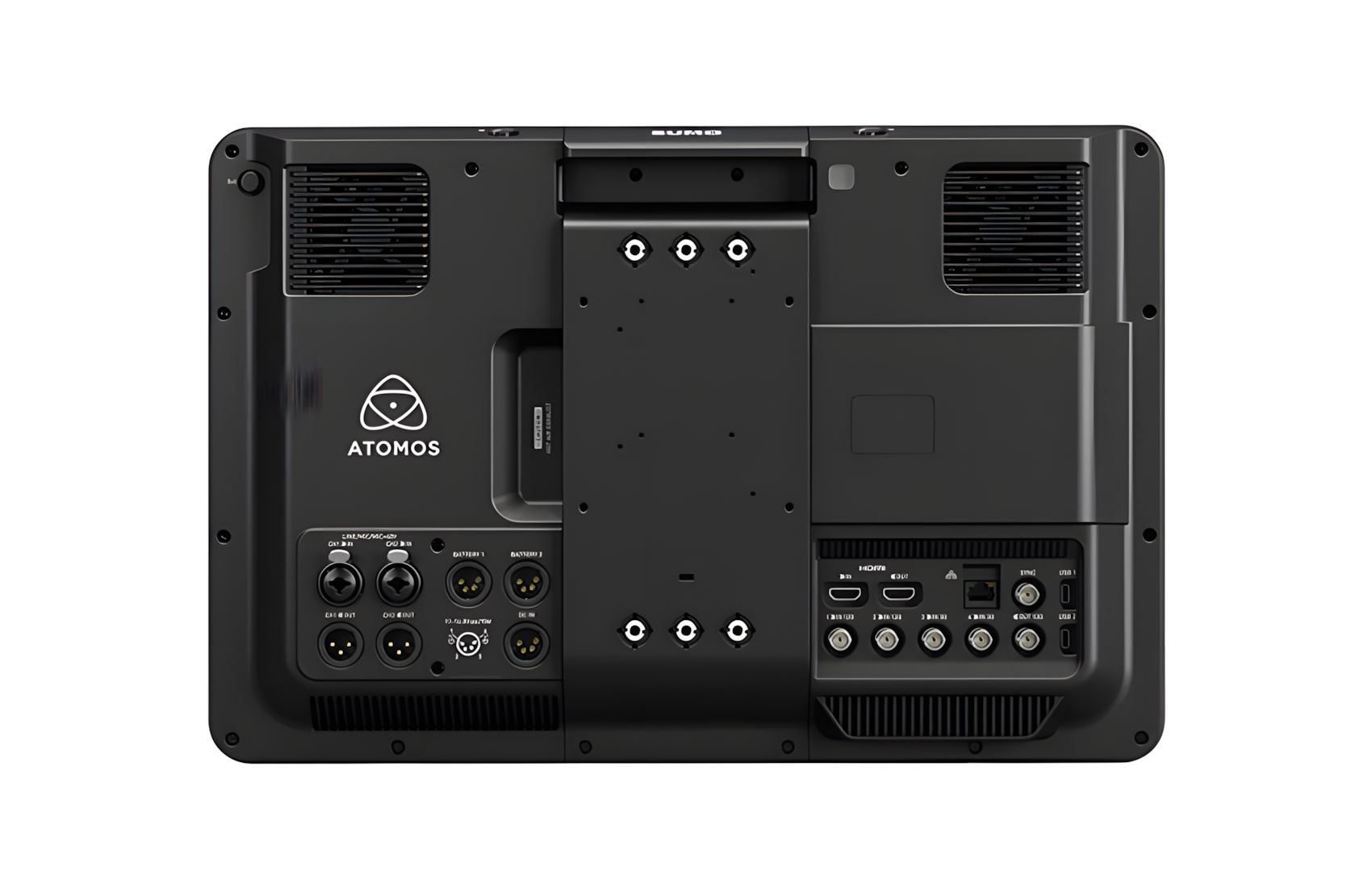

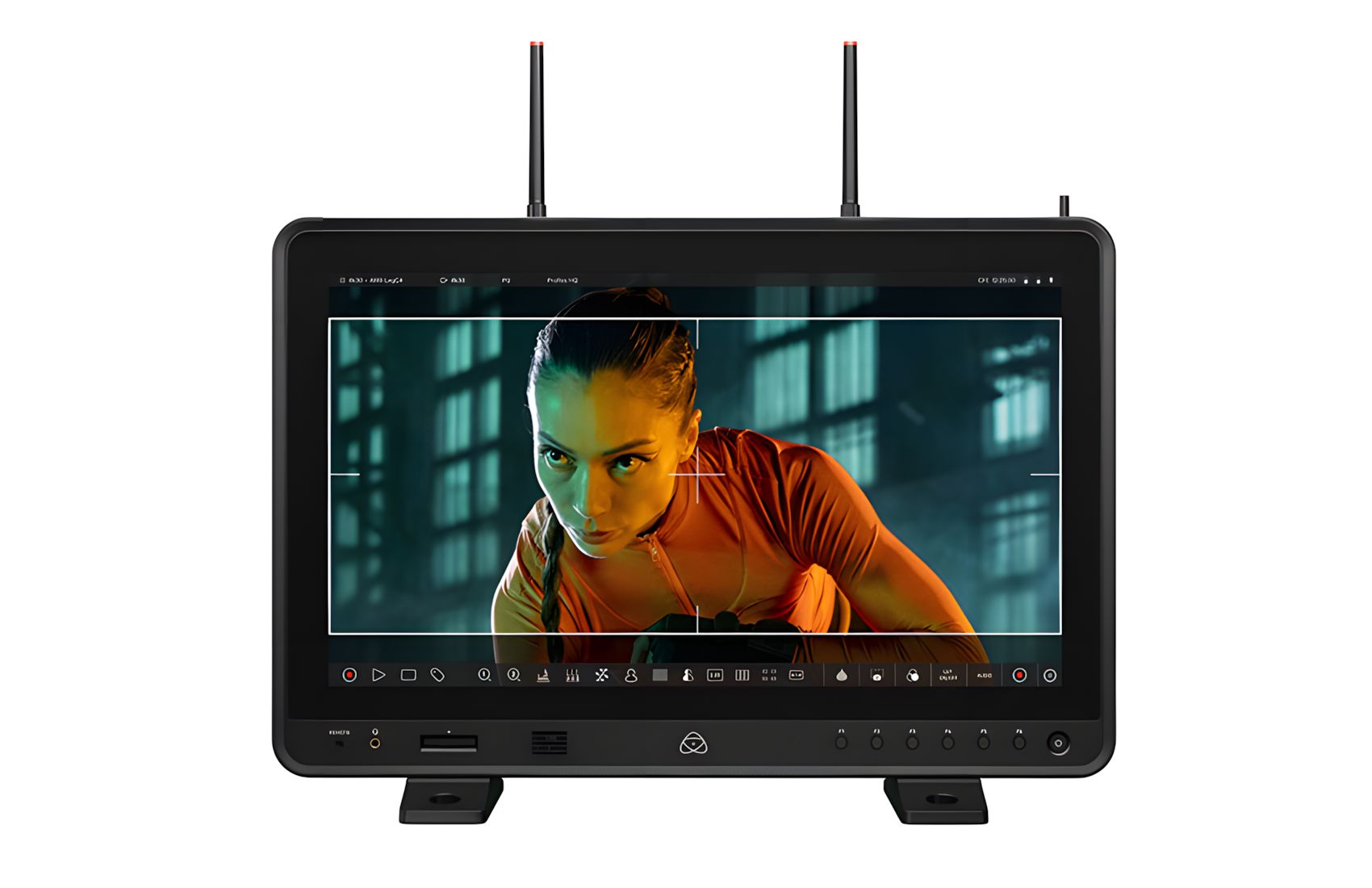

Sumo Pro 19

STATUS

Status

New

Availability

Available on order: 15 Business Days

Recorder Type

CF Card Recorder
CF Card Recorder

VIDEO SPECIFICATIONS

Recording Video Format

Avid DNxHD
Avid DNxHD
Avid DNxHR
Avid DNxHR
ProRes 422 LT
ProRes 422 LT
ProRes 422
ProRes 422
ProRes 422 HQ
ProRes 422 HQ
ProRes RAW
ProRes RAW
ProRes RAW HQ
ProRes RAW HQ

Slow Motion

Yes
Yes

No. of Media Slots

1
1

PANEL

Panel Size

19"
19"

Panel Type

OLED
OLED

Panel Resolution

4K: 3840 x 2160pixels(16:9 aspect ratio)
4K: 3840 x 2160pixels(16:9 aspect ratio)

Contrast

Not Specified
Not Specified

Brightness

1200 nits
1200 nits

Color Depth

10-bit
10-bit

CONNECTIONS

Video inputs

12G/6G/3G/HD-SDI (BNC) 2
12G/6G/3G/HD-SDI (BNC) 2
3G/HD/SD-SDI (BNC)
3G/HD/SD-SDI (BNC) 1
HDMI 4K
HDMI 4K

Video outputs

HDMI 4K 1
HDMI 4K 1

No. of Audio inputs

2/4/1

No. of Audio outputs

2/1/1/1

PC Connections

USB C
USB C
Ethernet RJ-45
Ethernet RJ-45
WiFi
WiFi

Other Connections

Genlock input (BNC)
Genlock input (BNC)

GENERAL FEATURES

Monitor Features

Waveform
Waveform
Vectorscope
Vectorscope
Zebra
Zebra
Peaking
Peaking
False Color
False Color
Image Flip
Image Flip
Anamorphic
Anamorphic
Pixel to Pixel
Pixel to Pixel
Guides - Safety Marker
Guides - Safety Marker
RGB Parade
RGB Parade

MORE SPECIFICATIONS

Extras

EL Zone False Color.
Metadata.
HDMI to SDI / SDI to HDMI Conversion.
Wireless Timecode.
SLOG2,3, CLOG, ARRIL LOGC, PANAS VLOG, JVC JLOG, RED LOGFILM.

Power

V-Lock Type Battery
V-Lock Type Battery
4pin XLR 12-16V
4pin XLR 12-16V
Power adapter
Power adapter

No. of battery slots

2
2

Power Consumption

75 Watt (12V to 16.8V input Voltage via 4-pin XLR).
Optional V-Lock 95Wh+ Batteries.

Country of Origin

Australia
Australia

Warranty

3 Years

PHYSICAL

Total Dimensions (LxWxH)

59.5 x 38.5 x 17.2 cm

Total Weight

11 kg
