Yamaha Phones
STAGEPAS-600BT
MFR# STAGEPAS 600BT
BLK# 034-0348
in-Store Price: 923,16€ + VAT
Online Price: 886,23€ + VAT
- Portable PA System
- 2x Speakers and 1x 10CH Mixer
- Bluetooth Audio Streaming
- 680W (340+340) Power Output
680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
- 680W (340W + 340W) power output
- High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)

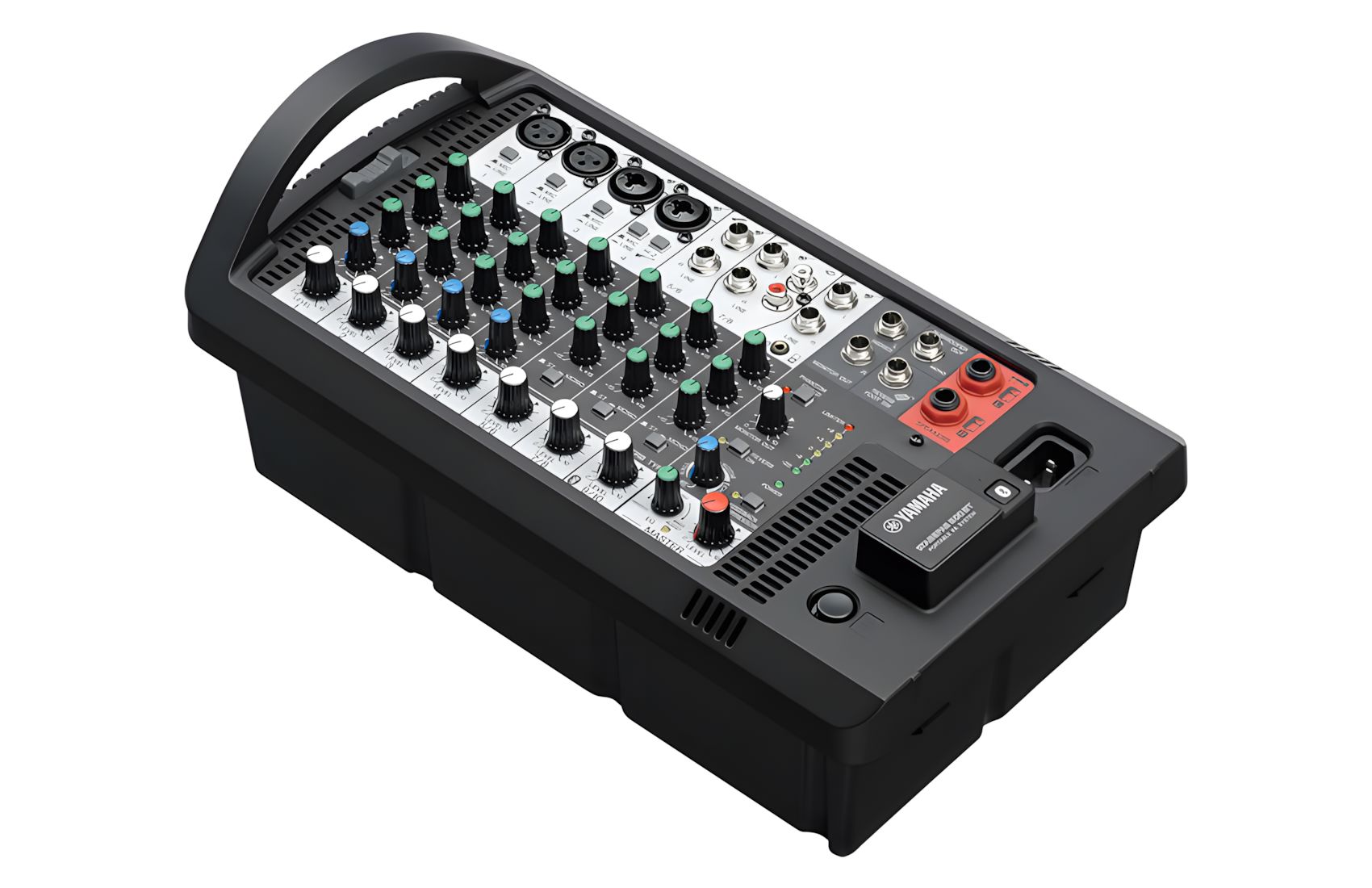

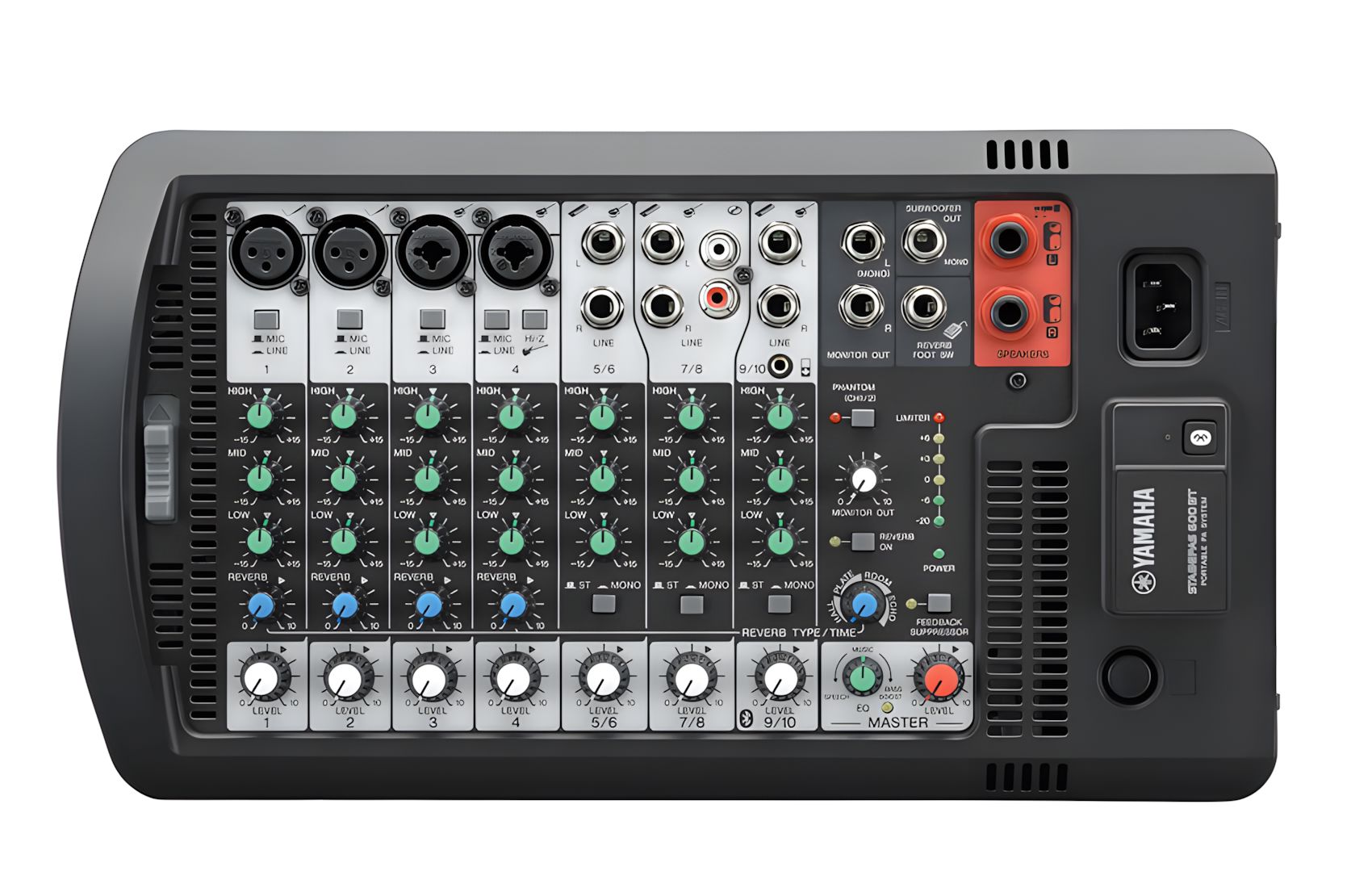

- Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
- Bluetooth audio streaming
- 1-Knob Master EQ™ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 3-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power

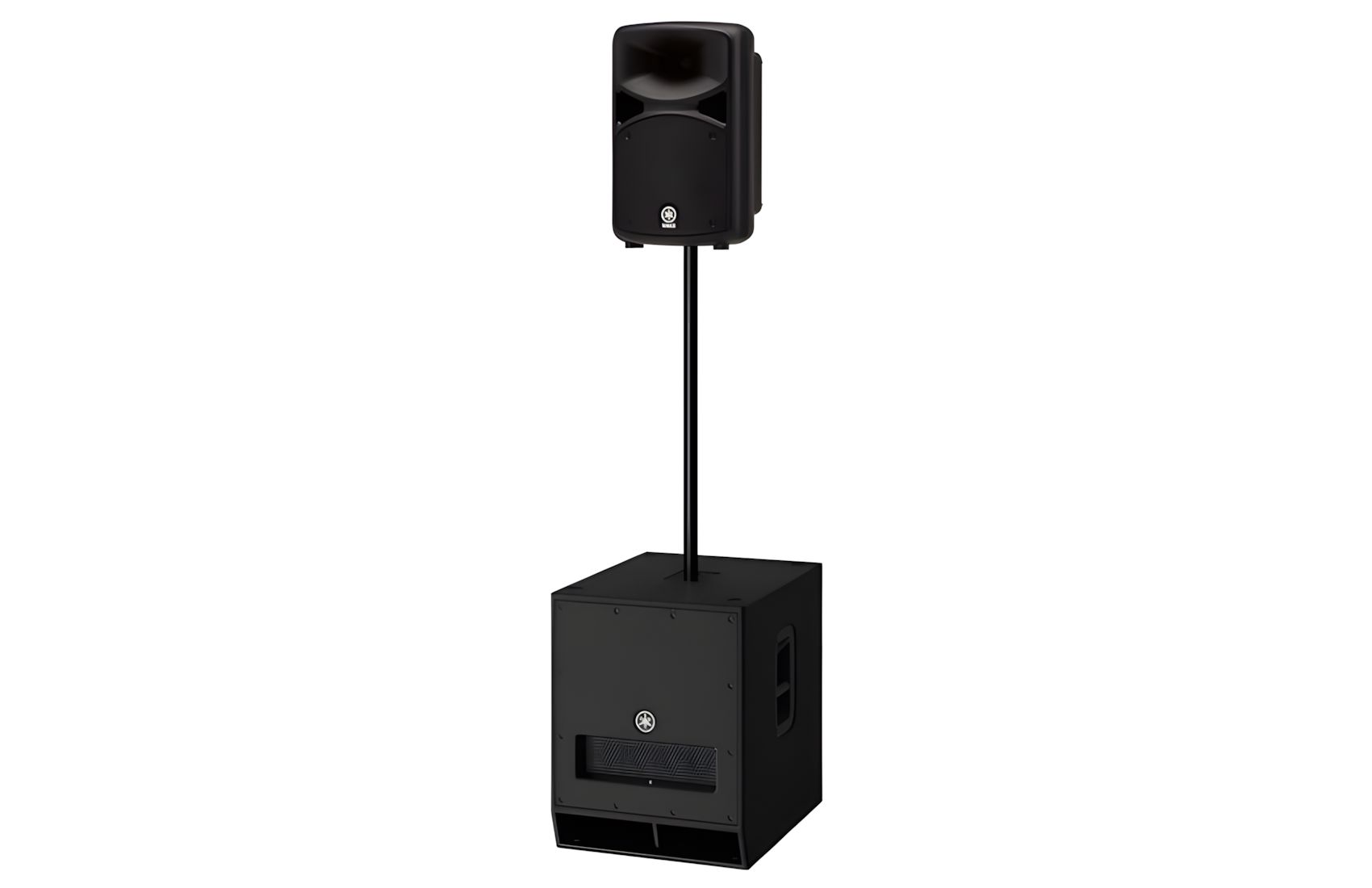

- Monitor and Subwoofer outputs
- Optional reverb footswitch
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
PHONES FEATURES
- Speaker Type
-
Dynamic
- Max SPL (dB)
-
129.0
- Equalizer
-
EQ: HIGH Shelving: 8 kHz.
LOW Shelving: 100 Hz.
MID peaking: 2.5 kHz.
- Frequency range
-
55Hz - 20kHz
- Output Power (Watt)
-
680.0
- Components (LF,MF,HF)
-
LF: 10" cone.
HF: 1.4" voice coil compression driver.
CONNECTIONS
- Audio inputs
-
3-pin XLR x2
XLR/TRS Combo (3-pin) x2
Jack 6.3mm x6
RCA x1
MORE SPECIFICATIONS
- Extras
-
Outputs: SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF.
- Power
-
AC 240V
- Power Consumption
-
35 Watt (Idle).
100 Watt (1/8 Power).
- Country of Origin
-
Japan
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 68 x 74.2 x 45.4 cm
- Total Weight
- 25.6 kg

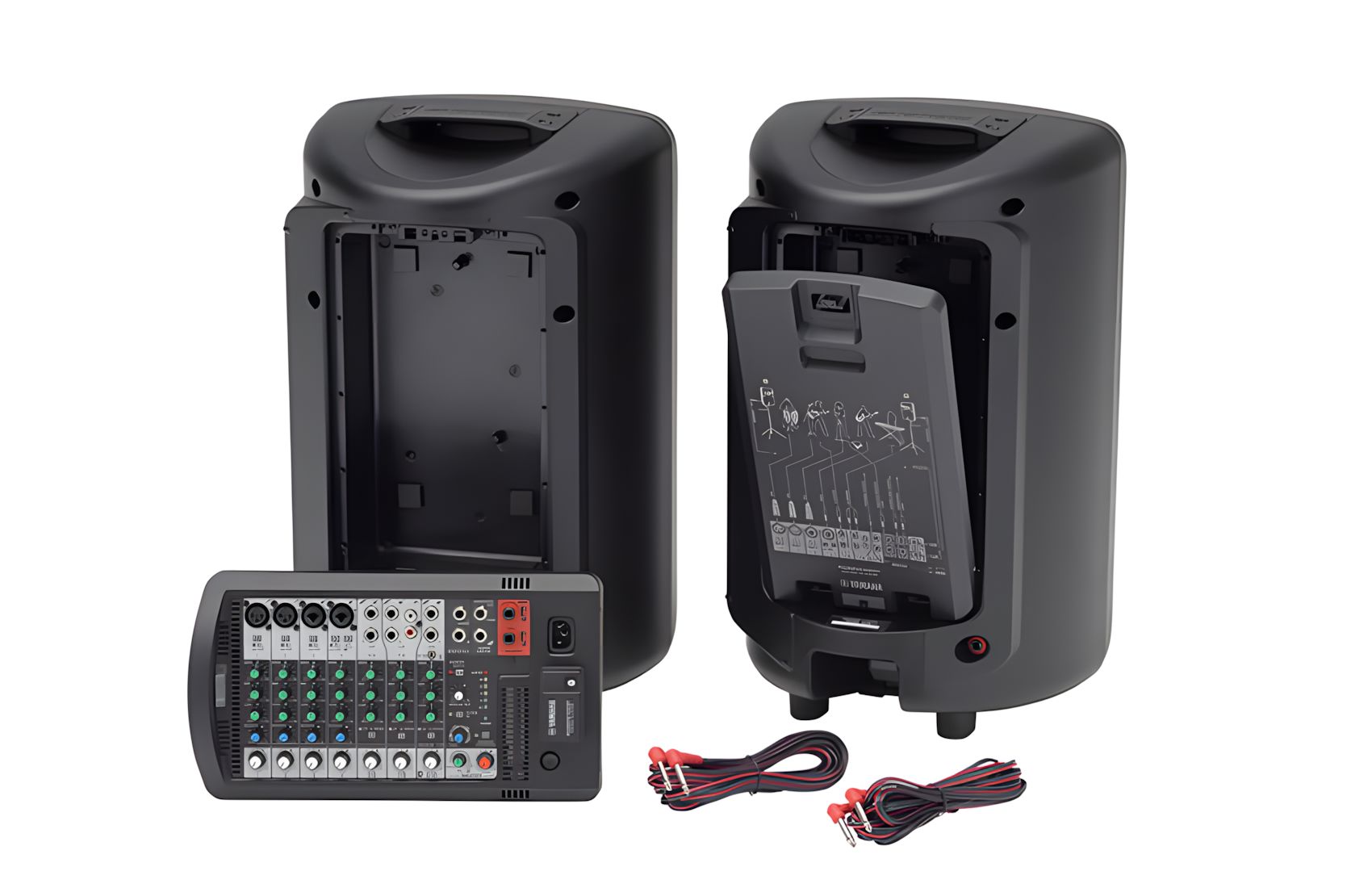

- 2x Speakers
- 1x Mixer
- Cover Panel
- 6.6' Power Cord
- 2 x 19.7' Speaker Cables
- 12 x Non-Skid Pads
- 2 x Ferrite Cores
- 2 x Cable Ties
-
