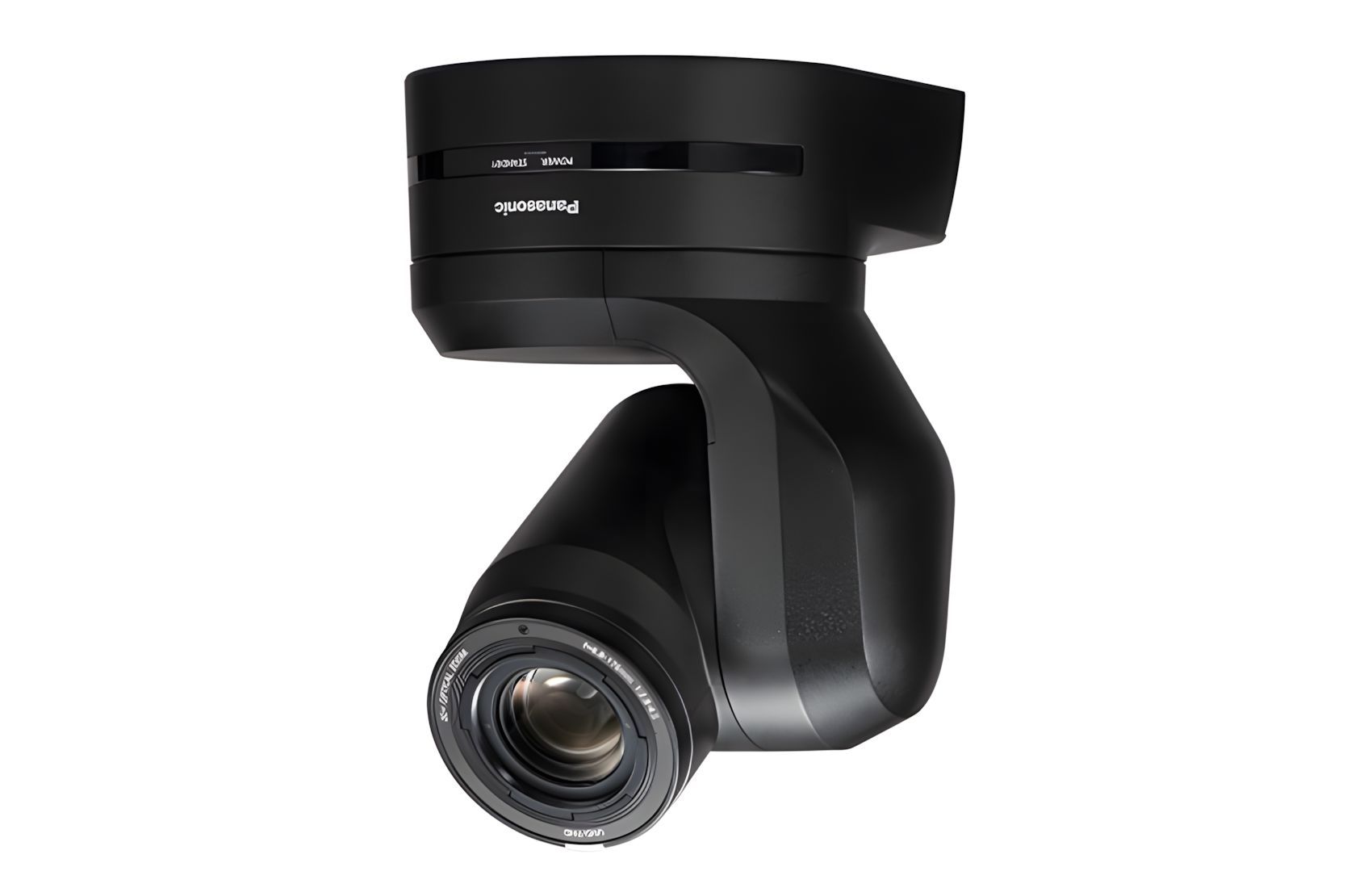

Panasonic Camera

HE145 Black MOS 1 20X PTZ

MFR# AW-HE145KEJ BLK# 017-0950

in-Store Price: 8.330,80€ + VAT

Online Price: 7.997,56€ + VAT

Compact PTZ Camera
Full HD 1920x1080 50P/60P
1"MOS Sensor
Black Color

Not in stock
Available on order: 15 Business Days

The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.

KEY FEATURES

High sensitivity achieved with the 1-type large-sized sensor
Optical 20x zoom/horizontal 75.1° wide-angle shooting
Pan/tilt performance that achieves smooth and accurate operation
Enables high-quality video production even in dark environments
SRT support for stable video transmission

High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.

Optical 20x Zoom & 75.1° Horizontal Wide Angle Lens
Adding "iZoom" to our optical 20x zoom, maintains high resolution while enabling ultra-high resolution 32x zoom in HD mode. This enables distant subjects to be captured clearly. Furthermore, 75.1° horizontal wide-angle shooting allows you to capture the entire area with one camera, even when installation space is limited.

SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.

Direct Broadcast via RTMP / RTMPS
RTMP / RTMPS (Real-Time Messaging Protocol) is supported by the AW-HE145 to enable direct upload of video to live-streaming services such as YouTube and Facebook Live. This means a live stream can be broadcast directly from the camera.

Integrates into NDI Ecosystem
The AW-HE145W/K can be upgraded to an NDI|HX compatible model if purchasing a license. Highly efficient NDI|HX compatibility enables high-quality video to be encoded and transmitted in real-time and input signals to be directly sent to a switcher (such as the AV-HLC100 Stream Studio) without the need for an IP decoder.

Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.

AW-RP150 Connection for Large-Scale Production Systems
IP connection from the Remote Camera Controller AW-RP150 through a HUB (switching hub) enables control of up to 200 x AW-HE145 units. Furthermore, a single AW-HE145 camera can be controlled from up to 5 x AW-RP150 units.

Flexible Installation & Mounting
The AW-HE145 robotic camera is lightweight and compact enough for easy permanent or portable installs. It’s equipped with a turn lock mechanism for easy installation and comes standard with a safety cable for extra security and peace of mind.

Blend-in: The camera is exceptionally easy to integrate and is available in two colors (AW-HE145W: pearl white / AW-HE145K: matte black) to suit a wide range of applications.

Ceiling Mount: A twist-lock ceiling mount is included as a standard accessory.

Tripod Mount for Mobile Production: The HE145 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.

Wall Mount or Pole Mount: An optional heavy-duty wall mount is available in either black (FEC-150WMK) or white (FEC-150WMW), which can also be utilized with the FEC-PA1 pole adapter

Outdoors: Protective heated / cooled outdoor housings are available. Designed for direct compatibility with the HE145, the enclosures are made from impact-resistant polycarbonate thermal plastic and are designed to protect the camera from water, dust and other challenging conditions.

Source: https://na.panasonic.com/us/audio-video-solutions/broadcast-cinema-pro-video/professional-ptz-cameras/aw-he145-full-hd-high-sensitivity-ptz-camera

STATUS

Status: New
Availability: Available on order: 15 Business Days
Camera Type: Compact Pan/Tilt Camera
HD Camera

VIDEO SPECIFICATIONS

Max Video Resolution: Full HD
Slow Motion: No
Rec Media: No media

LENS SYSTEM

Sensor Type: MOS
Sensor Size: 1" (crop factor 2.7)
Lens Mount: Fixed
Focal Length (35mm equivalent): 24.5 to 490mm (35mm equivalent)
Optical Zoom: 20X
Max Aperture: F2.8 to F4.5
Image Stabilizer: Yes
Built-in ND Filters: Yes

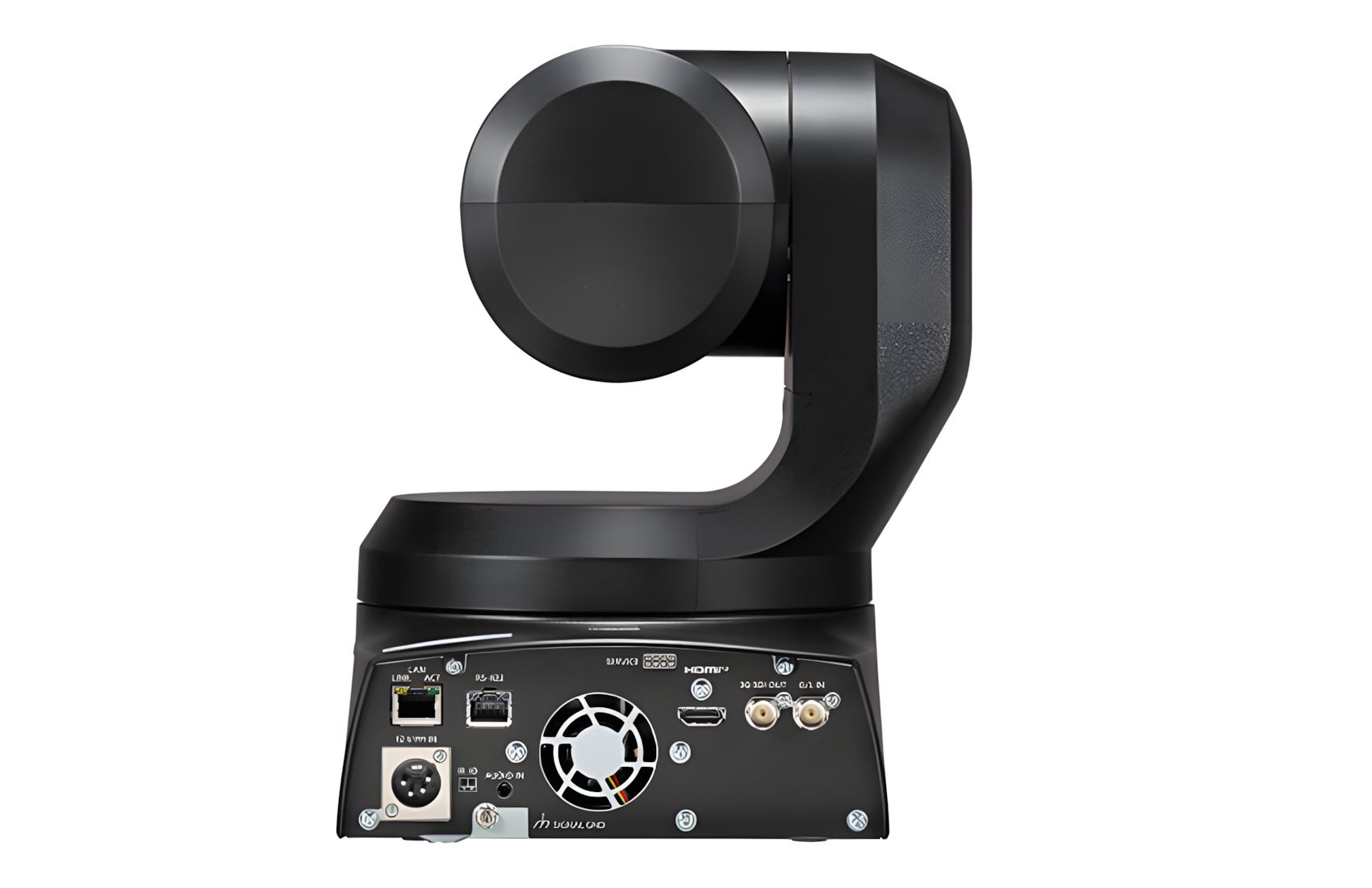

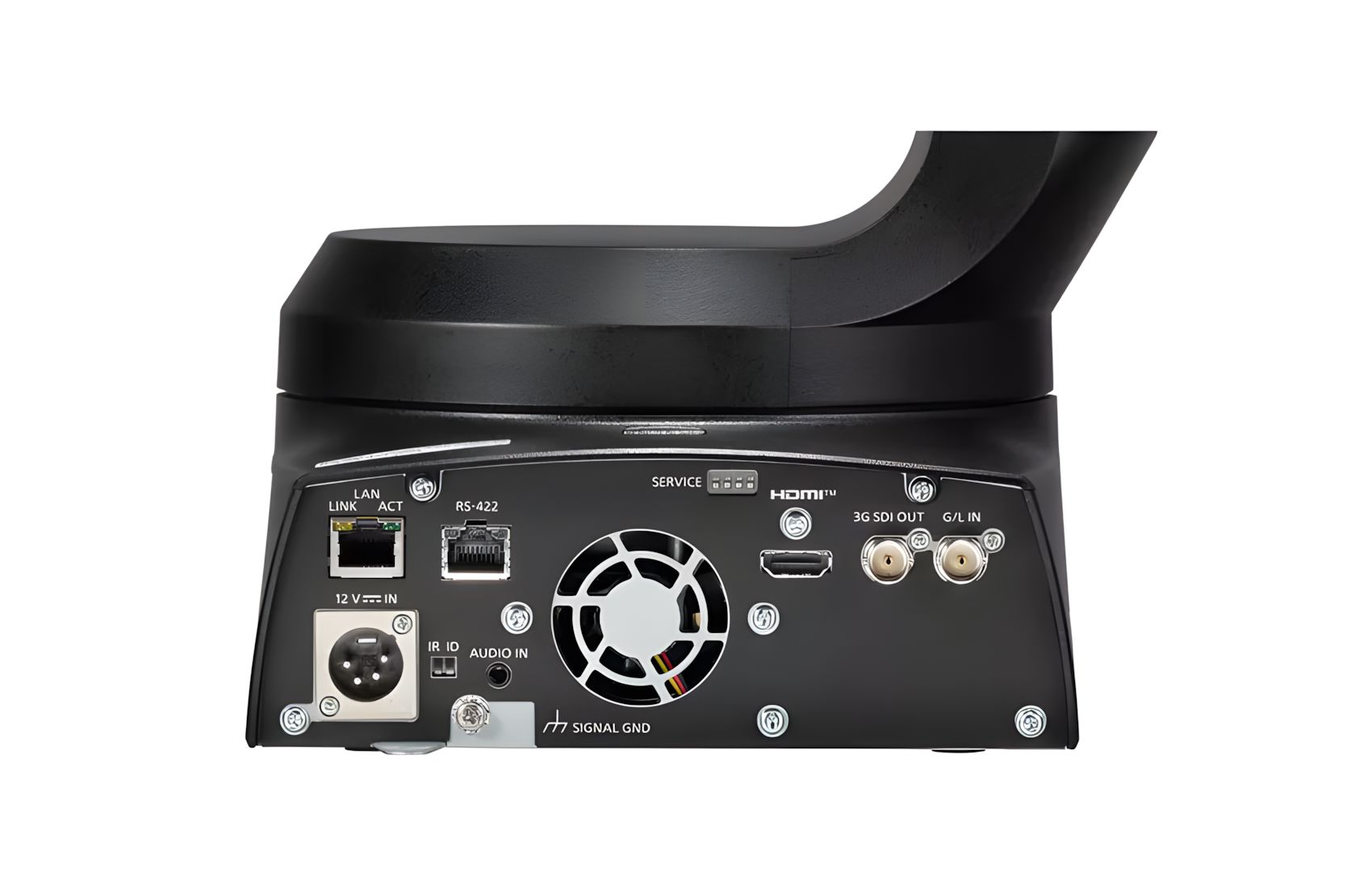

CONNECTIONS

Video outputs: 3G-SDI x1
HDMI x1
Ethernet (Video) x1
Audio inputs: Jack 3.5mm x1
Audio outputs: Embedded Audio SDI x1
Embedded Audio HDMI x1
Embedded Audio Ethernet x1
PC Connections: RS-422
Ethernet RJ-45

GENERAL FEATURES

Pan/Tilt Operation: Yes
Pan/Tilt Speed: 60° to 180°/sec
Pan Range: +/- 175degrees
Tilt Range: -30° to +210°
Shutter speed: 1/60 to 1/10000
Min. Illumination: 3lux

MORE SPECIFICATIONS

Extras: NDI & SRT Support.
Youtube & Facebook Streaming.
Presets for Camera Positions.
Black color.
Power: Power adapter
Powered through ethernet cable (PoE)
Power Consumption: 4.0 A (XLR IN connector).
1.2 A (PoE++ power supply).
Country of Origin: Japan
Warranty: 1 Year
