#name: "Pro Capture Quad HDMI"
#slug: "Pro Capture Quad HDMI"
#summary: """
<ul>\r\n
\t<li>\r\n
\t\tVideo PC-Board for Capture</li>\r\n
\t<li>\r\n

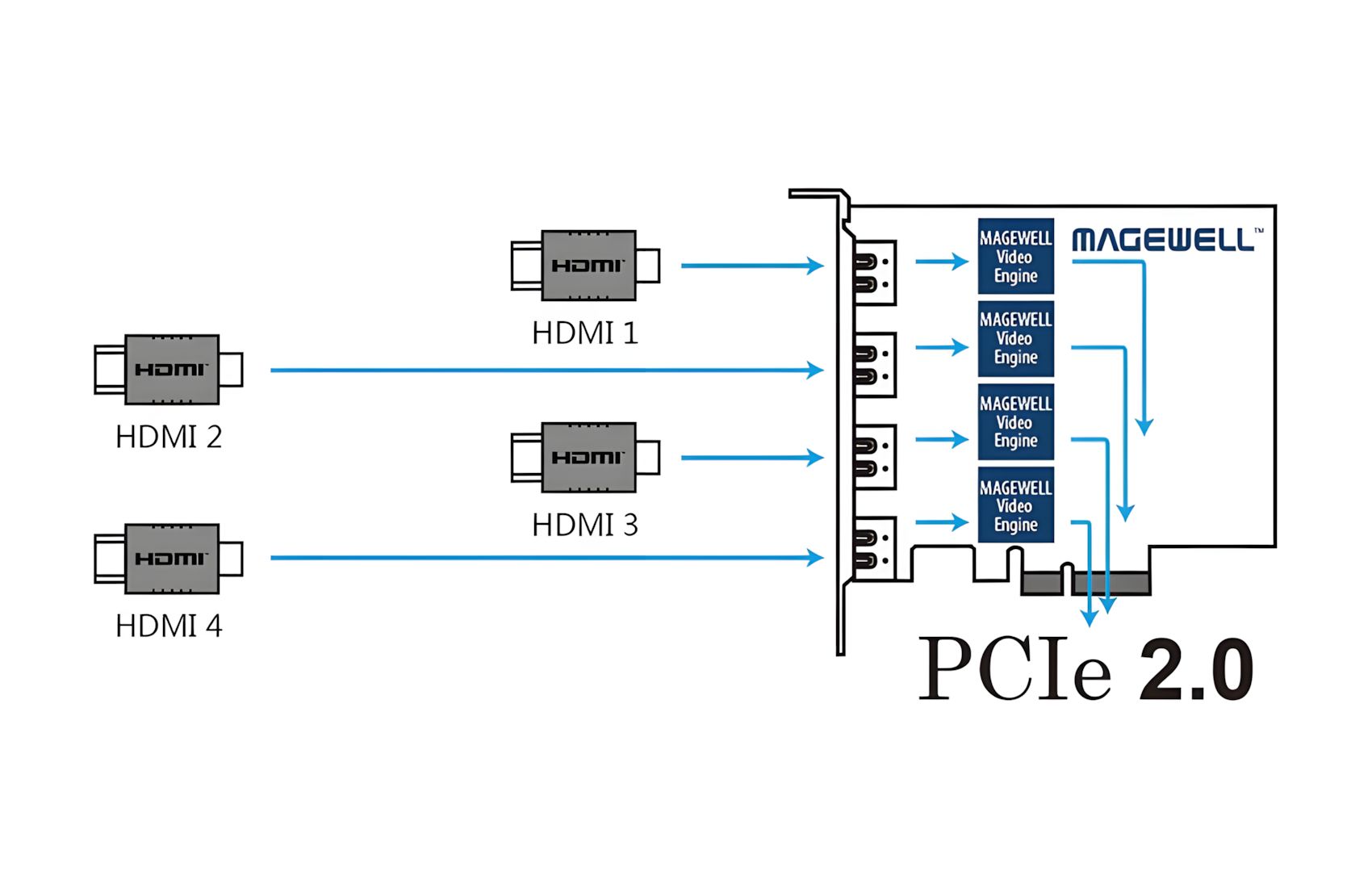

\t\t4x HDMI inputs</li>\r\n
\t<li>\r\n
\t\tEmbedded audio</li>\r\n
\t<li>\r\n
\t\tPCI-Express Gen2 ?4 lane</li>\r\n
\t<li>\r\n
\t\tUp to 2048x2160pix</li>\r\n
\t<li>\r\n
\t\t4:2:2/4:4:4 up to 12bit</li>\r\n
\t<li>\r\n
\t\tFor Vmix, Wirecast, Adobe Media encoder</li>\r\n
\t<li>\r\n
\t\tHigh Quality</li>\r\n
</ul>\r\n
"""
#description: """
<div style="text-align: justify;">\r\n
\t<strong>Supported OS</strong><br />\r\n
\tWindows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)<br />\r\n
\tLinux (based on V4L2 , supports x86, x64 & arm architecture)<br />\r\n
\tMac OS X<br />\r\n
\t<br />\r\n
\t<strong>Supported APIs</strong><br />\r\n
\tWindows<br />\r\n
\tDirectShow<br />\r\n
\tDirectKS<br />\r\n
\tWave API/DirectSound/WASAPI<br />\r\n
\tLinux<br />\r\n
\tV4L2<br />\r\n
\tALSA<br />\r\n
\t<br />\r\n
\t<strong>Supported Software</strong><br />\r\n
\tVLC<br />\r\n
\tVirtualDub<br />\r\n
\tOBS<br />\r\n
\txSplit<br />\r\n
\tvMix<br />\r\n
\tVidBlaster<br />\r\n
\tWirecast<br />\r\n
\tMicrosoft Media Encoder<br />\r\n
\tAdobe Flash Media Encoder<br />\r\n
\tAny other DirectShow/V4L2 encoding/streaming software<br />\r\n
\t<br />\r\n
\t<strong>Input Interfaces</strong><br />\r\n

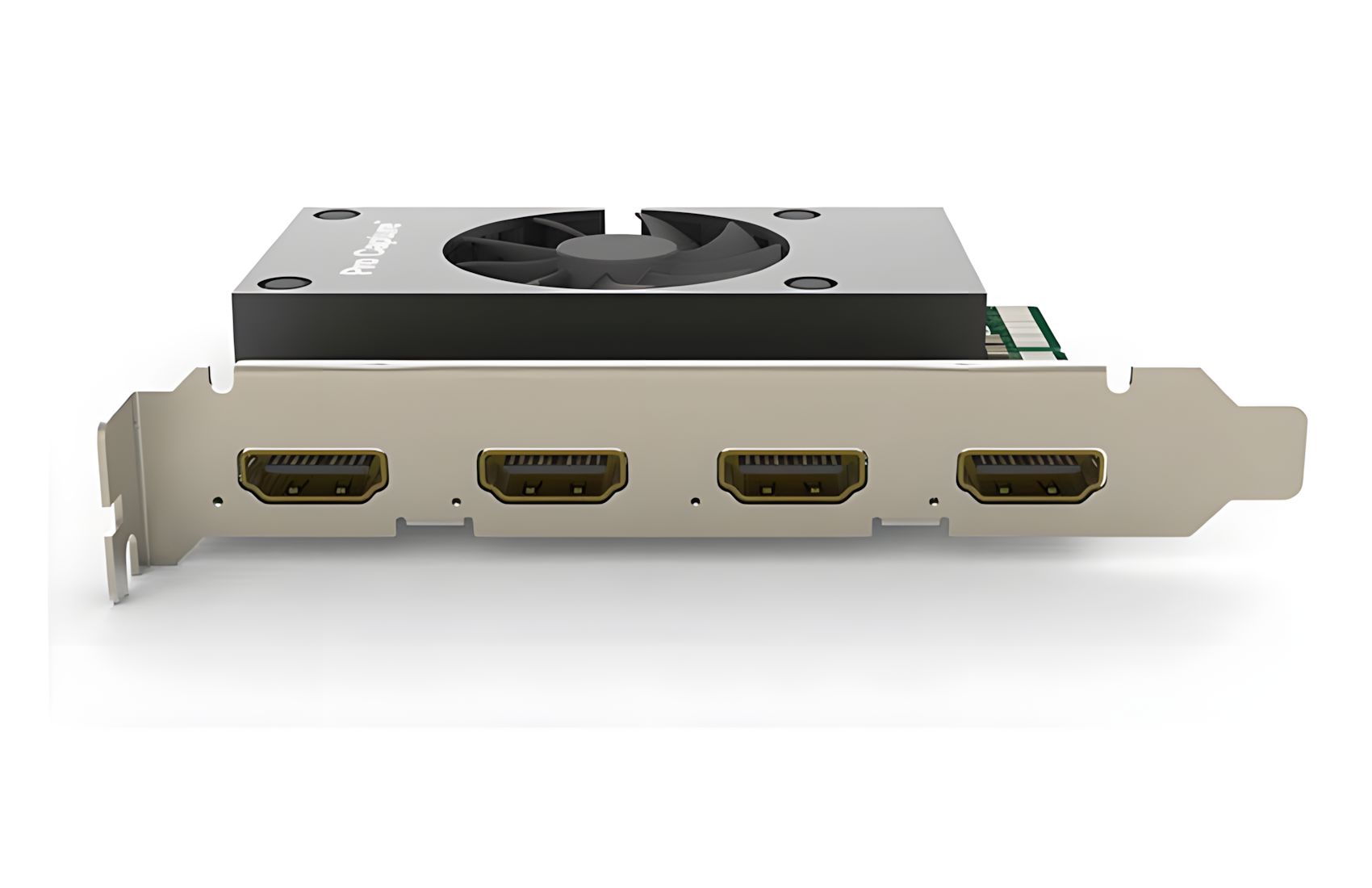

\t4x HDMI type A<br />\r\n
\tDVI 1.0<br />\r\n
\tHDMI 1.4a<br />\r\n
\t<br />\r\n
\t<strong>Output Interfaces</strong><br />\r\n
\tPCIe Gen2 x4<br />\r\n
\t<br />\r\n
\t<strong>Input Features</strong><br />\r\n
\tSupport for input video resolutions up to 2048×2048 pixels<br />\r\n
\t<br />\r\n
\t<strong>HDMI Specific Features</strong><br />\r\n
\t225MHz HDMI receiver<br />\r\n
\tAdaptive HDMI equalizer support for cables lengths up to 30M<br />\r\n
\tSupport for customized EDID<br />\r\n
\tSupport for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames<br />\r\n
\tFull colorimetry support<br />\r\n
\tSupport for 8/10/12-bit color depths<br />\r\n
\tSupport for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling<br />\r\n
\tSupport for up to 8-channel IEC60958/IEC61937 audio streams<br />\r\n
\tSupport for extraction of audio formation information & channel status data<br />\r\n
\tSupport for extraction of video timing information<br />\r\n
\tSupport for extraction of 3D format information<br />\r\n
\tSupport for extraction of Sony/Canon DSLR time code<br />\r\n
\t<br />\r\n
\t<strong>Video Output Formats</strong><br />\r\n
\tSupport for output image resolutions up to 2048×2048 pixels<br />\r\n
\tSupport for output frame rates up to 144fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )<br />\r\n
\tSupport for 4:2:0 8-bit output formats: NV12, I420, YV12<br />\r\n
\tSupport for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY<br />\r\n
\tSupport for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32<br />\r\n
\tSupport for 4:4:4 10-bit output formats: V410, Y410<br />\r\n
\tMore output formats are supported via Pro Capture SDK for DirectKS<br />\r\n
\t<br />\r\n
\t<strong>Video Processing Features</strong><br />\r\n
\tTwo video processing pipelines with ~180Mpixels/s processing bandwidth for each one<br />\r\n
\tFull 10-bit video processing<br />\r\n
\tVideo cropping<br />\r\n
\tVideo scaling<br />\r\n
\tVideo de-interlacing<br />\r\n
\tWeave<br />\r\n
\tBlend top & bottom field<br />\r\n
\tTop field only<br />\r\n
\tBottom field only<br />\r\n
\t<br />\r\n
\t<strong>Video aspect ratio conversion</strong><br />\r\n
\tAuto or manual selection of input aspect ratio<br />\r\n
\tAuto or manual selection of output aspect ratio<br />\r\n
\tThree aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)<br />\r\n
\tVideo color format conversion<br />\r\n
\tAuto or manual selection of input color format & quantization range<br />\r\n
\tAuto or manual selection of output color format, quantization range & saturation range<br />\r\n
\tSupport for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats<br />\r\n
\tSupport for Limited or Full quantization range<br />\r\n
\tSupport for Limited, Full & ‘Extended gamut’ saturation range<br />\r\n
\t<br />\r\n
\t<strong>Video frame rate conversion</strong><br />\r\n
\tVideo OSD composition<br />\r\n
\tSupport for PNG OSD image (up to 2048×2048)<br />\r\n
\tSupport for dynamic loading of RGBA OSD image via SDK<br />\r\n
\tMultiple Cards per System<br />\r\n
\tSupport for multiple cards plugged to one system<br />\r\n
\tOn-board rotary switch to set card number, with 16 positions from 0 to F<br />\r\n
\tSystem hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on<br />\r\n
\tThe video and audio device names displayed in your software will include the card number (set by the rotary switch)<br />\r\n
\t<br />\r\n
\t<strong>Multiple Output Streams</strong><br />\r\n
\tUnlimited output streams for any one input channel<br />\r\n
\tIndependent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream<br />\r\n
\t<br />\r\n
\t<strong>Ultra Low Latency Support</strong><br />\r\n
\tLatency of 64 video lines<br />\r\n
\tPartial notification mode in SDK<br />\r\n
\t<br />\r\n
\t<strong>Timestamp & A/V Synchronization</strong><br />\r\n
\tHardware based 100ns high resolution clock<br />\r\n
\tAudio frames (192 audio samples) & video frames are stamped with hardware clock<br />\r\n
\tHardware clock can be synchronized across cards (via SDK)<br />\r\n
\t<br />\r\n
\t<strong>Video Output SG-DMA</strong><br />\r\n
\t~400MB/s per channel DMA bandwidth in PCIe 2.0 system<br />\r\n
\t~200MB/s per channel DMA bandwidth in PCIe 1.0 system<br />\r\n
\tSupport for auto detection of Intel tiled GPU surface<br />\r\n
\tSupport for DirectGMA for AMD video adapter chipsets<br />\r\n
\tSupport for GPUDirect for Nvidia video adapter chipsets<br />\r\n
\t<br />\r\n
\t<strong>SDK</strong><br />\r\n
\tPro Capture SDK for DirectShow for easy integration (Windows)<br />\r\n
\tPro Capture SDK for DirectKS for maximum flexibility & performance (Windows)<br />\r\n
\t<br />\r\n
\t<strong>Windows Driver Tweaks</strong><br />\r\n
\tAll options can be controled by three levels of registry key: global level, product level and device level<br />\r\n
\tVideo, Audio, Crossbar filter names can be customized via registry keys<br />\r\n
\t<br />\r\n
\t<strong>Firmware Upgrade</strong><br />\r\n
\tMultiple cards in one system can be upgraded simultaneously<br />\r\n
\tCards can be upgraded without a system power shutdown when it is not in use<br />\r\n
\tSafe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.<br />\r\n
\t<br />\r\n
\t<strong>LED Indicator</strong><br />\r\n
\tStatus LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.<br />\r\n
\tForm Factor<br />\r\n
\t<br />\r\n
\t<strong>Normal profile PCIe x4 Add-on Card</strong><br />\r\n
\t112.15mm x 102.92mm (without PCI bracket)<br />\r\n
\tPower Consumption<br />\r\n
\tMax current at 12V ~1.1 A<br />\r\n
\tMax current at 3.3V ~0.9 A<br />\r\n
\tMax power consumption ~15.9 W<br />\r\n
\tWorking Environment<br />\r\n
\tOperating temperature: 0 to 40 deg C<br />\r\n
\tStorage temperature: –20 to 70 deg C<br />\r\n
\tRelative Humidity: 5% to 90% non-condensing</div>\r\n
"""
