#name: "Pro SDI TX"
#slug: "Pro SDI TX"
#summary: """
<ul>\r\n
\t<li>\r\n
\t\tVideo Converter - Encoder</li>\r\n
\t<li>\r\n
\t\t3G-SDI Input</li>\r\n
\t<li>\r\n
\t\tNDI Output with? Audio</li>\r\n
\t<li>\r\n
\t\tNDI + POE</li>\r\n
\t<li>\r\n
\t\tUSB2.0 Type B Interface</li>\r\n
\t<li>\r\n
\t\tMini-DIN 8-Pin PTZ, Tally</li>\r\n
\t<li>\r\n
\t\t5V Power DC input</li>\r\n
\t<li>\r\n
\t\tEthernet 10/100/1000Mbps PoE</li>\r\n
</ul>\r\n
"""
#description: """
<p>\r\n
\t<strong>Converts one-channel of 3G-SDI input signal into Full NDI</strong></p>\r\n
<ul>\r\n
\t<li>\r\n
\t\tSupports up to 2048x1080 60fps input signals</li>\r\n
\t<li>\r\n
\t\tConnects existing source equipment into NDI-enabled, IP-based media networks</li>\r\n
\t<li>\r\n
\t\tPlug-and-play ease of use with automatic input format detection and DHCP network configuration</li>\r\n
</ul>\r\n
<p>\r\n
\t\u{A0}</p>\r\n
<p>\r\n
\t<strong>Input Features</strong></p>\r\n
<div class="full_feature">\r\n
\t<div class="mg-container">\r\n
\t\t<div class="mg-row">\r\n
\t\t\t<div class="specs-content">\r\n
\t\t\t\t<div class="item-row">\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tMax video input: 2048x1080 60fps. Supported resolutions include:</p>\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t1280x720p 50/59.94/60</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t720x576 25p/50i (PAL SD)</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t720x480 29.97p/59.94i (NTSC SD)</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tSupport RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tSupport RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tSupport RGB, YUV BT.601/709/2020 video input</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t16-channel SDI embedded audio inputs</p>\r\n
\t\t\t\t\t<p>\r\n

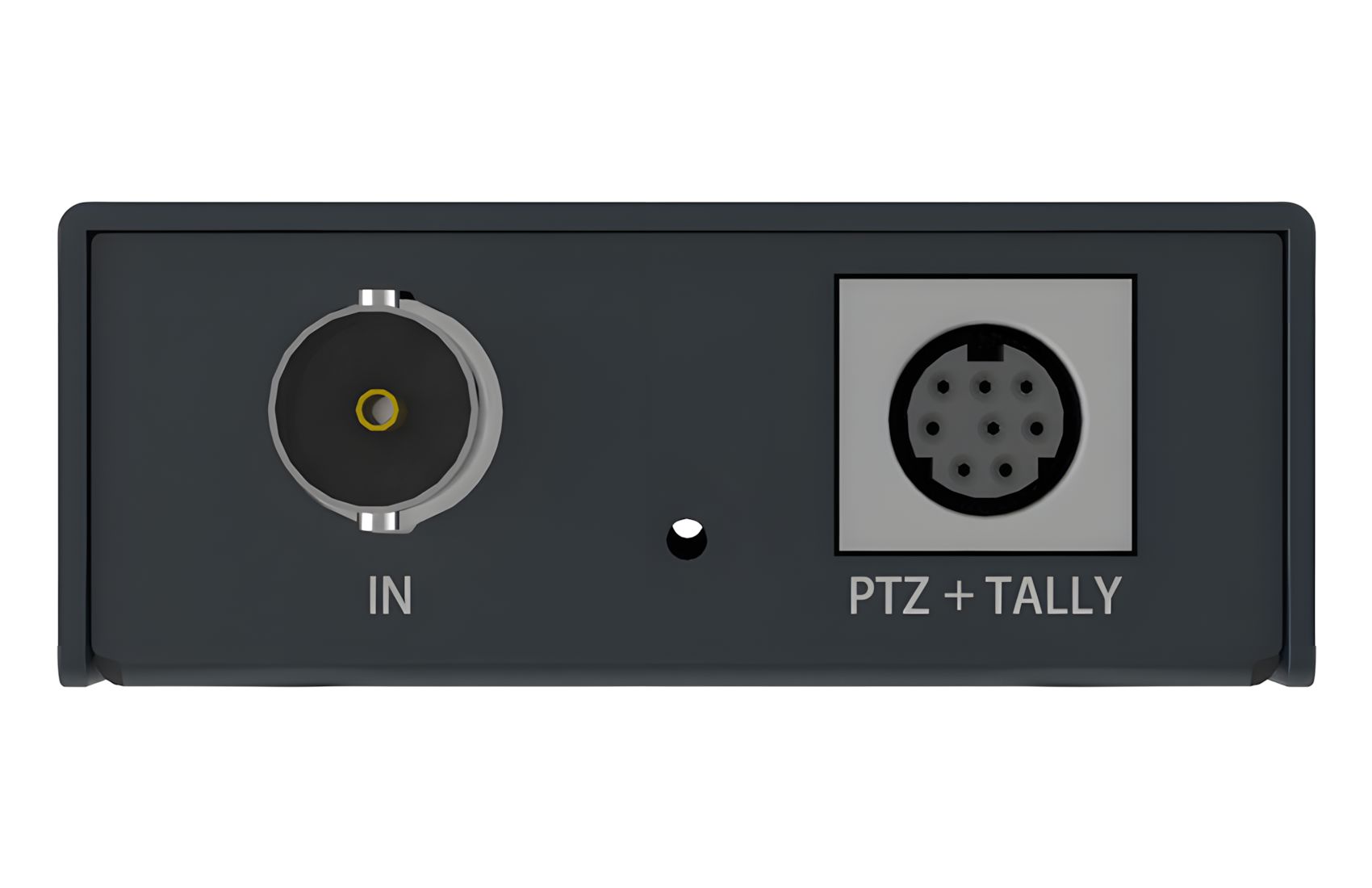

\t\t\t\t\t\tSD/HD/3G-SDI BNC input</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tSupport SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tReceive 3G-SDI transmitted up to 180m (591ft)</p>\r\n
\t\t\t\t</div>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>NDI<sup>®</sup>\u{A0}Encoding Features</strong></p>\r\n
\t\t\t\t<div class="item-content">\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tEncoding Full NDI real-time stream at up to 2048x1080 60fps 4:2:2 8-bit</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tOutput the same resolution as input or any custom resolution. Typical outputs include:</p>\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t1280x720p 50/59.94/60</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tOutput frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tEncoding 16-channel NDI-embedded audio</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\tSupport NDI 5.x</p>\r\n
\t\t\t\t</div>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Configuration Management</strong></p>\r\n
\t\t\t\t<div class="item-content">\r\n
\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tRegister with Magewell Cloud</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tRemote control via WebUI and Magewell Cloud</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tProvide comprehensive information regarding the device and signals in real-time</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tAllow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tUpdate firmware</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tSupport USB RNDIS/ECM</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tSupport IE/Edge/Firefox/Chrome/Safari/Opera web browsers</li>\r\n
\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\tProvide HTTP APIs</li>\r\n
\t\t\t\t\t</ul>\r\n
\t\t\t\t</div>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>On-board Control Buttons</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t16 Position Rotary DIP Switch: set board-index from 0 to F</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>PTZ Control</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tControl PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tMini-DIN–8 jack (shared with Tally light)</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n

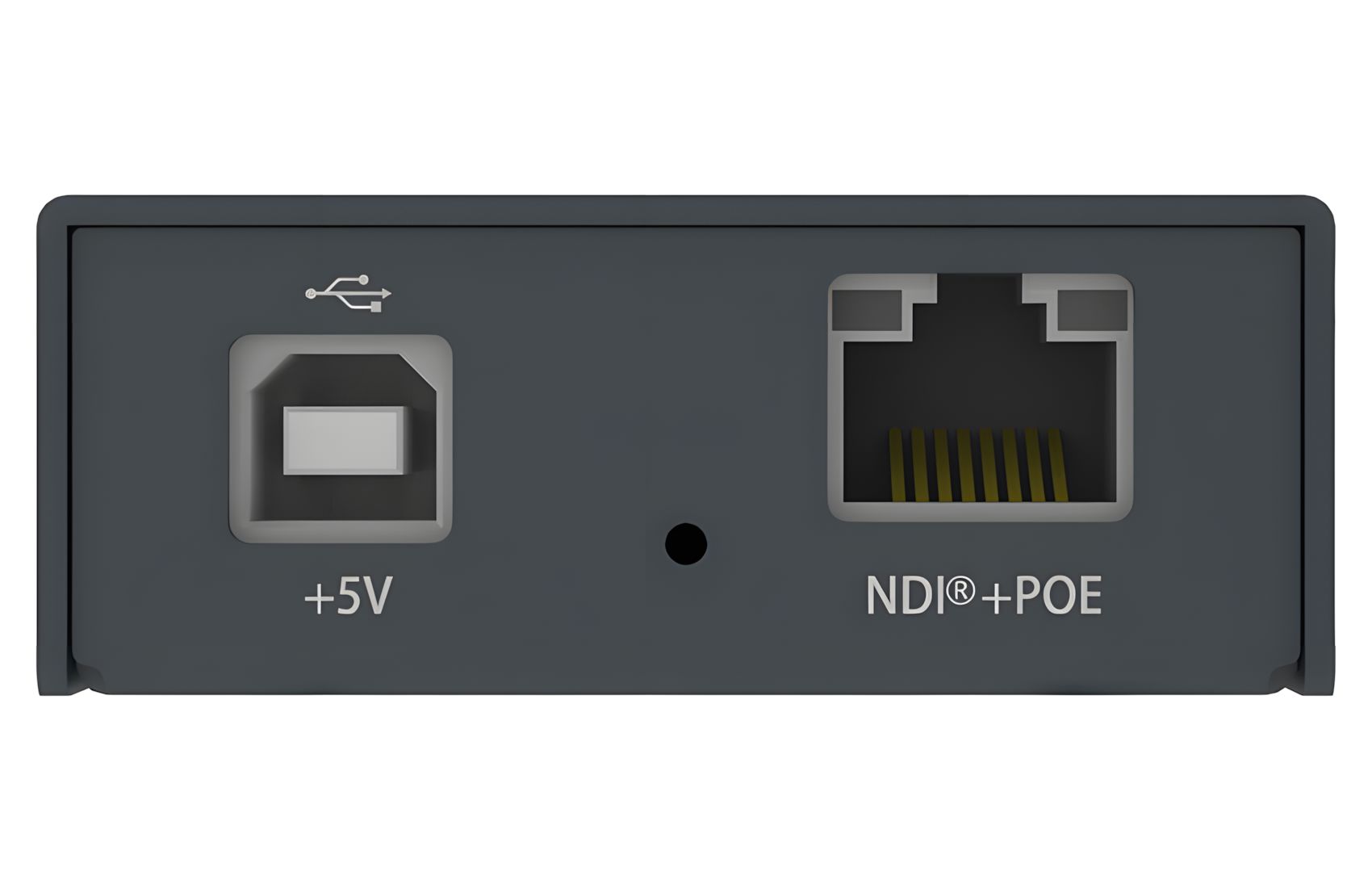

\t\t\t\t\t<strong>Network Interfaces</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t10/100/1000Mbps Ethernet</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tIEEE 802.3af PoE</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>USB Interface</strong></p>\r\n
\t\t\t\t<p>\r\n
\t\t\t\t\tUSB2.0 Type B</p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t5V/2.1A power supply</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tUSB RNDIS/ECM</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Supported Products</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tNDI Studio Monitor</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tOBS</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tvMix</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tAny other NDI-enabled product</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>LED Indicators</strong></p>\r\n
\t\t\t\t<p>\r\n
\t\t\t\t\tStatus LEDs indicate:</p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tPower supply: on/off</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tInput signal: locked/unlocked</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Form Factor</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t100.9mm (L) x 60.2mm (W) x 23.3mm (H)</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Accessories</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tUSB 2.0 A to B cable</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t5V/2.1A power adaptor</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tMini-DIN 8 breakout cable</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tTally light</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tL-bracket</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Screw Mounting Hole</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t¼–20 threaded hole</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t<p class="item-title">\r\n
\t\t\t\t\t<strong>Power Consumption</strong></p>\r\n
\t\t\t\t<ul>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t5V max current: ~1.5A</li>\r\n
\t\t\t\t\t<li>\r\n
\t\t\t\t\t\tMax power consumption: ~7W</li>\r\n
\t\t\t\t</ul>\r\n
\t\t\t\t<div class="item-row">\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t\u{A0}</p>\r\n
\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t<strong>Working Environment</strong></p>\r\n
\t\t\t\t\t<div class="item-content">\r\n
\t\t\t\t\t\t<ul>\r\n
\t\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t\t\t\tOperating temperature: 0 to 40 deg C</p>\r\n
\t\t\t\t\t\t\t</li>\r\n
\t\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t\t\t\tStorage temperature: –20 to 70 deg C</p>\r\n
\t\t\t\t\t\t\t</li>\r\n
\t\t\t\t\t\t\t<li>\r\n
\t\t\t\t\t\t\t\t<p>\r\n
\t\t\t\t\t\t\t\t\tRelative humidity: 5% to 90% non-condensing</p>\r\n
\t\t\t\t\t\t\t</li>\r\n
\t\t\t\t\t\t</ul>\r\n
\t\t\t\t\t</div>\r\n
\t\t\t\t</div>\r\n
\t\t\t</div>\r\n
\t\t</div>\r\n
\t</div>\r\n
</div>\r\n
"""
#status: App\Enum\ProductStatus {#1864
+name: "New"
+value: "new"
}
#warehouseStock: App\Entity\Product\WarehouseStock {#1878
#warehouse: App\Enum\Warehouse {#1880
+name: "Eshop"
+value: "eshop"
}
#quantity: 0
#reserved: 0
#targetStock: null
#immutable: false
}
#keywords: array:3 [
0 => "Pro"
1 => "SDI"
2 => "TX"
]
#generalComments: null
#published: true
#featured: false
#sku: "Pro SDI TX"
#mfrCode: "64060"
#blkCode: null
#eanCode: null
#supplierCode: "64060"
#type: Proxies\__CG__\App\Entity\Product\ProductType {#1923
-id: 22
-migrationId: ? ?int
-softoneId: ? ?int
-name: ? string
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1926
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#volumetricWeight: null
#views: 5
#sales: 0
#createdAt: DateTimeImmutable @1392496740 {#1856
date: 2014-02-15 22:39:00.0 Europe/Athens (+02:00)
}
#mainImage: Proxies\__CG__\App\Entity\Common\Files\ProductImage {#1941
#id: 21324
#path: ? string
#name: ? string
#mimeType: ? string
#size: ? int
#uploadedAt: ? ?DateTimeImmutable
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1942
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
#locale: null
#supplierUrl: "https://www.magewell.com/products/pro-convert-sdi-tx"
#inTheBoxText: """
<ul>\r\n
\t<li>\r\n
\t\tConverter</li>\r\n
\t<li class="item_u6ujeLWy3W" data-selenium="includesInTheBoxItem">\r\n
\t\t5V, 2.1A Power Adapter</li>\r\n
\t<li class="item_u6ujeLWy3W" data-selenium="includesInTheBoxItem">\r\n
\t\tUSB Type A to Type B Cable</li>\r\n
\t<li class="item_u6ujeLWy3W" data-selenium="includesInTheBoxItem">\r\n
\t\tMini-DIN8 to DIN8 + DB9 Cable</li>\r\n
\t<li class="item_u6ujeLWy3W" data-selenium="includesInTheBoxItem">\r\n
\t\tTally Light</li>\r\n
\t<li class="item_u6ujeLWy3W" data-selenium="includesInTheBoxItem">\r\n
\t\tL Bracket</li>\r\n
</ul>\r\n
"""
#priceGross: App\Entity\Common\Price {#1883
-amount: 44536
-currency: "EUR"
}
#onlineDiscountPercentage: 4
#priceWithDiscount: App\Entity\Common\Price {#1885
-amount: 42754
-currency: "EUR"
}
-availability: App\Enum\ProductAvailability {#1872
+name: "FifteenDays"
+value: "15_business_days"
}
#availableAt: null
#offer: false
#cashBack: false
#askForPrice: false
#manufacturer: Proxies\__CG__\App\Entity\Product\ProductManufacturer {#1955
-id: 193
-customId: ? ?string
-softoneId: ? ?int
-name: ? string
-slug: ? string
-url: ? string
-email: ? string
-published: ? bool
-officialDealer: ? bool
-europeanSupport: ? bool
-discountPercent: ? int|float|null
-extraDiscount: ? int|float|null
-logo: ? App\Entity\Common\Files\ManufacturerLogo
-products: ? Doctrine\Common\Collections\Collection
-rentals: ? Doctrine\Common\Collections\Collection
-lazyObjectState: Symfony\Component\VarExporter\Internal\LazyObjectState {#1952
+status: UNINITIALIZED_FULL
+realInstance: ? object
…3
}
}
-variantGroup: null
#productCategories: Doctrine\ORM\PersistentCollection {#2000
#collection: Doctrine\Common\Collections\ArrayCollection {#2001
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1390 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1980 …}
}
#extraWebsites: Doctrine\ORM\PersistentCollection {#2021
#collection: Doctrine\Common\Collections\ArrayCollection {#2022
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1391 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2002 …}
}
#images: Doctrine\ORM\PersistentCollection {#2023
#collection: Doctrine\Common\Collections\ArrayCollection {#2024
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1392 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#1191 …}
}
-attributes: Doctrine\ORM\PersistentCollection {#2057
#collection: Doctrine\Common\Collections\ArrayCollection {#2058
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\OneToManyAssociationMapping {#1396 …}
-backRefFieldName: "product"
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2025 …}
}
-priceUrl: null
-priceComments: "MVD Europe B.V. RESELLERS IN EURO DISC:0%, KERD:30% - EKT:0% - MET:20E"
-originalPrice: App\Entity\Common\Price {#1900
-amount: 32720
-currency: "EUR"
}
-supplierDiscount: 0
-specialDiscount: 0
-supplierShippingValue: App\Entity\Common\Price {#1901
-amount: 2000
-currency: "EUR"
}
-customsChargesPercentage: 0
-markupPercentage: 30
-packageDimensions: App\Entity\Product\Object\Dimensions {#1903
-lengthMm: 101
-widthMm: 60
-heightMm: 23
-details: null
-dimensionUnit: App\Enum\DimensionUnit {#1905
+name: "MILLIMETER"
+value: "mm"
}
}
-grossWeight: App\Entity\Product\Object\Weight {#1909
-grams: 480
-weightDetails: null
-weightUnit: App\Enum\WeightUnit {#1911
+name: "GRAM"
+value: "gr"
}
}
-productDimensions: null
-netWeight: null
-warranty: App\Enum\Warranty {#1890
+name: "TwoYears"
+value: "2-Years"
}
-accessories: null
#references: Doctrine\ORM\PersistentCollection {#2085
#collection: Doctrine\Common\Collections\ArrayCollection {#2086
-elements: []
}
#initialized: false
-snapshot: []
-owner: App\Entity\Product\Object\Product {#1859}
-association: Doctrine\ORM\Mapping\ManyToManyOwningSideMapping {#1397 …}
-backRefFieldName: null
-isDirty: false
-em: Doctrine\ORM\EntityManager {#255 …11}
-typeClass: Doctrine\ORM\Mapping\ClassMetadata {#2059 …}
}
}
BLK
