Magewell Converter
Pro HDMI 4K Plus
MFR# 64010
in-Store Price: 1.027,36€ + VAT
Online Price: 986,26€ + VAT
- Video Converter
- HDMI 4K input with embedded audio
- NDI 4K stream output
- HDMI Loop output
Convert one channel of HDMI signal with embedded audio to NDI® stream.
Loop-through one channel of HDMI signal with embedded audio.

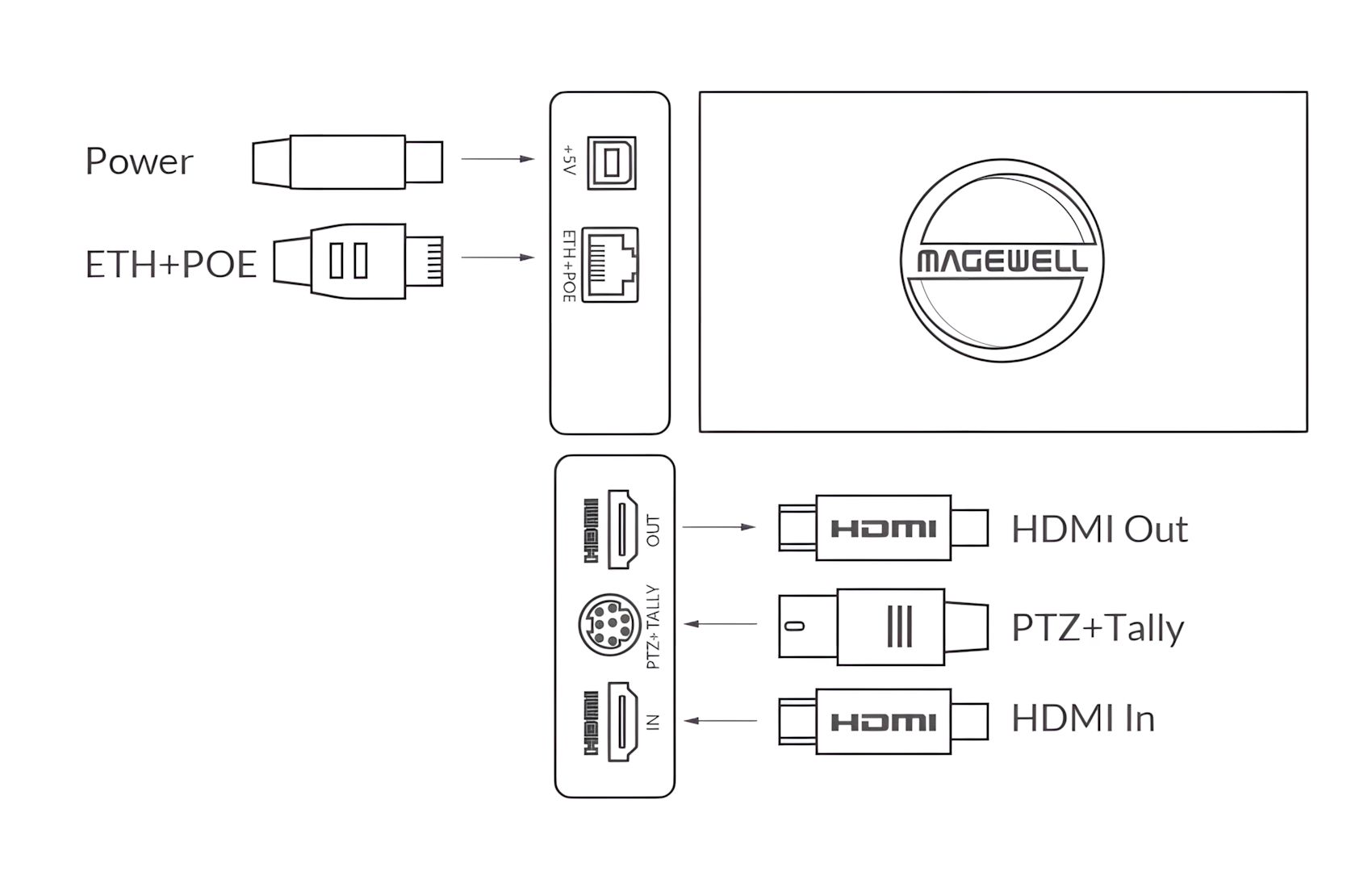

Interface
Input interface
HDMI x1
Support up to 4096×2160p60
Loop-through Interface
HDMI x1
Support up to 4096×2160p60
USB Interface
USB 2.0 for power and data transfer
Network Interface
10/100/1000 Mbps Ethernet
Support IEEE 802.3af PoE
Power Interface
DC+5V
PTZ Interface
Mini-DIN-8
NDI Encoding
Up to 4Kp60 4:2:2
Firmware
Upgradable firmware
Others
LED Indicators
Tally Lights
2-year Warranty
SD Card Slot
1/4-20 Mounting Hole
Loop-through one channel of HDMI signal with embedded audio.
Interface
Input interface
HDMI x1
Support up to 4096×2160p60
Loop-through Interface
HDMI x1
Support up to 4096×2160p60
USB Interface
USB 2.0 for power and data transfer
Network Interface
10/100/1000 Mbps Ethernet
Support IEEE 802.3af PoE
Power Interface
DC+5V
PTZ Interface
Mini-DIN-8
NDI Encoding
Up to 4Kp60 4:2:2
Firmware
Upgradable firmware
Others
LED Indicators
Tally Lights
2-year Warranty
SD Card Slot
1/4-20 Mounting Hole
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Converter Type
-
Digital to Digital Converter
- Power Type
-
External Power Adapter
CONNECTIONS
- Video inputs
-
HDMI 4K x1
- Video outputs
-
Ethernet (Video) x1
- Audio inputs
-
Embedded audio HDMI x1
- Audio Output
-
8CH Embedded Audio HDMI x1
8CH embedded audio Stream x1
- PC Connections
-
USB2.0
Ethernet RJ-45
- Other Connections
-
Tally
PTZ Control
GENERAL FEATURES
- Max Resolution Supported
-
SD 480i NTSC
SD 576i PAL
HD 720: 1280 x 720pixels (16:9 aspect ratio)
Full HD: 1920 x 1080pixels (16:9 aspect ratio)
2K: 2048 x 1080pixels (1.89 aspect ratio)
- Output Resolution
-
SD 480i NTSC
SD 576i PAL
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
2K: 2048 x 1080pixels(1.89 aspect ratio)
2K: 2048 x 2160pixels
- Frames Supported
-
Input: Up to 4096x2160 4:4:4 60fps.
Output: 4:2:2 8-bit up to 4096x2160 60fps or 1920x1080 240fps.
MORE SPECIFICATIONS
- Extras
-
Video brightness, contrast, saturation, hue adjustment.
1/4-20 Mounting Hole.
SD Card.
- Power
-
Power adapter
Powered through ethernet cable (PoE)
- Power Consumption
-
10Watt (5V/2A)
- Country of Origin
-
China
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 11.7 x 6.6 x 2.3 cm
- Total Weight
- 580 gr
- Converter
- Power adapter
- Operation Manual
- Magewell_Pro-Converter-NDI_Manual.pdf
