Smallrig Battery
X-99 Touch V-Mount
MFR# 4984
BLK# 394-0827
in-Store Price: 283,99€ + VAT
Online Price: 272,63€ + VAT
- Li-Po Battery
- V-Lock type battery with USB
- 14.5V, 6.8Ah, 99Wh
- USB-C & D-TAP IN/OUT, USB-A Output
SmallRig X-Touch Smart Triple-Proof (1.5m / 4.9ft Drop-Resistant, IP54 Waterproof / Dustproof) V-Mount Battery X99 4984 sets a new standard for professional power solutions by integrating smart technology, rugged protection, high-power fast charging and multi-port versatility, making it ideal for demanding shooting environments.
The battery's smart management system is centered around a 2.0-inch HD color touchscreen with a frosted anti-glare surface, ensuring optimal visibility in all lighting conditions. A dedicated mobile app offers comprehensive remote control features, including battery level monitoring, port management, battery location tracking, and OTA updates, significantly enhancing on-set workflow efficiency.
Designed to endure the rigors of professional use, the X99 incorporates triple-proof protection: a 1.5m (4.9ft) drop-resistant housing with eight silicone-protected corners and four reinforced edges, full metal side panels, and fully reinforced internal circuitry. With an IP54 rating, it ensures reliable operation when exposed to water splashes, rain, or dust, making it perfect for outdoor productions.

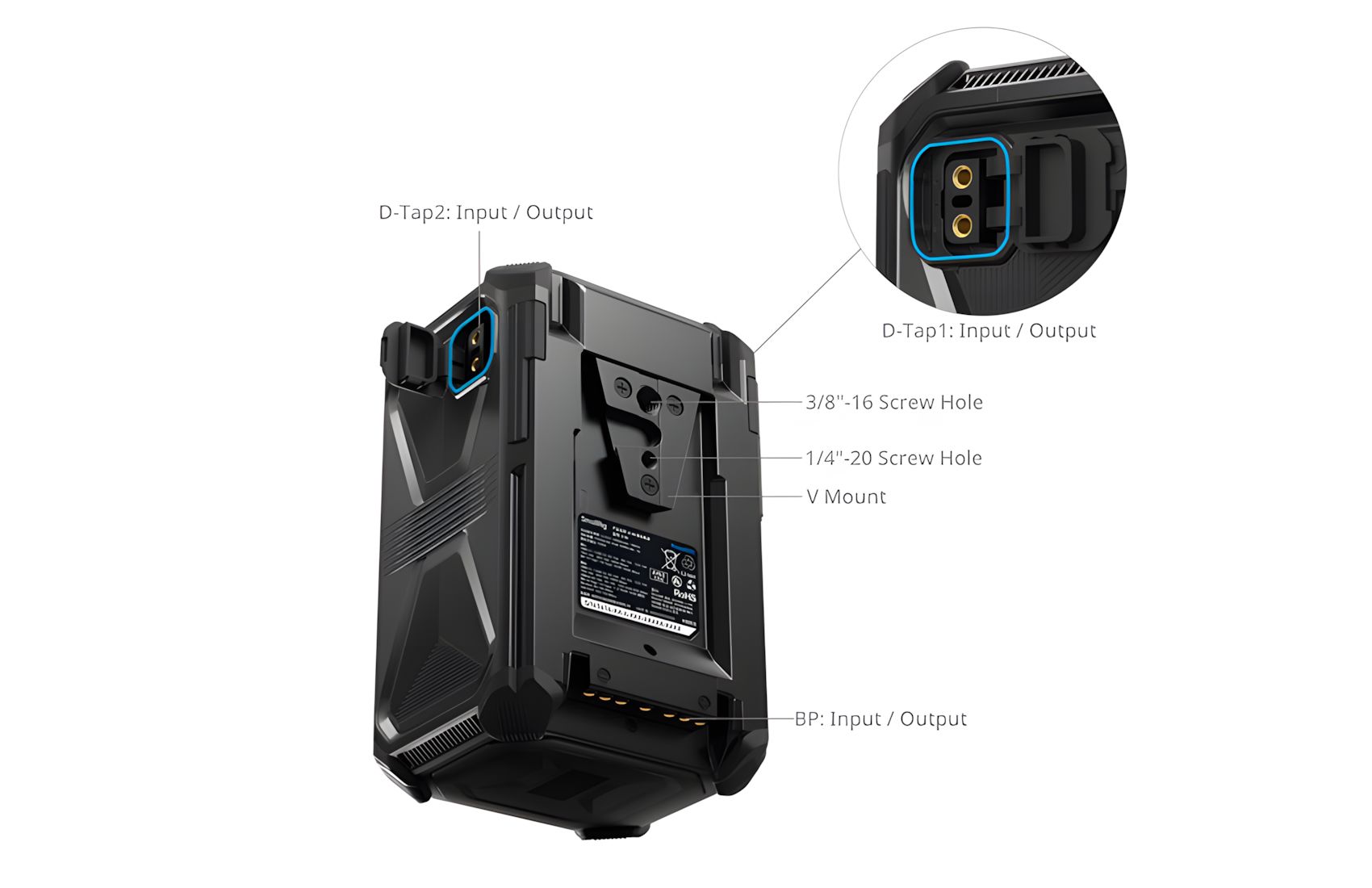

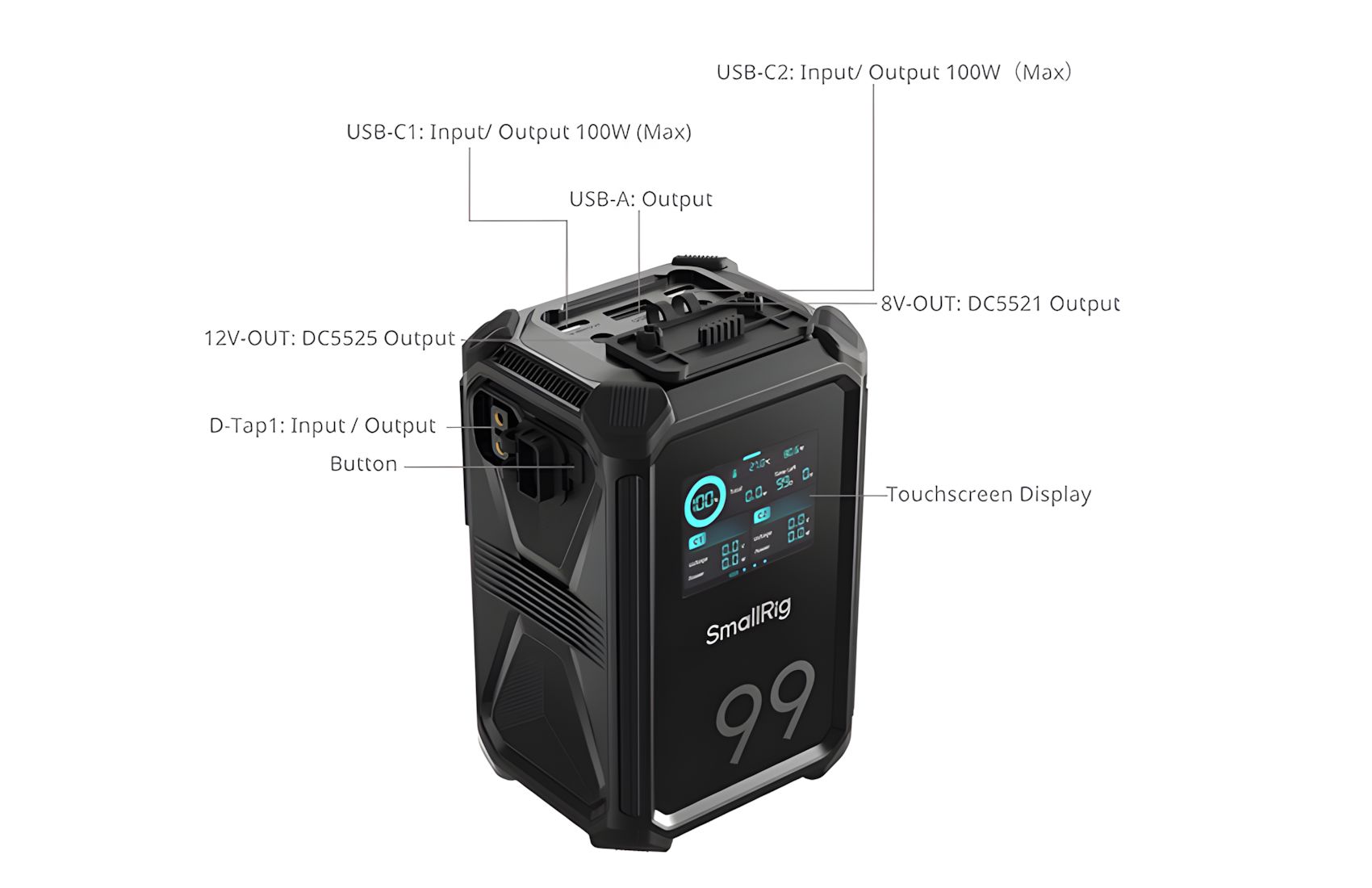

The battery features eight strategically placed ports: one BP port, two D-Tap ports, two USB-C ports (100W PD fast charging), one USB-A port, and two DC ports. Each port operates on an independent circuit, allowing multiple devices to charge simultaneously. The integrated BMS control chip guarantees rapid charging (fully charged in only two hours) and stable, safe power output.
At its core, the X99 utilizes premium LG battery cells, renowned for their exceptional cycle life and accurate battery readings. Innovative designs include dual mounting options (1/4" & 3/8" threaded holes) and a backlight indicator for effortless installation even in dim light. These professional-grade features combine to make the X99 an indispensable power solution for serious content creators.
Certifications: FCC, CE, RoHS, ISED, PSE, RCM
Note: Batteries cannot shipped abroad
Key Features
Note: Batteries cannot shipped abroad
Key Features
- Tri-Proof Rugged Design:Engineered with IP54 water resistance, 1.5m (4.9ft) drop-proof housing, and fully reinforced dust- and shock-resistant construction with protected corners and all-metal side plates. Reliable performance in rain, dust, and harsh outdoor filming environments.
- Intelligent Smart Control & App Integration:Manage and monitor one or multiple batteries remotely via the dedicated mobile app. Features smart port control, dynamic load balancing, OTA updates, multi-battery positioning, and a built-in LED locator for fast, efficient workflow during shoots.
- Multi-Port Fast Power Hub:Provides 8 independent output ports: 2 D-Tap, 2 USB-C (PD 3.0, up to 100W), 1 BP, 1 USB-A, and dual DC outputs (8V/12V). Simultaneously power or charge cameras, monitors, lights, phones, tablets, and laptops. Supports rapid 2-hour charging even at -10°C for professional reliability.
- 2-Inch Anti-Glare Touchscreen:Large HD touchscreen with gorilla glass, anti-glare, and anti-fingerprint coating ensures easy monitoring and port management even under sunlight. Instantly view battery stats, port status, and control outputs with 8-second power-saving and anti-misoperation function.
- Safe and Reliable Power Delivery:Built with premium LG battery cells, 12-layer circuit protection, and active cooling. Certified to TSA, UN38.3, and other international safety standards. Triple protection includes drop-resistance, reinforced structure, and IP54-level sealing, ensuring long-term reliability for global travel and demanding productions.
Work With

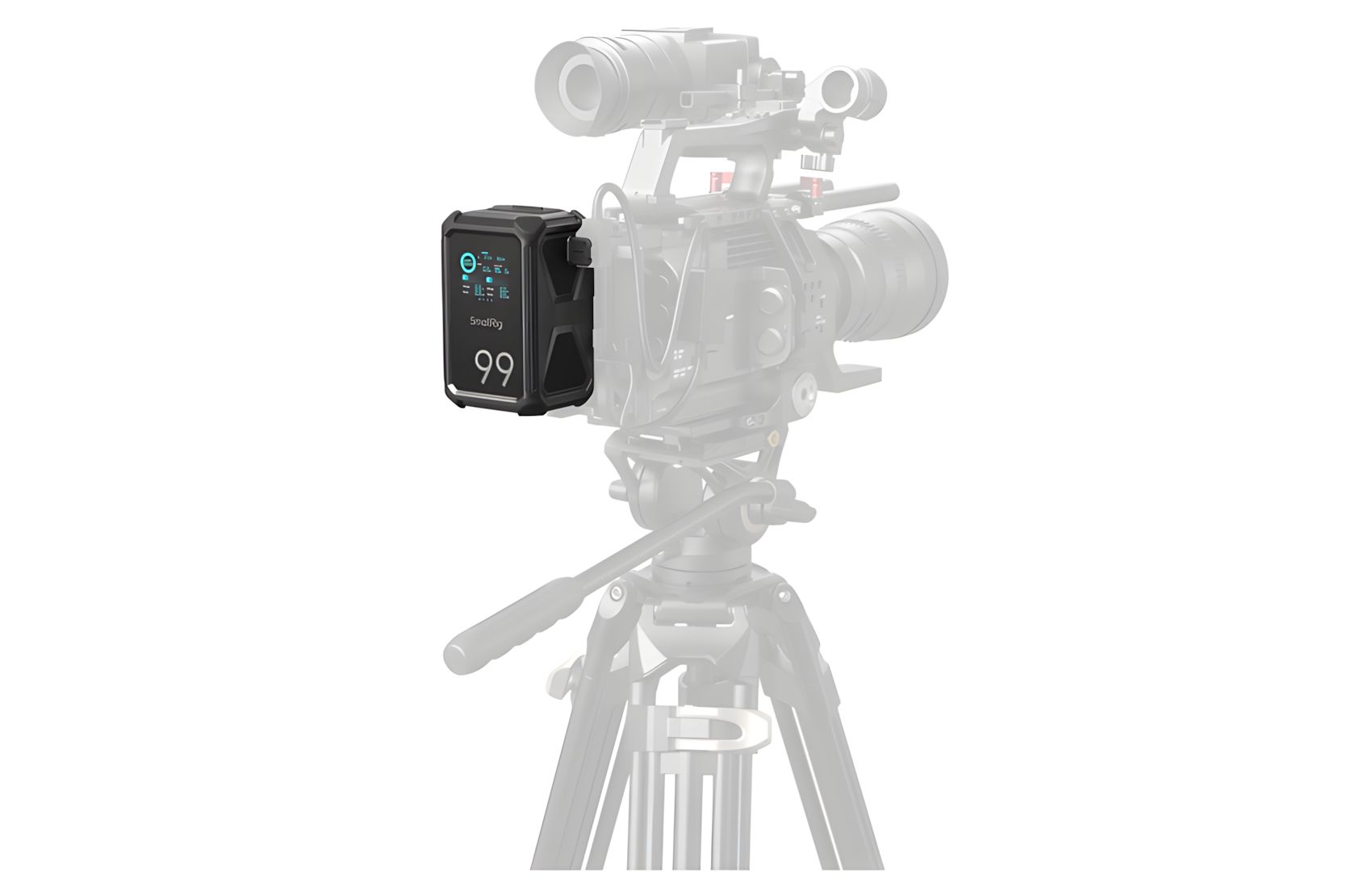

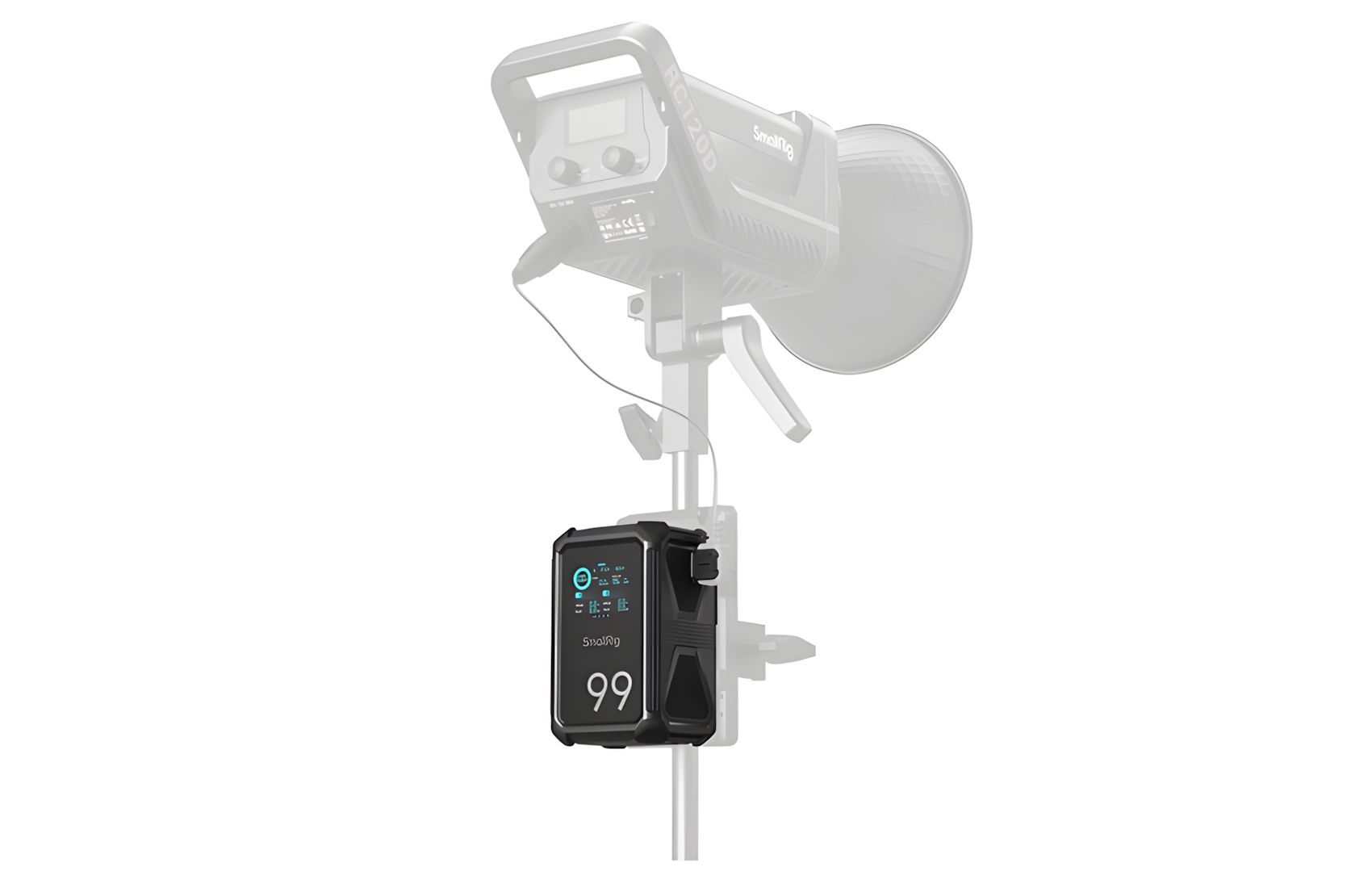

Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.
|
Item
|
Specifications
|
|
|
Material(s)
|
Fire-resistant PC, ABS, Aluminum Alloy
|
|
|
Battery Type
|
Lithium Polymer Battery
|
|
|
Rated Battery Parameters
|
14.54V / 6800mAh / 99Wh
|
|
|
Maximum Output Power
|
100W
|
|
|
Battery Capacity
|
27200mAh (Cell: 3400mAh x 8)
|
|
|
Input
|
USB-C1 / USB-C2
|
5V = 3A, 9V = 3A, 12V = 3A, 15V = 3A, 20V = 5A; 100W (Max)
|
|
|
BP / D-Tap1 / D-Tap2
|
16.8V (Max); 6.8A
|
|
Output
|
USB-C1 / USB-C2
|
5V = 3A, 9V = 3A, 12V = 3A, 15V = 3A, 20V = 5A; 100W (Max)
|
|
|
USB-A
|
5V = 3A, 9V = 3A, 12V = 2.5A (30W Max)
|
|
|
BP / D-Tap1 / D-Tap2
|
11.1-16.8V / 6.8A (Rated)
|
|
|
8V (OUT)
|
8V = 3A (Max)
|
|
|
12V (OUT)
|
12V = 3A (Max)
|
|
Charging Protocols
|
USB-C1 / USB-C2
|
PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, Apple 2.4A
|
|
|
USB-A
|
QC3.0, QC2.0, AFC, FCP
|
|
Cut-off Voltage
|
11.2V
|
|
|
Charging Temperature
|
0°C to 45°C / 32°F to 113°F
|
|
|
Discharging Temperature
|
-15°C to 60°C / 5°F to 140°F
|
|
|
Charging Ports
|
BP, D-Tap, USB-C
|
|
|
Drop Resistance Rating
|
1.5 meters (5 feet)
|
|
|
Ingress Protection Rating
|
IP54
|
|
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Battery Type
-
V-Lock
GENERAL FEATURES
- Cells Type
-
Lithium-Po
- Output Voltage
-
14.4V
- Capacity (Wh)
-
99.0
- Color
-
Black
- Capacity (mAh)
-
6800
- External Connections
-
D-TAP 2
USB 1
USB-C 2
Barrel 8V 1
Barrel 12V 1
- Capacity indicators
-
Yes
- Suitable for
-
Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.
MORE SPECIFICATIONS
- Extras
-
DC1 Barrel Output: 8.0V/Max3A.
DC2 Barrel Output: 12.0V/Max3A.
11.2V Cut-Off Voltage.
Aluminum Alloy and Fireproof PC Material.
- Country of Origin
-
China
- Warranty
- 2 Years
PHYSICAL

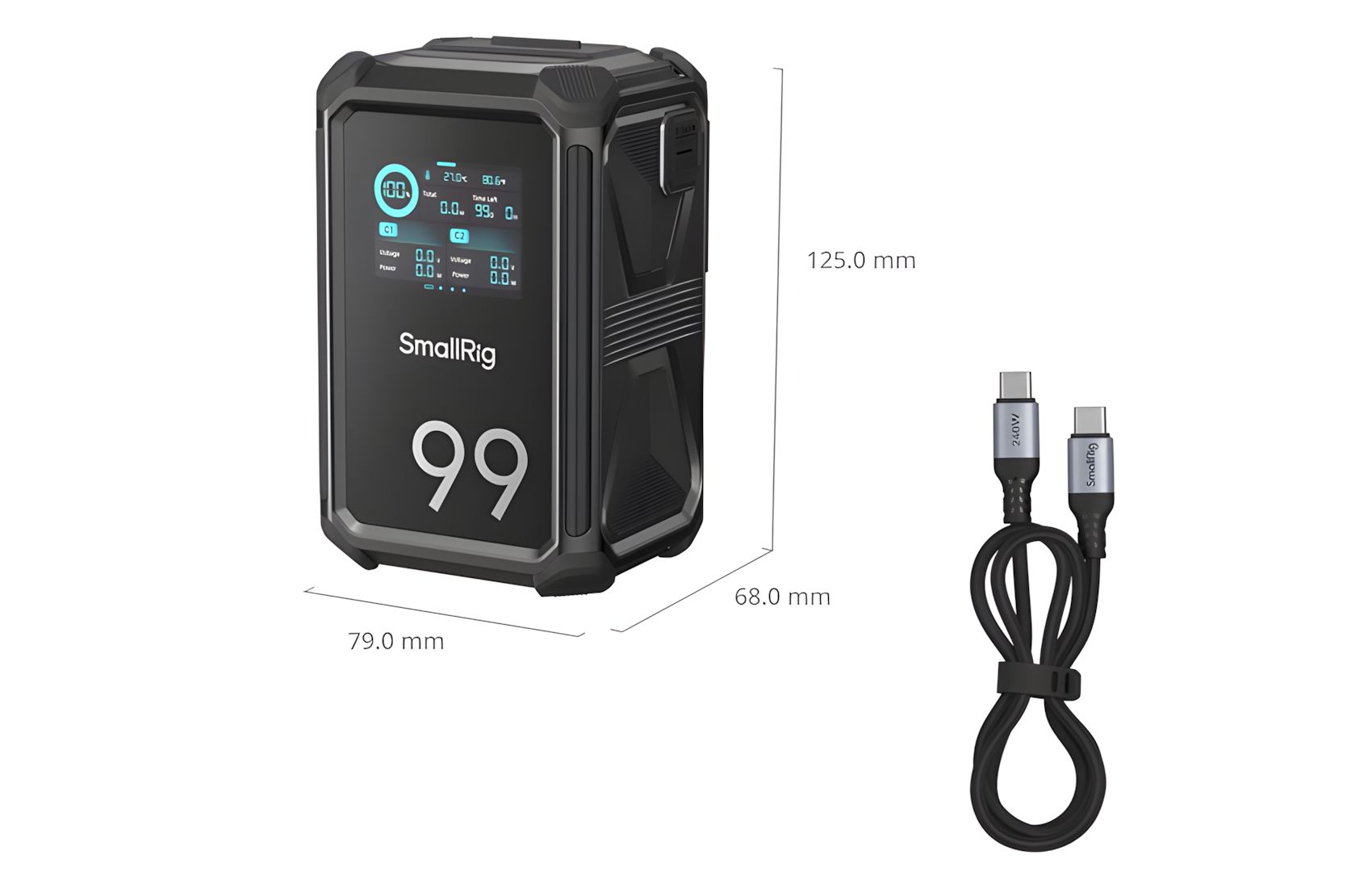

- Total Dimensions (LxWxH)
- 16 x 13.5 x 5.3 cm
- Total Weight
- 1.135 kg
- X99 V-Mount Battery
- 240W USB-C Charging Cable
- User Manual
- Operation Guide
-
