Excellent HD resolution
1/2.8 inch CMOS sensor. 1080p HD resolution.
30x optical zoom with digital noise reduction
The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.
Controllable by VISCA/DVIP
The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.
Metal housing
Rugged metal housing for use in the roughest conditions.
Tally light
Tally LED Design to make your live video production much easier.
1/2.8 inch CMOS sensor. 1080p HD resolution.
30x optical zoom with digital noise reduction
The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.
Controllable by VISCA/DVIP
The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.
Metal housing
Rugged metal housing for use in the roughest conditions.
Tally light
Tally LED Design to make your live video production much easier.
STATUS
- Status
- Discontinued
- Availability
- Available on order: 15 Business Days
- Camera Type
-
Studio Camera
Compact Camera
HD Camera
VIDEO SPECIFICATIONS
- Max Video Resolution
-
HD
LENS SYSTEM
- Sensor Type
-
CMOS
- Sensor Size
-
1/3" (crop factor 7.21)
- Sensor Resolution
-
2.14MP
- Lens Mount
-
Fixed
- Focal Length (35mm equivalent)
-
29mm to 870mm (35mm equivalent)
- Optical Zoom
-
30X optical.
- Max Aperture
-
Zoom out: F/1.6 - F/16.
Zoom in: F/4.7 - F/16

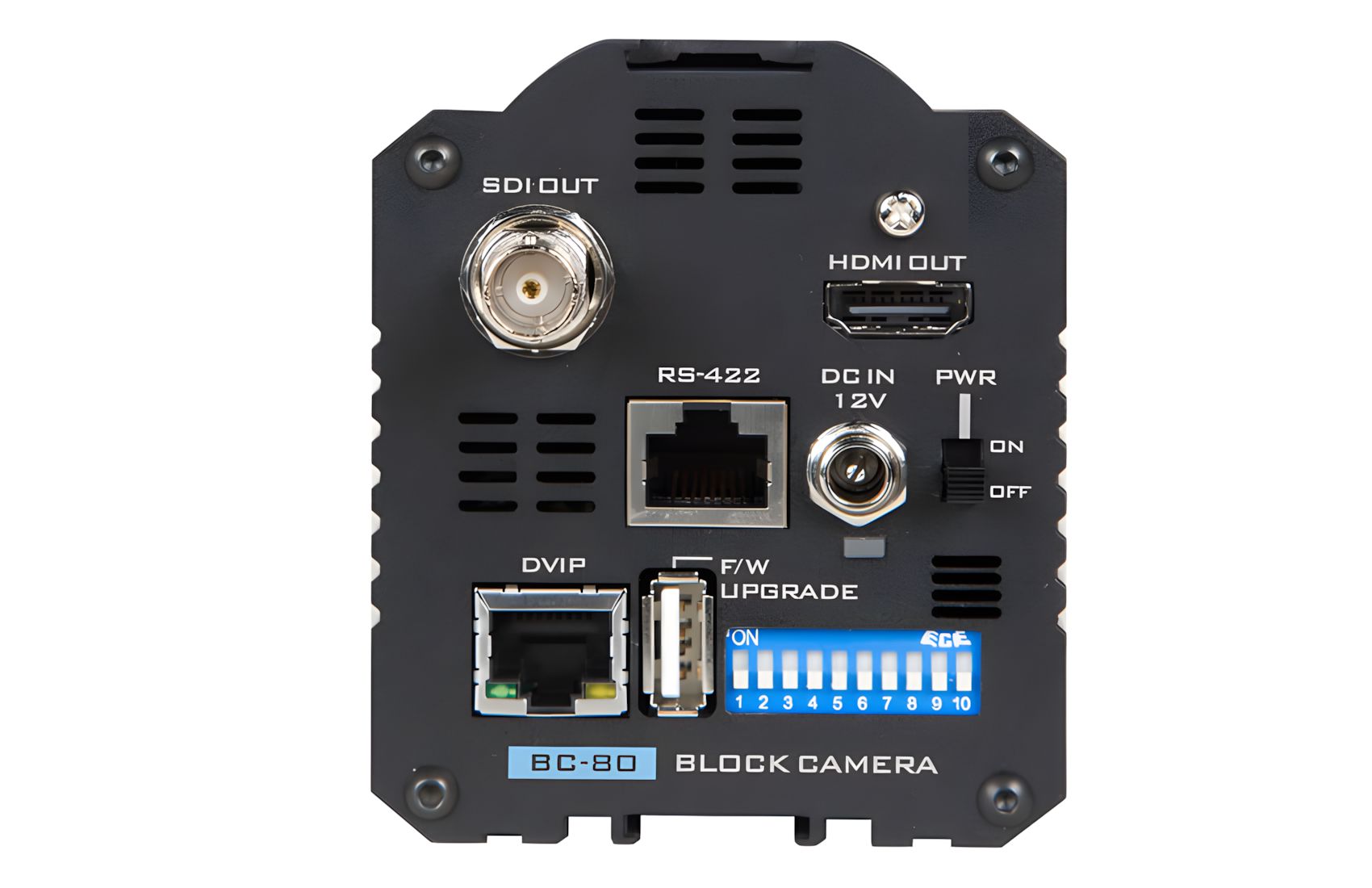

CONNECTIONS
- Video outputs
-
3G-SDI x1
HDMI x1
- PC Connections
-
USB
RS-422
Ethernet RJ-45
GENERAL FEATURES
- Shutter speed
-
1/25 ~ 1/1500 sec
- Min. Illumination
-
Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High).
B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High).
- Internal Live Streaming
-
No
MORE SPECIFICATIONS
- Extras
-
H.264, H.265, MJEPG Video compression.
Tally support.
VISCA / DVIP Protocol.
Day and night function.
- Power
-
Power adapter
- Power Consumption
-
15W(12V/1.25A)
- Country of Origin
-
China
- Warranty
- 3 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 7.1 x 20.2 x 8.3 cm
- Total Weight
- 700 gr
- 1 x BC-80 main unit
- 1 x Thank You Card
- 1 x IR remote control
- 1 x DC 12V power adaptor
-
Pdf not available.
Video not available.
