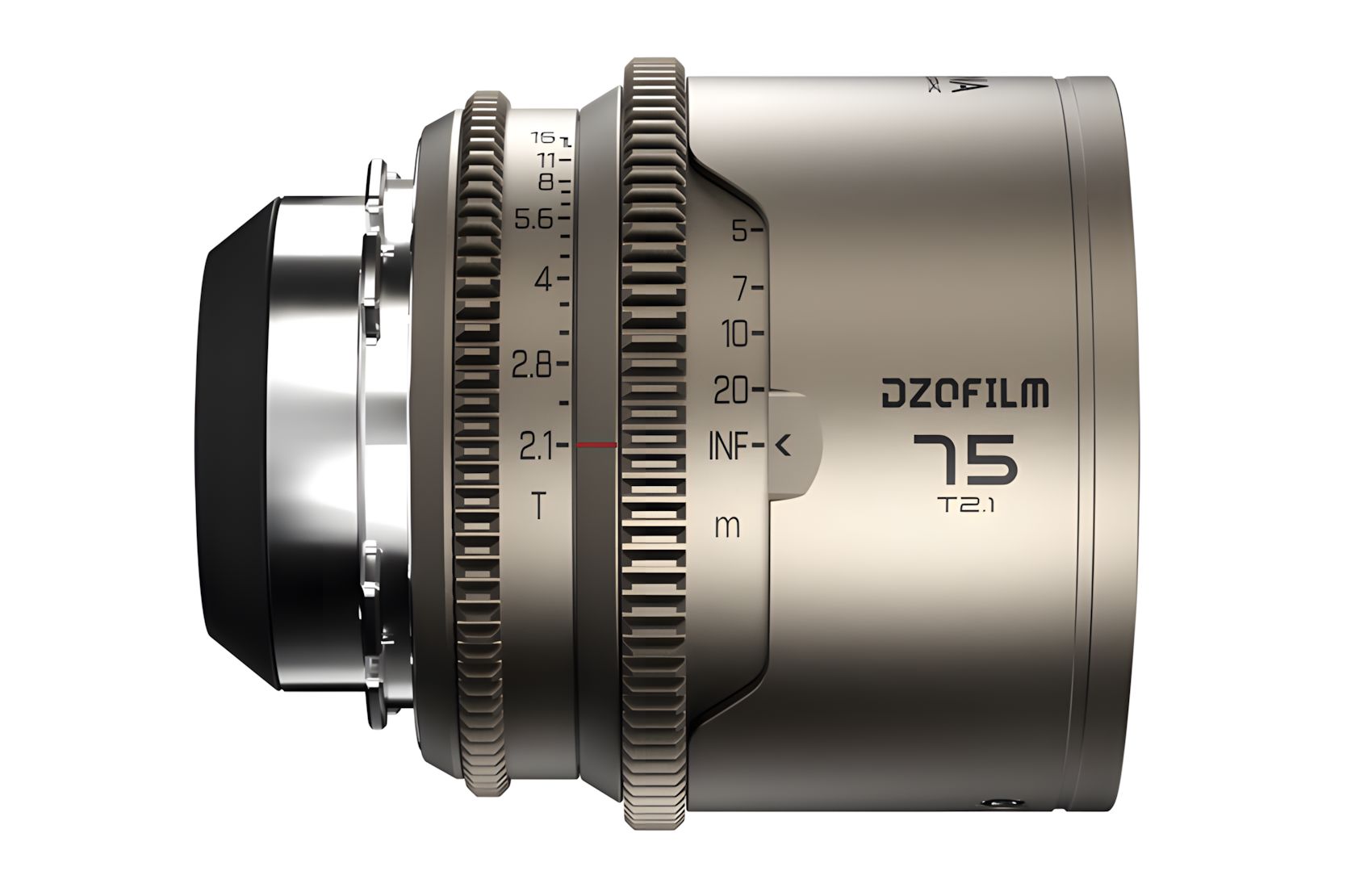

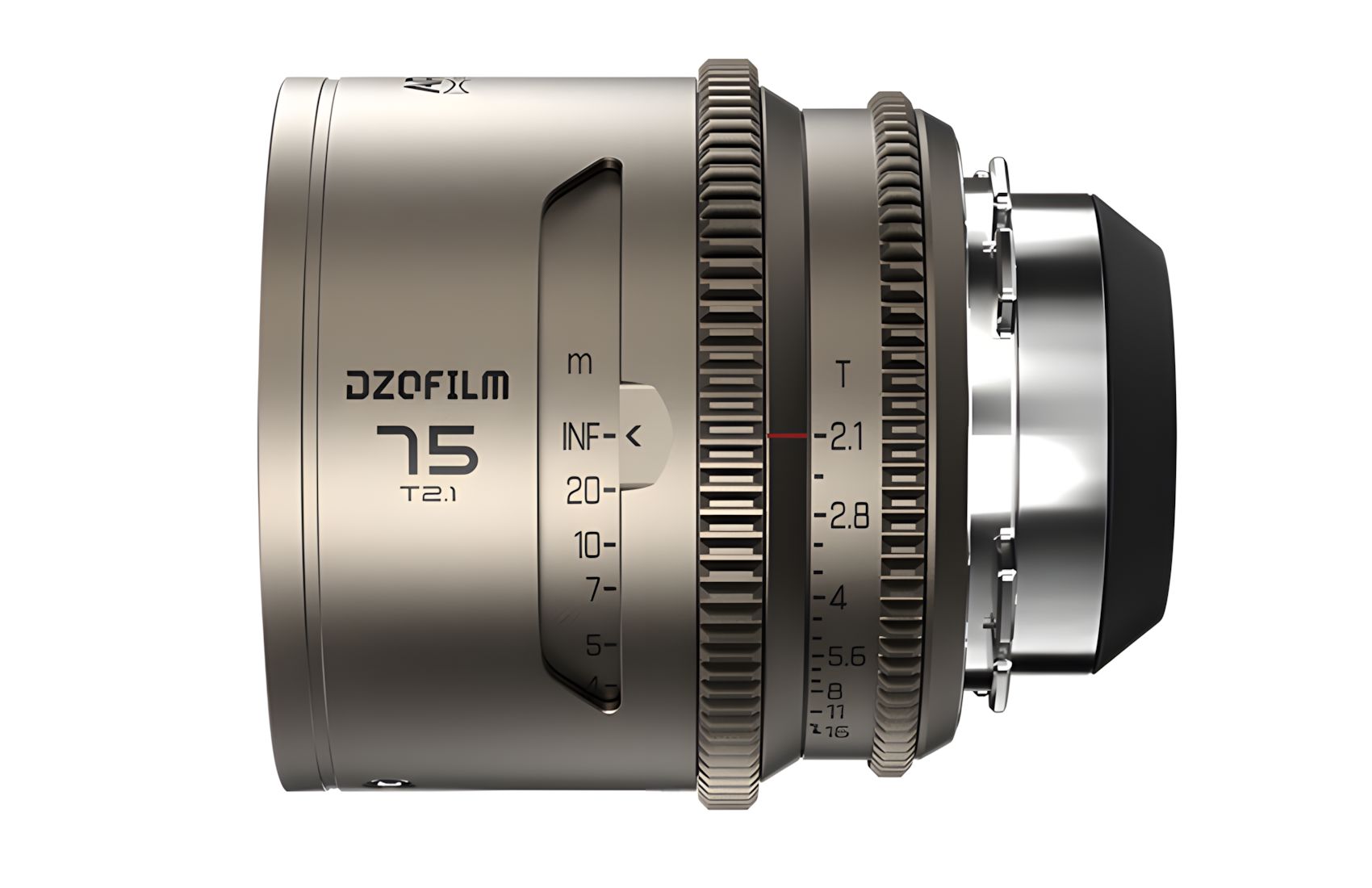

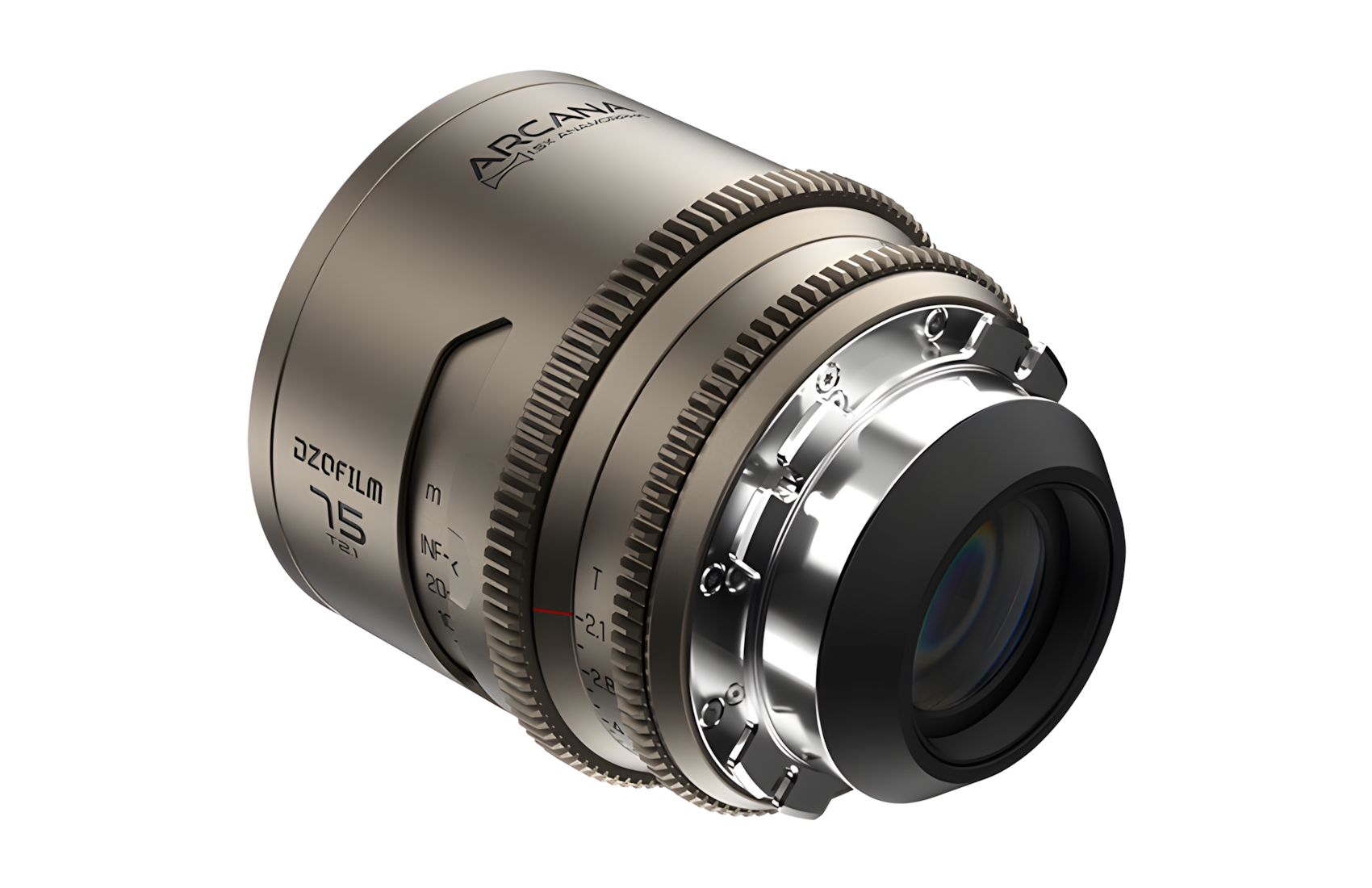

Arcana 1.5X Anamorphic T2.1 Full frame
Iconic Cinematic Anamorphic Look & Pro Image Quality
Innovative 1.5x hybrid anamorphic design delivers classic 2x waterfall bokeh and color-shifting horizontal streaking flares. 3 ED ultra-low dispersion, 4 high-refractive and 4 cylindrical lenses ensure sharp clarity, edge detail and low chromatic aberration, with full-frame coverage and consistent T2.1 aperture for professional film-grade aesthetics.
Ultra-Portable 700g Gimbal-Friendly Build
Each lens weighs only 690–710g (≈700g) with compact 80mm length, ideal for handheld, gimbal and Ronin 4D use. Uniform 80mm front diameter supports 77mm filters across the Arcana series, and consistent weight avoids repeated gimbal balancing, streamlining workflow.
Stable Optics & Less Post-Production Work
Front cylindrical lens design ensures constant squeeze ratio from close focus to infinity, effectively suppressing face widening and reducing post-production correction. 48–78cm minimum focus enables versatile close-ups, while full aluminum alloy body with titanium anti-fingerprint coating provides durable, premium finish.
Broad Compatibility for Multi-Platform Shooting
Short rear optical design ensures perfect compatibility with VND filter adapters and autofocus adapter rings. Multi-position PL mount supports vertical shooting and adapts to most camera mounts, seamlessly working with cinema cameras and mirrorless systems for efficient content creation.
Professional Filmmaking for Diverse Creators
Arcana Anamorphic Lens is ideal for film students, upgrading photographers and independent production teams. Backed by DZOFilm, it delivers professional anamorphic quality for short dramas, web series and creative content creation.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
GENERAL FEATURES
- Focal Length
-
75mm
75mm
- 35mm Equivalent
-
75
- Maximum Aperture (f/T)
-
2.1
2.1
- Supported Sensors
-
Full Frame
Full Frame
- Min. Focus Distance (cm)
-
78.0
- Auto Focus Support
-
No
No
- Optical Image Stabilizer
-
No
No
- Macro
-
No
No
- Manual Rings
-
2 Rings(Focus, Aperture)
2 Rings(Focus, Aperture)
- Front Diameter (mm)
-
80.0
- Filter Diameter (mm)
-
77
MORE SPECIFICATIONS
- Extras
-
15 Elements in 11 Groups.
14 Iris Blades.
Gimbal Friendly.
Squeeze Factor: 1.5X.
- Country of Origin
-
China
China
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 42 x 34 x 18 cm
- Total Weight
- 709 gr
- Lens
- Front Cap
- PL Rear cap
- Shim Box
- Screw Box
- T6 screwdriver
- Focal length sticker
- Logo sticker
- Catalog
- DZOFILM_Catalog.pdf
