Tilta Cage
Kit for Canon R5 Mark II
MFR# TA-T68-B-B
BLK# 544-0349
in-Store Price: 80,74€ + VAT
Online Price: 77,50€ + VAT
- Aluminum Cage Kit
- For Canon R5 Mark II
- With NATO Top Handle
- 1/4", 3/8" Threads & Cold Shoe

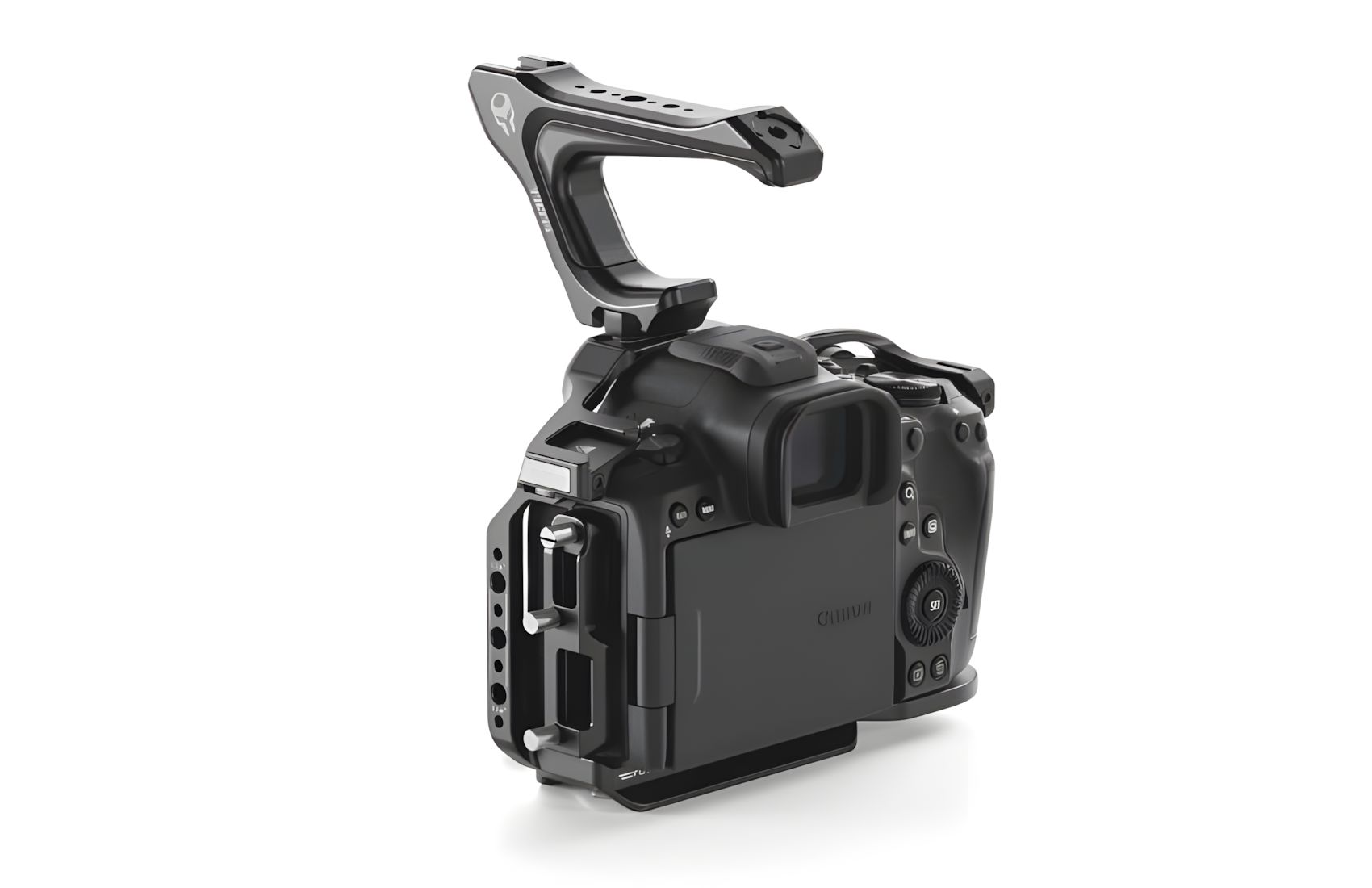

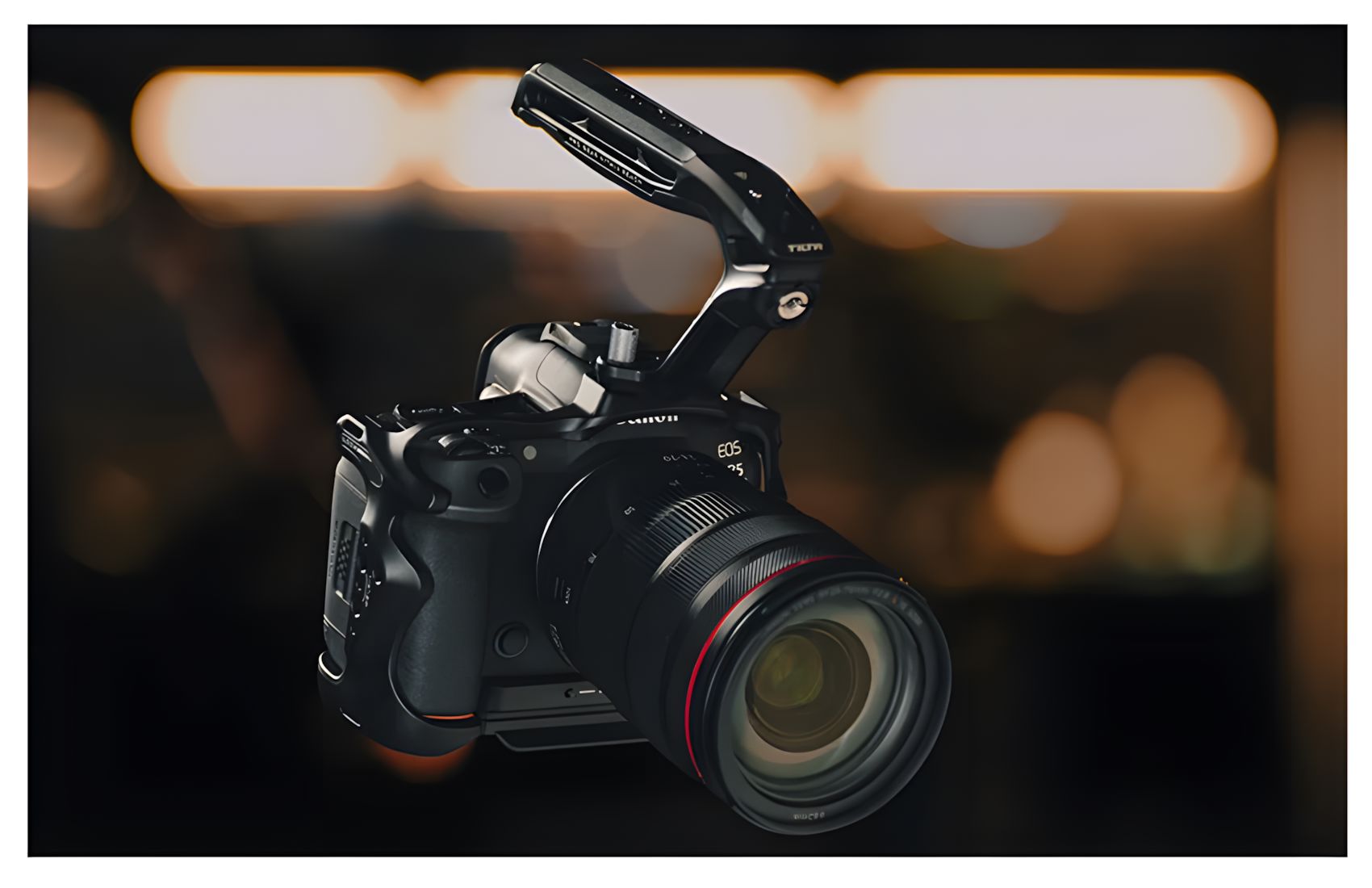

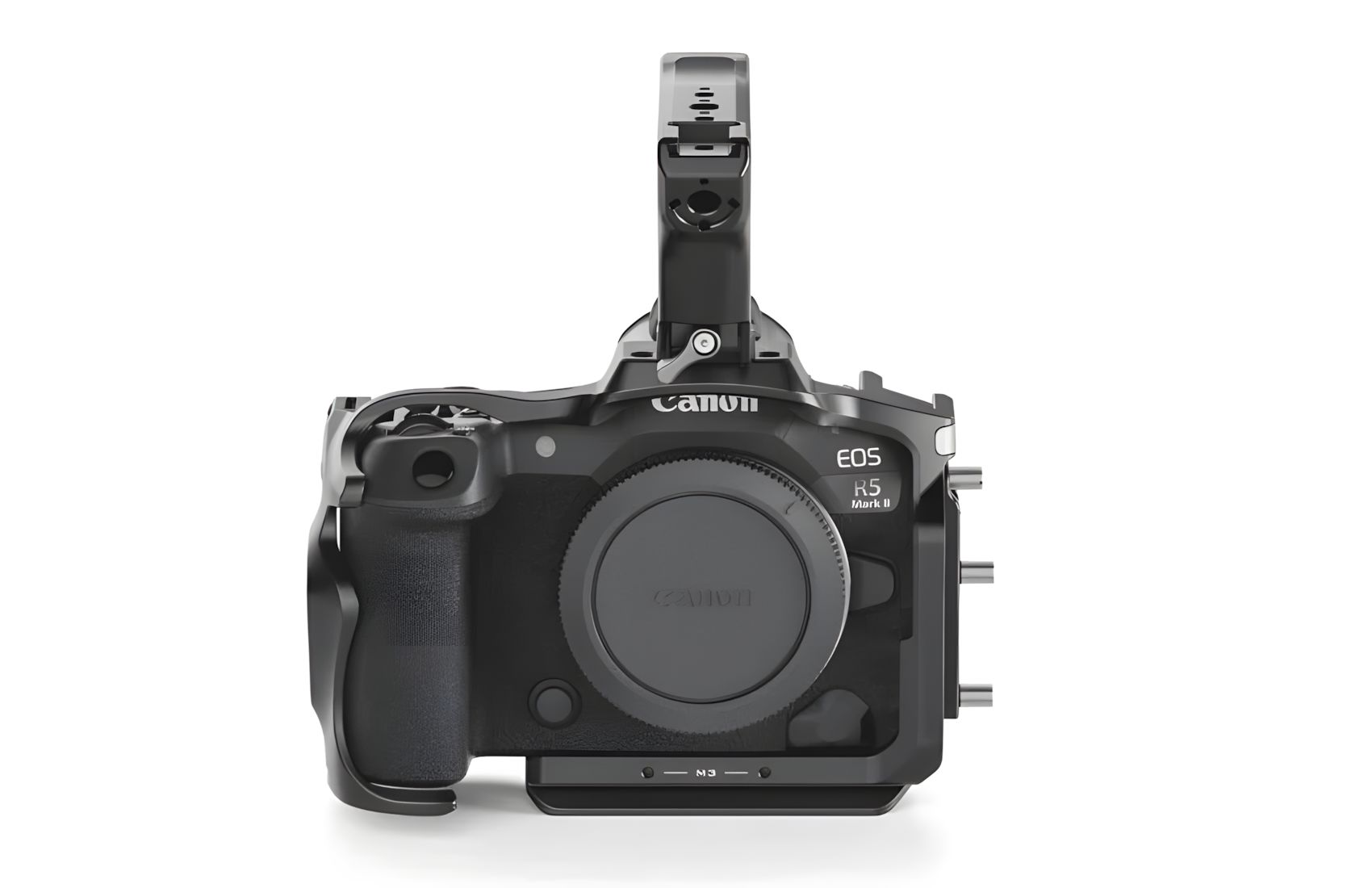

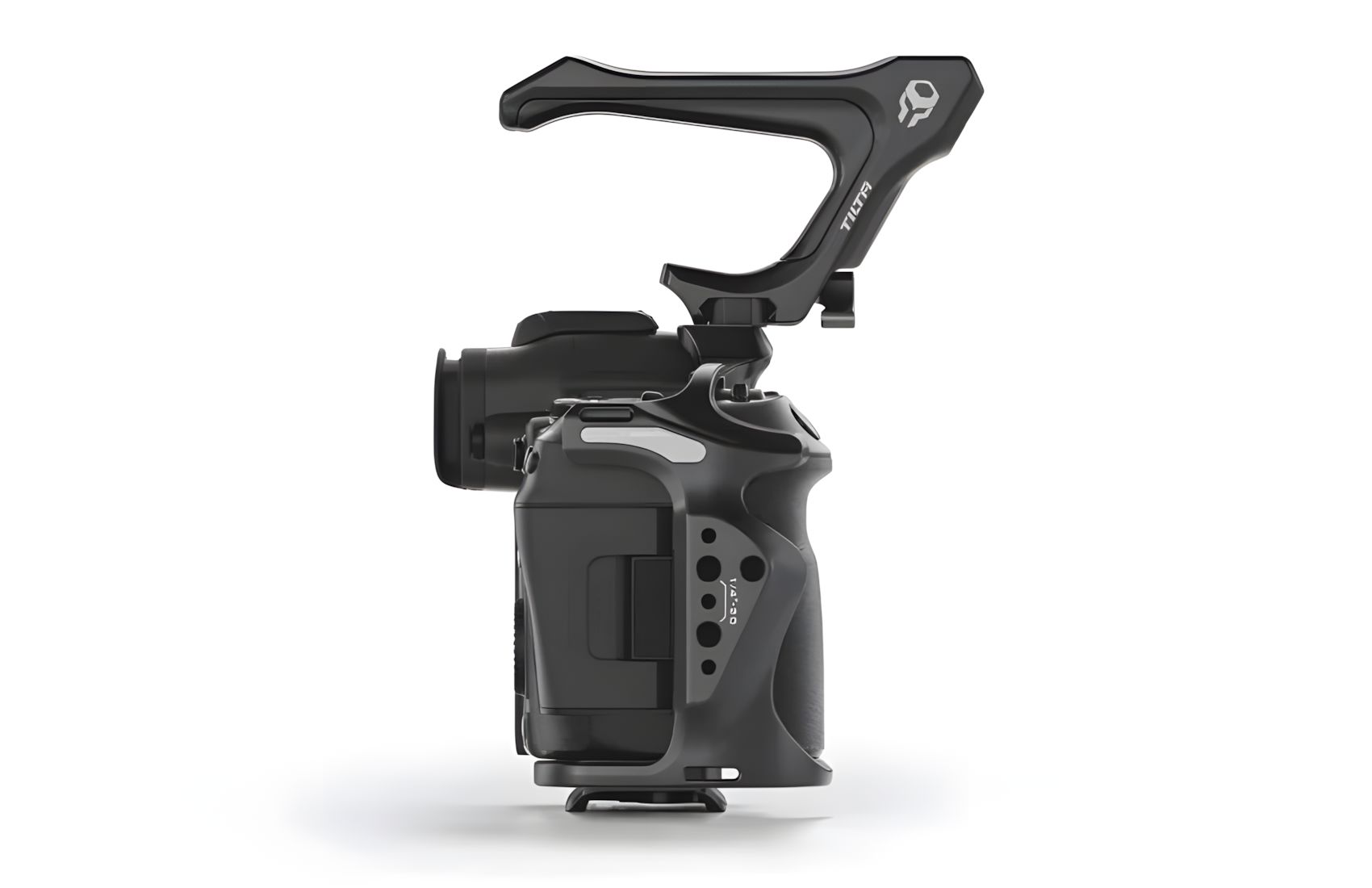

Introducing the Camera Cage for Canon R5 Mark II Lightweight Kit
This camera cage provides additional protection for the camera body while expanding mounting options for various accessories.
The Full Cage features a Cold Shoe Receiver, M3 threads for mount adapter support, wrist strap holders, 1/4″-20 and 3/8″-16 threads, both with locating points.
A unique 3/8″-16 thread on the top of the cage features a removable 1/4″-20 adapter which makes this the perfect option for a variety of top handles.
Soft silicone padding and multiple points of contact between camera and cage ensure a solid connection and a strong foundation for mounting accessories.
The included cable clamp mounts directly to the camera body with or without the camera cage and provides increased security for cables.
It also features thumbscrews which allow various cables to be quickly secured or removed and ensures no tools will be necessary to use this accessory.
The included NATO Rail mount and Top Handle offer more flexible operating options, especially useful for low angles shots.
This handle also expands mounting options with additional 1/4″-20 threads and a Cold Shoe Receiver, perfect for an external monitor.
Features
Lightweight Protection
Constructed with aerospace-grade aluminum alloy using CNC machining, balancing weight and functionality while providing reliable protection for the camera.
Flexible Adaptation
The full cage features 1/4″ threads on top, one of which can be converted to a 3/8″ thread. Both sides feature locating points, allowing for the installation of various handle types.
Seamless Integration
Soft silicone at the contact points, ensures the protection of the camera body and does not block the original ports or battery compartment.
Thumb Screws For Cable Clamp
Compatible with both the full and half cage, as well as the camera body directly.

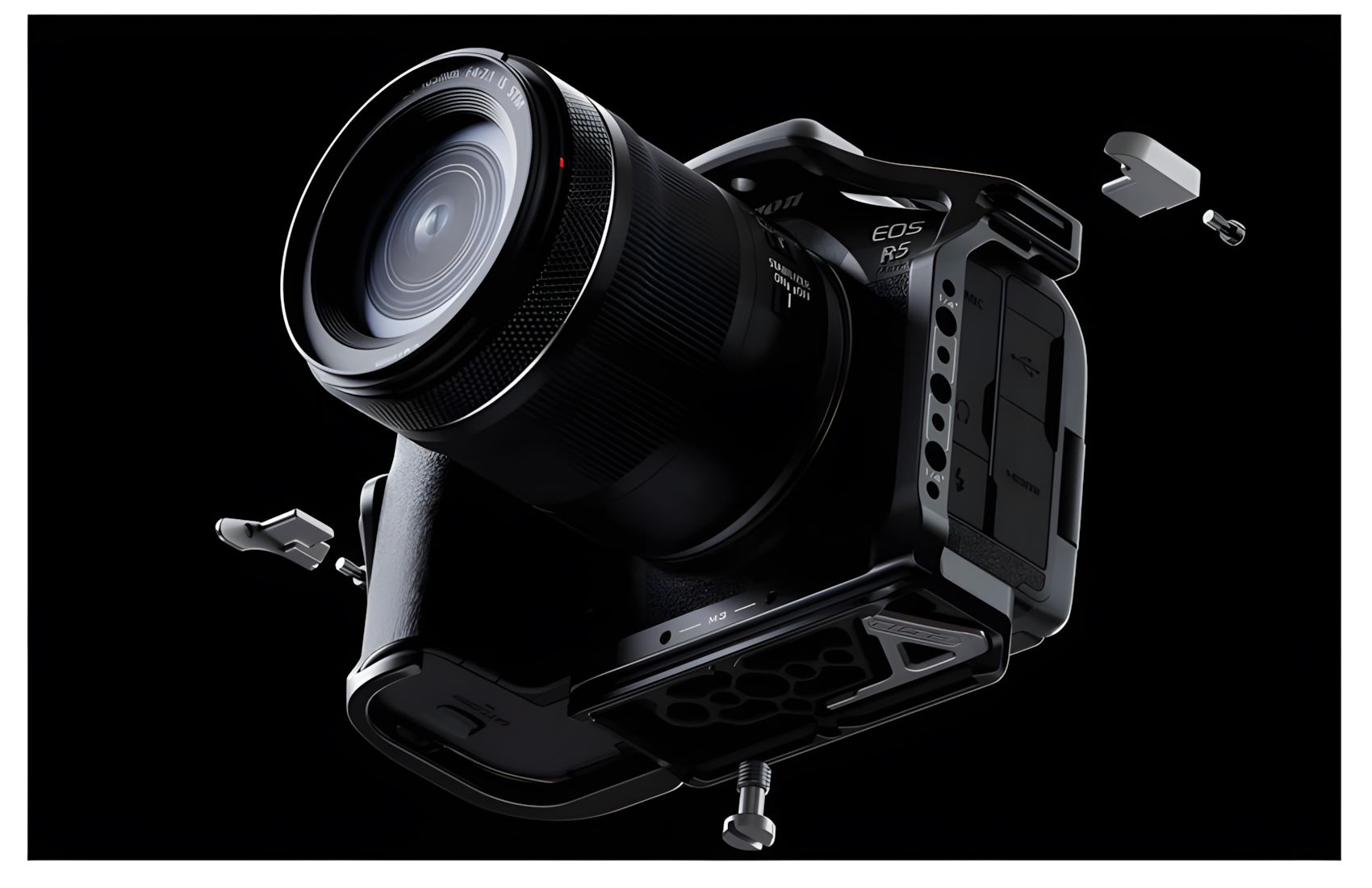

Triple Lock Security
Secured through screws at the bottom and both sides, forming a three-point locking system for stable and secure installation.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Type
-
Cage
Cage
Cage with Handle
Cage with Handle
GENERAL FEATURES
- KIT Includes
-
Cable Clamp
Cable Clamp
Handle
Handle
Removable Cage
Removable Cage
- Suitable for
-
Canon EOS R5 Mark II
Canon EOS R5 Mark II
- Handles
-
Yes, one upper handle
Yes, one upper handle
- Color
-
Black
Black
- Rods
-
No
No
- Material
-
Aluminum
Aluminum
- Camera Mount
-
1/4" Screw
1/4" Screw
- Tripod Mount
-
1/4" Thread
1/4" Thread
3/8" Thread
3/8" Thread
Arca Swiss
Arca Swiss
- Accessory Mount
-
1/4" Threads
1/4" Threads
3/8" Threads
3/8" Threads
Cold Shoe
Cold Shoe
Nato Rails
Nato Rails
MORE SPECIFICATIONS
- Extras
-
M3 Threads for Adapter Support.
Top handle with extra Cold shoe and Arri Standard Locating Thread.
- Country of Origin
-
China
China
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 25.4 x 17.8 x 89 cm
- Total Weight
- 320 gr
- Full Camera Cage for Canon R5 Mark II – Black（TA-T68-FCC-B)
- HDMI and USB-C Cable Clamp for Canon R5 Mark II (TA-T68-CC-B)
- Tilta Compact NATO Top Handle – Black（TA-QRTH7-B)
- 1/4″-20 Mounting Screw to NATO Rail Adapter（TA-1420-NTR4)
-
