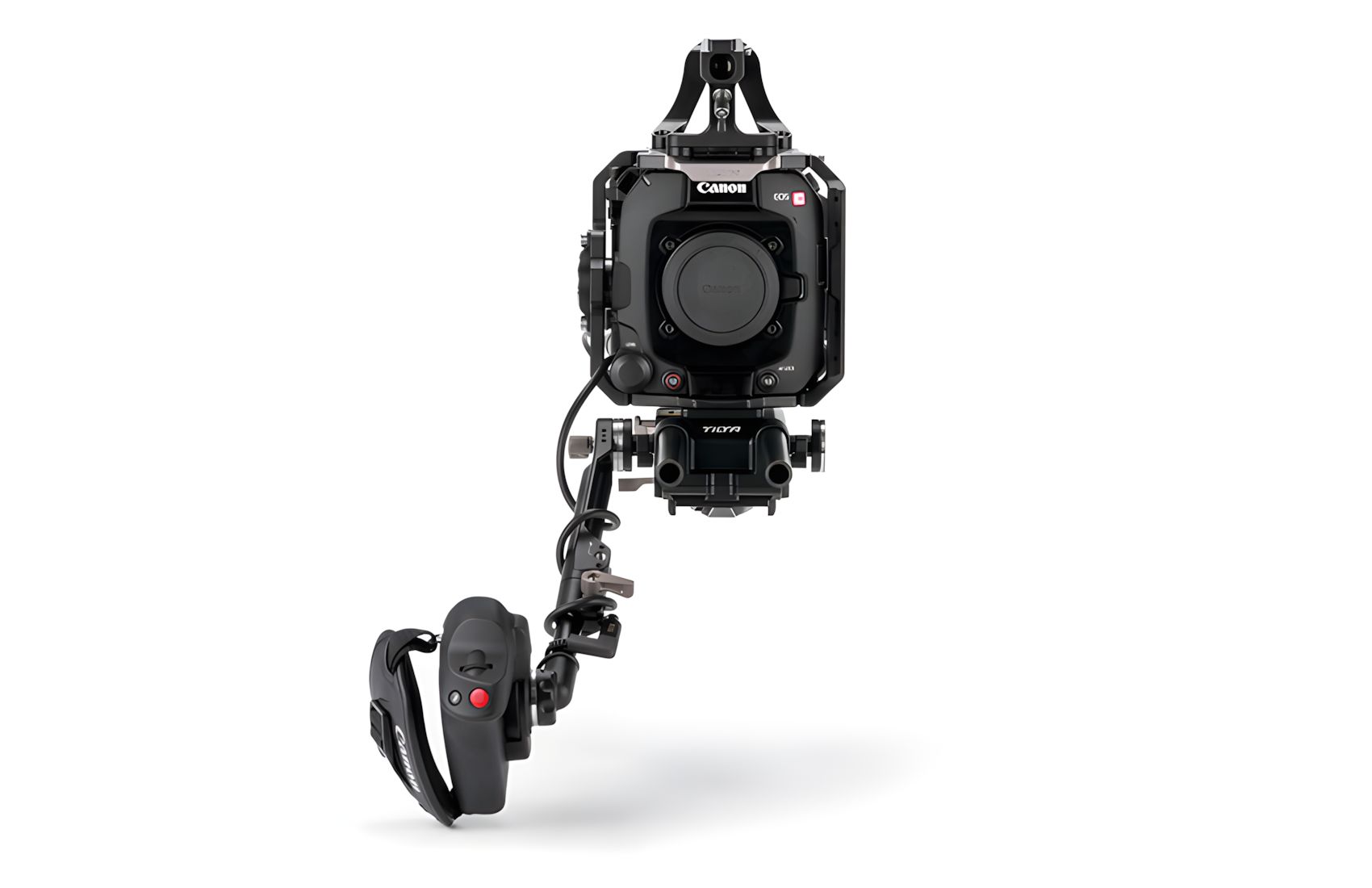

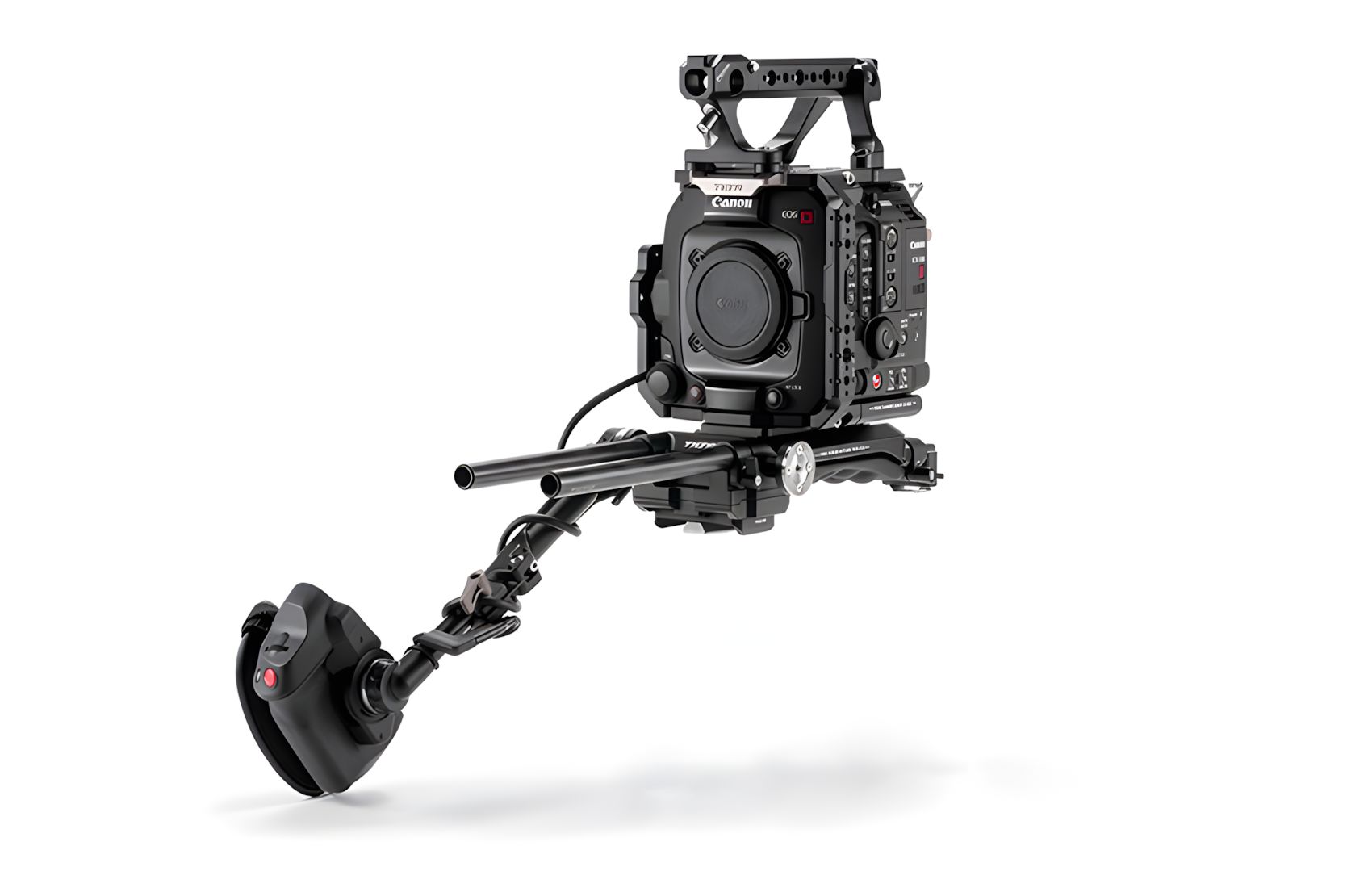

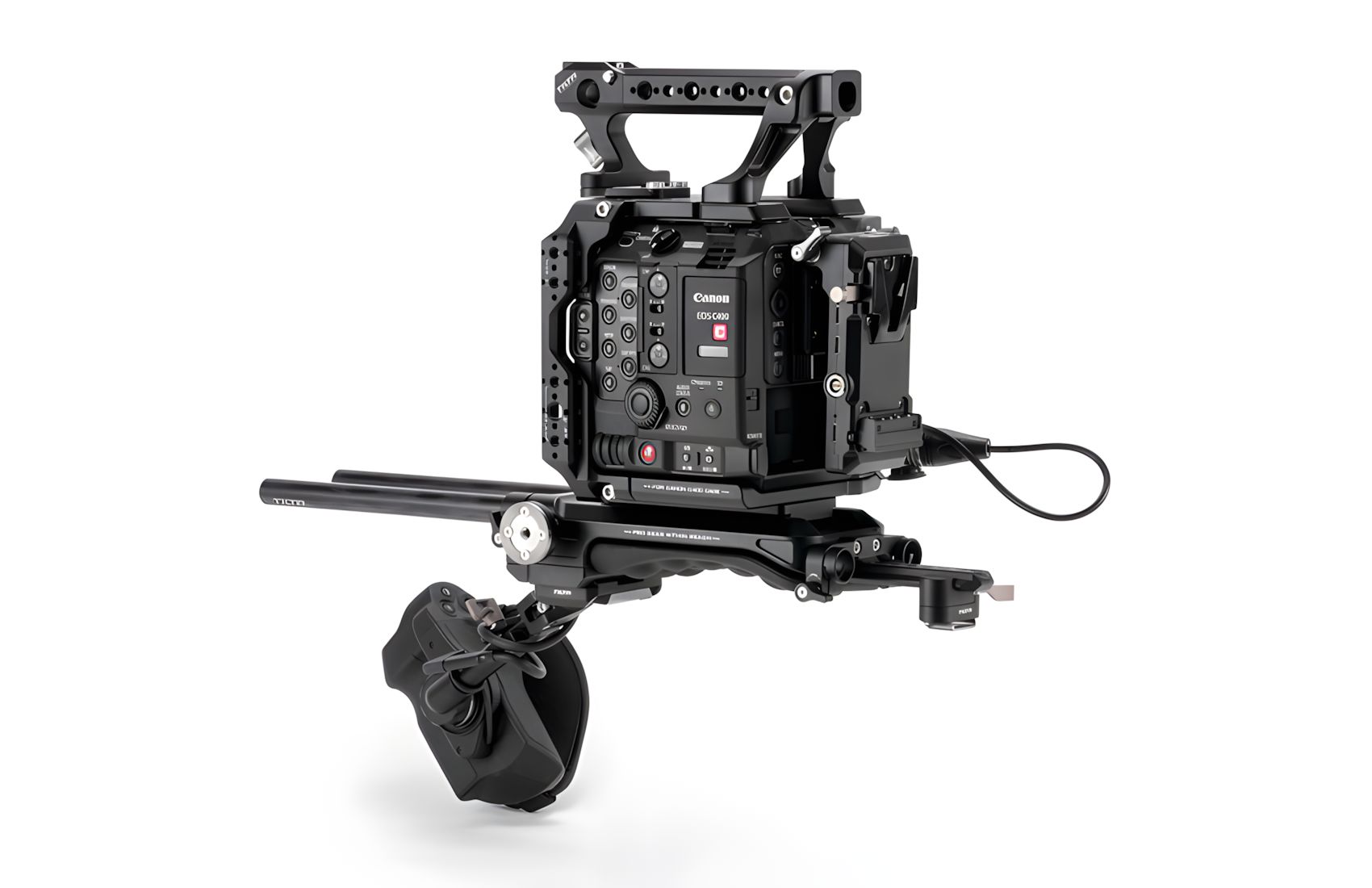

Tilta Cage
Aluminum Pro Kit for C400
MFR# ES-T22-C-V
in-Store Price: 616,51€ + VAT
Online Price: 591,85€ + VAT
- Cage Pro Kit
- For Canon C400
- V-Mount Battery Plate
- With Shoulder Rig
Features
Multiple locking points for secure protection
The components interlock seamlessly, ensuring a stable installation and protection for the camera body from bumps and scratches. The snug fit prevents any shifting or loosening
Modular Design
The kit includes a Top Plate, Left and Right Side Arms, Bottom Plate, and Multifunctional Back Plate. Each part is detachable and can be added or removed based on your needs.
Includes Battery Plate
Accessible design with PD input*/ External Battery. Hot Swappable between BP-U and V or Gold Mount batteries, ensures safe continuous shooting.
Multifunctional Top Handle
With the handle extension* installed, the top handle extends to a total length of 360mm, providing a comfortable grip and additional features mounting points.
Compatible with the original handle
Provides clearance for the original Canon top handle and ensures unobstructed access to all ports.
Shoulder Rig Configuration
Features a Shoulder Pad with Manfrotto Receiver. So users can quickly transition between tripod and shoulder rig via Manfrotto Quick Release Plate. Also compatible with VCT Style Plate and Tilta Dovetail.
Elevate your filmmaking experience with the Camera Cage for Canon C400 Pro Kit
This meticulously engineered cage provides protective armor for the camera body and allows users to secure different accessories to improve functionality and features multiple points of contact to prevent shifting during use.
Its modular design allows you to tailor your setup to suit your needs with versatile components, including a Top Plate, Left and Right Side Arms, Bottom Plate, and a Multifunctional Back Plate, all of which are detachable for quick adjustments.
The Multifunctional Back Plate is a great option for mounting lightweight battery plates such as our Mini V-Mount Battery Plate as well as other accessories. Mounting points on the Full Cage include: Arri Rosette, NATO Rail, 1/4″-20 and 3/8″-16 Threads, both with Locating Points.
The Multifunctional Top Handle provides a comfortable grip to handle and operate the camera while offering additional mounting points for accessories. Designed to provide clearance for the original Canon Top Handle, this kit includes an alternative top plate that can be used to provide the clearance needed for this handle.
This Sony VCT-U14 compatible Baseplate allows users to attach various accessories via 15mm LWS rods on the front of the baseplate and features an ergonomic shoulder pad so users can quickly transition between tripod and shoulder mounted configurations.
It also features Arri Rosettes, which can be used with the included Rosette Extension Arm and cable to mount the Canon C400’s Side Handle and have full access to its controls in a shoulder rig configuration.
The included Battery plate features USB-C PD input and outputs as well as P-Tap outputs and a 2 Pin output. The Plate has a swivel mount that allows users to easily access the camera’s on-board batteries which makes this a great option for hot swapping.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Type
-
Cage
Cage
Cage with Handle
Cage with Handle
GENERAL FEATURES
- KIT Includes
-
Baseplate
Baseplate
Battery Plate
Battery Plate
Rods
Rods
Handle
Handle
Quick Release Adapter
Quick Release Adapter
Removable Cage
Removable Cage
Top Plate
Top Plate
- Handles
-
Yes, one upper handle
Yes, one upper handle
- Color
-
Black
Black
- Material
-
Aluminum
Aluminum
Silicone
Silicone
- Quick Release
-
Yes
Yes
- Camera Mount
-
1/4" Screw
1/4" Screw
3/8" Screw
3/8" Screw
- Tripod Mount
-
Manfrotto Type Plate
Manfrotto Type Plate
- Accessory Mount
-
1/4" Threads
1/4" Threads
3/8" Threads
3/8" Threads
Nato Rails
Nato Rails
LWS Baseplate Mount
LWS Baseplate Mount
ARRI Rosette
ARRI Rosette
15mm Rod hole
15mm Rod hole
MORE SPECIFICATIONS
- Country of Origin
-
China
China
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 45.7 x 19 x 24.1 cm
- Total Weight
- 3.36 kg
- 1x Top Plate A&B for Canon C400
- 1x Evf Rod Locking Screw for Canon C400（12001.00143.00.00
- 1x Left Side Arm for Canon C400（32101.08703.00.00
- 1x Right Side Arm for Canon C400（with Arri Rosette ）（32101.08704.00.00)
- 1x Battery Plate for Canon C400 – V Mount（ES-T22-BP-V
- 1x Bottom Plate for Canon C400（32101.08705.00.00)
- 1x Top Handle Extension for RED V-RAPTOR（ESR-T08-TH)
- 1x Quick Release Shoulder Pad Baseplate for Canon C400（ES-T22-SPB)
- 1x Tilta 15mm Carbon Fiber Rod Set (20cm)（TA-15RS-20-CF)
- 1x Right Side Arm for Tilta Lightweight Shoulder Rig
- 1x USB-C Male to Female Extension Cable (50cm)（TCB-USM-USF-50)
- 1x Tilta Multi-Functional Mini Tool Kit – Black（TA-MMT-B)
-
