Vissonic Wireless

5G WiFi Access Point

MFR# VIS-AP4C BLK# 670-0001

in-Store Price: 488,25€ + VAT

Online Price: 468,72€ + VAT

Wireless 5G Access Point
5GHz dual band Communication
30m Typical Coverage Range
Can Connect Up to 50 Conference Units

1pc in stock
Immediate Shipping

A powerful 5G wifi access point, specially optimized for CLEACON wireless series products, providing stable performance for all the discussion units connecting.

5GHz dual band

White color modern design

3 CPU, 6 hidden antenna,256MB DDR, 1750Mbps transmission rate

Optional Desktop,ceiling, wall mount

Features

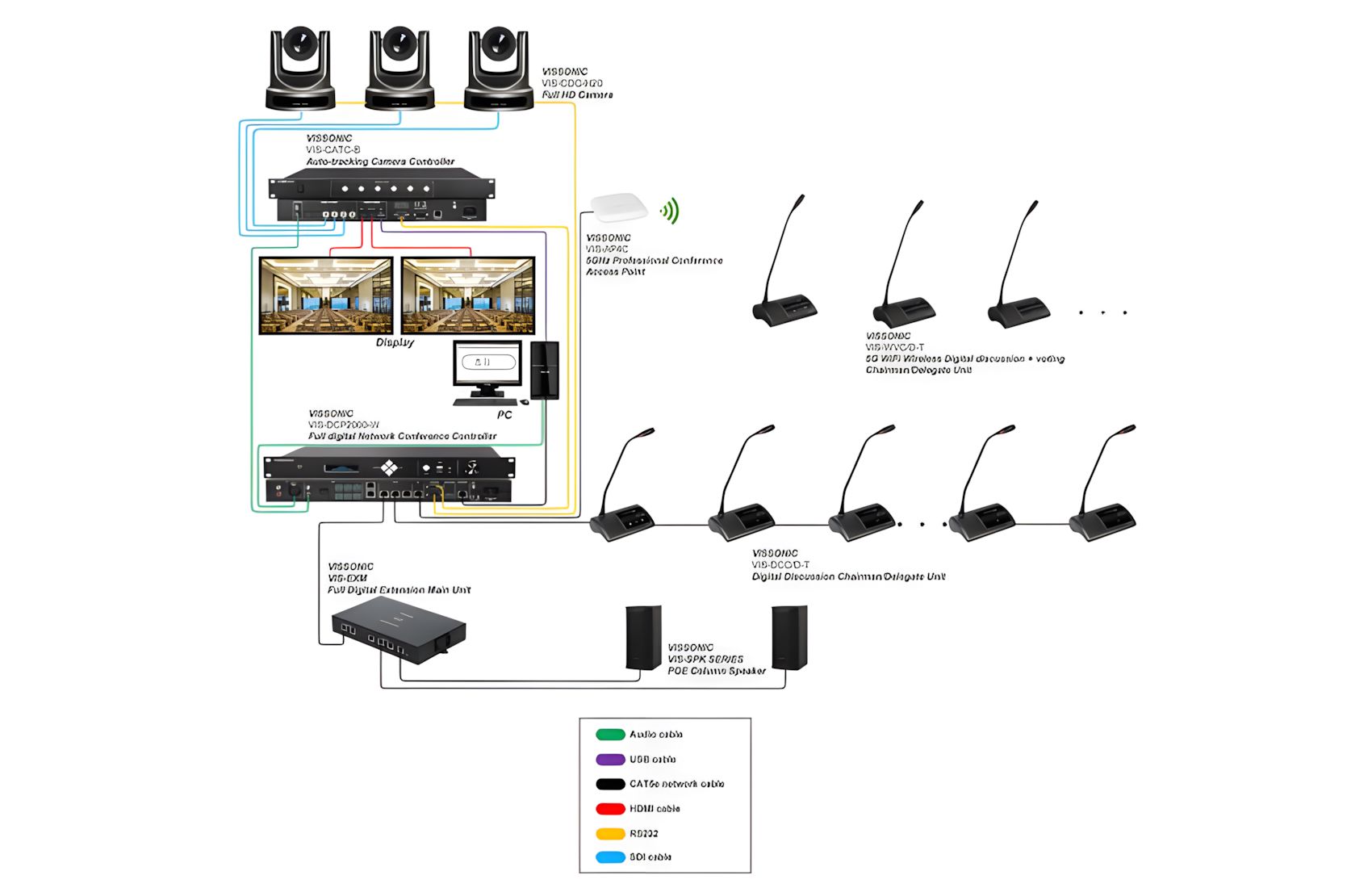

Connect with the Wi-fi conference processor VIS-DCP2000-W, or with the switch to extend more conference AP in the same system.
Typical coverage range 30m
Install on ceiling, wall or with stand rack mount
128 bits AES digital encryption technology, with WAP2 secure connection, MAC address filtering, SSID-hiding to prevent wiretapping and unauthorized access from delegate unit.

Functions

LED indicator for signal/power

5GHz dual band communication

LAN support POE power supply

RJ45 for LAN connection

Technical Parameters

RF
WLAN Standard: IEEE802.11ac, IEEE802.11a, IEEE802.11g, IEEE802.11bRF Frequency Bands 5GHz UNII
Max Transmission Power: 27dBm
Antenna Type: Four built-in 5dBi antennas

POWER
Supply Type Power Over Ethernet, 802.3at, DC 12V 1.5A
Supply Voltage(at Power Consumption) ≤13W

NETWORK
Interface 1×Gigabit WAN/POE Port, 1×Gigabit LAN Port
Link Speed 1200Mbps
Networking Addressing Capability DHCP or Manual IP address
Cable Length 100m (max)
Cable Type ≥ Cat5e (shielded / unshielded)
Connector Type 1× RJ45
Connector LED WAN/POE Port (UP LED), LAN Port (Down LED)

USER INTERFACE
LED Status Indication Power, Network Audio, Wireless (Yellow / Blue)
Reset Push button for Factory Reset

MECHANICAL
Dimensions 220L×220W×45H(mm)
Color White
Weight 0.3KG
Mounting Type Ceiling, Wall or Stand Rack

Model for Order：

VIS-AP4C.................. 5GHz Conference Access Point (White)

Source: https://www.vissonic.com/products/vis-ap4c.html

STATUS

Status: New
Availability: Available on order: 15 Business Days
Type of Wireless: 5G WiFi Access Point

CONNECTIONS

Other Connections: Ethernet RJ45

WIRELESS FEATURES

Range: 30m line of sight
Wireless Frequency: 5GHz UNII (RF Frequency Bands).

MORE SPECIFICATIONS

Extras: Four built-in 5dBi antennas.
Max Transmission Power: 27dBm.
30m Typical Coverage Range.
1×Gigabit WAN/POE Port, 1×Gigabit LAN Port.
Mounting: Ceiling, Wall or Stand Rack.
WLAN Standard: IEEE802.11ac, IEEE802.11a, IEEE802.11g, IEEE802.11b.
Power: DC input 12V
Powered through ethernet cable (PoE)
Power Consumption: Supply Voltage (at Power Consumption): ≤13W
Country of Origin: China
Warranty: 1 Year
